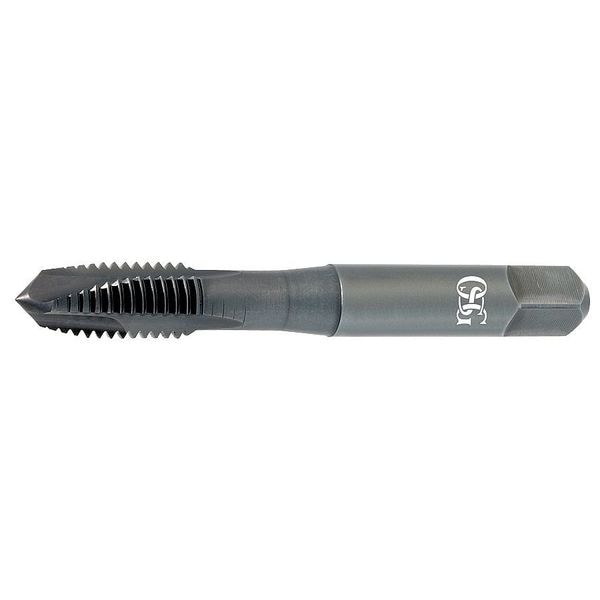

Spiral Point Tap Plug, 3 Flutes
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 9.3 mm |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Point |
| Tap Size | M12 |
| Tap Chamfer | Plug |
| Tap Dimension Type | Metric |
| Overall Length | 86 mm |
| Number of Flutes | 3 |
| Thread Length | 42 mm |
| Thread Direction | Right Hand |
| Tap Thread Size | M12-1.25 |
| Tap Thread Type | Metric |
| Standards | ANSI |
| Tap Finish | Bright |
| Tap Grouping | Tap |
| Cutting Direction - Machining | Right Hand |
| Series | 289 |
| Thread Standard | Metric Fine |
| Drill Bit Size | 10.78 mm, 10.86 mm, 10.94 mm, 11.03 mm, 10.70 mm |
| Shank Length | 53 mm |
| 75% Thread Drill Size | 10.78 mm |
| Secondary Material Application | Titanium, Nickel, Cast Iron, Stainless Steel, Steel |
| Square Size | 6.98 mm |
| Thread Limit | D5 |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application | Steel |
| Spiral Direction | Neutral |
| Shank Type - Machining | Straight |
| Extended Neck | Yes |
| Secondary Material Application ISO Code | P, M, K, S3 |
| Thread Size | M12x1.25 |
| 65% Thread Drill Size | 10.94 mm |
| Primary Material Application ISO Code | P |
| Thread Pitch | 1.25 mm |
| Measurement System | Metric |
| Class of Fit | 6H |
| Helix Angle | 0 deg |
| Size | M12 |
| Number of Pieces | 1 |
| Pitch Diameter Limit | D11 |
| List Number | 289 |
| Package Quantity | 1 |
