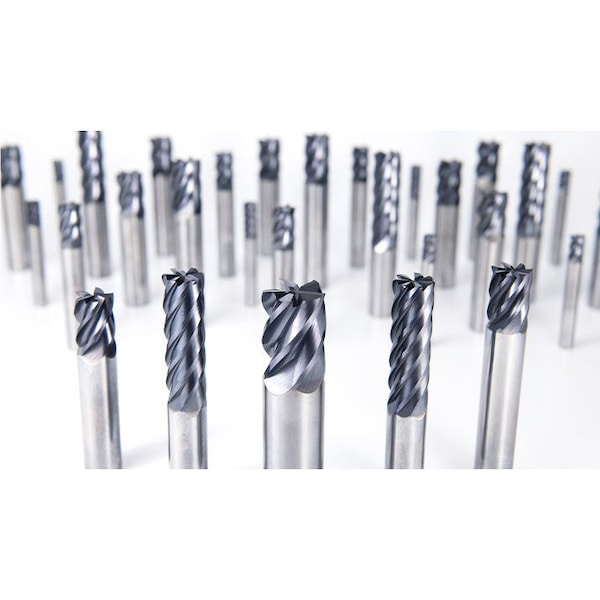

Square End Carbide End Mills
| Number of Flutes | 7 |
|---|---|
| Length of Cut | 1 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Non-Center Cutting |
| Shank Dia. | 1/2 in |
| Overall Length | 3 in |
| Neck Length | Not Applicable |
| Milling Dia. | 1/2 in |
| Corner Radius | Not Applicable |
| Neck Dia. | Not Applicable |
| Series | VGM7 |
| End Mill Application | Finishing |
| Chamfer Width | Not Applicable |
| Item | Square End Mill |
| List Number | VGM7 |
| End Mill Style | Square |
| Helix Angle | 36 deg |
| Secondary Material Application ISO Code | H |
| Primary Material Application | Cast Iron, Hardened Steel, Heat-Resistant Alloy, Stainless Steel, Steel |
| Measurement System | Fractional Inch |
| Material Grade - Machining | High Performance |
| Drilling Tool Configuration | Individual |
| Coolant Fed | Non-Coolant Through |
| Secondary Material Application | Hardened Steel |
| Material - Machining | Carbide |
| Flute Type | Helical |
| Finish - Machining | EXO |
| Primary Material Application ISO Code | P, K, M, H, S |
| Max. Helix Angle | 36 deg |
| Shank Type - Machining | Shrink Fit |
| For Material Hardness | 0 to 45 HRC |
| Number of Coolant Holes | 0 |
| Package Quantity | 1 |
