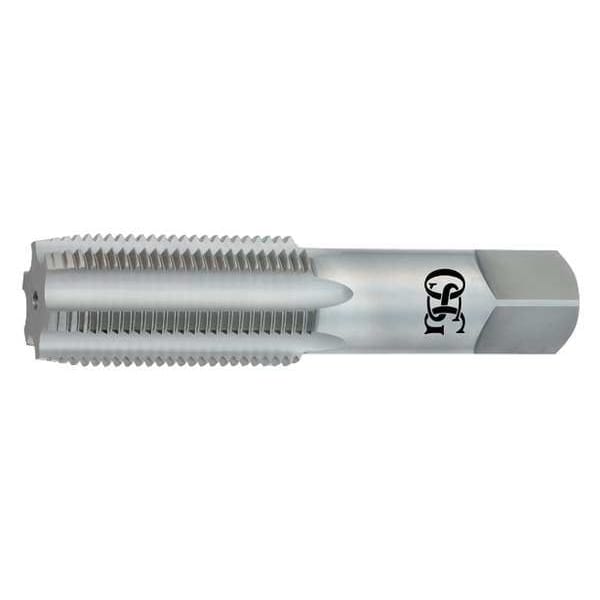

Straight Flute Hand Tap, 1-3/4"-8, Plug, 6 Flutes, UNF
| Item | Straight Flute Hand Tap |
|---|---|
| Tap Thread Size | 1-3/4"-8 |
| Tap Chamfer | Plug |
| Number of Flutes | 6 |
| Tap Thread Type | UNF |
| List Number | 180 |
| Tap Finish | Bright |
| Tap Grouping | Tap |
| Shank Dia. | 1.430" |
| Pitch Diameter Limit | H6 |
| Tap Style | Straight Flute |
| Tap Material | High Speed Steel |
| Thread Direction | Right Hand |
| Number of Pieces | 1 |
| Thread Length | 3-3/16 in |
| Tap Size | 1-3/4" |
| Tap Dimension Type | Inch |
| Overall Length | 7 in |
| Cutting Direction - Machining | Right Hand |
| Series | 180 |
| Spiral Direction | Neutral |
| Primary Material Application | All Materials |
| Thread Size | 1 3/4"-8 |
| Shank Length | 3-13/32 in |
| Measurement System | Fractional Inch |
| Secondary Material Application ISO Code | K, P, N |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Threads per Inch | 8 |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application ISO Code | N, K, P, O, H, M, S |
| Extended Neck | Yes |
| Shank Type - Machining | Straight |
| Thread Limit | H6 |
| Square Size | 1.072 in |
| 65% Thread Drill Size | 1.6445 in |
| Thread Standard | UNS |
| 75% Thread Drill Size | 1.6282 in |
| Helix Angle | 0 deg |
| Size | 1-3/4" |
| Package Quantity | 1 |
