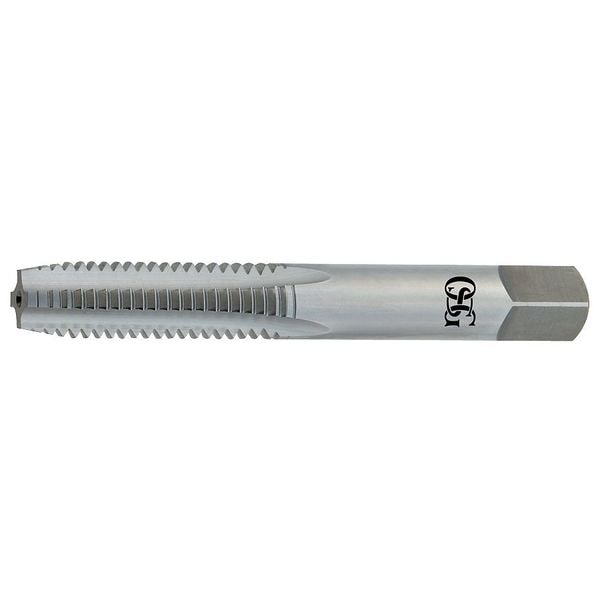

Straight Flute Hand Tap, Bottoming, 3
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.22 in |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | #8 |
| Tap Style | Straight Flute |
| Overall Length | 2-3/8 in |
| Number of Flutes | 3 |
| List Number | 126 |
| Pitch Diameter Limit | H2 |
| Tap Grouping | STI Tap |
| Tap Thread Size | #8-32 |
| Thread Length | 15/16 in |
| Thread Direction | Right Hand |
| Tap Finish | Bright |
| Tap Thread Type | UNC |
| Number of Pieces | 1 |
| Cutting Direction - Machining | Right Hand |
| Series | 126 |
| Secondary Material Application ISO Code | K, N, P |
| Measurement System | Pipe |
| Thread Size | #8-32 |
| Thread Standard | UNC |
| Thread Limit | H2 |
| Shank Type - Machining | Straight |
| 55% Thread Drill Size | 3.6 mm |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Shank Length | 1-11/32 in |
| Material Grade - Machining | 126 |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application | All Materials |
| Threads per Inch | 32 |
| Extended Neck | No |
| Primary Material Application ISO Code | N, P, K, M, O, H, S |
| 75% Thread Drill Size | 3.4 mm |
| Spiral Direction | Neutral |
| Square Size | 0.164 in |
| 65% Thread Drill Size | 3.5 mm |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
