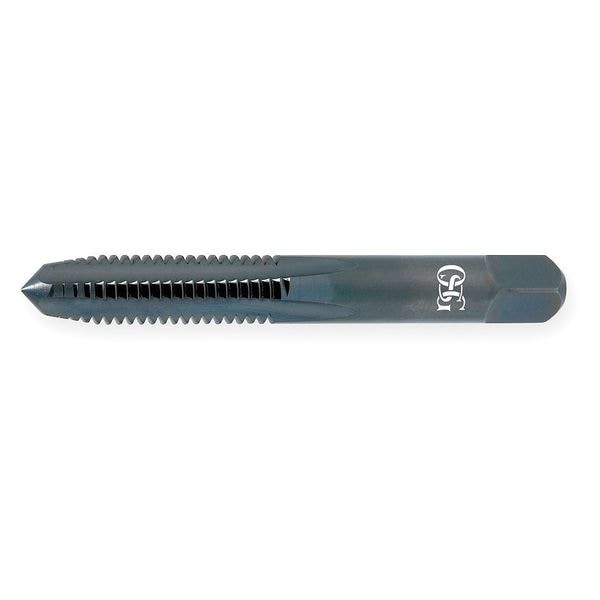

Straight Flute Hand Tap, Bottoming, 3 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.141 in |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | #6 |
| Tap Style | Straight Flute |
| Overall Length | 2 in |
| Number of Flutes | 3 |
| Thread Direction | Right Hand |
| Tap Thread Type | UNC |
| List Number | 102 |
| Pitch Diameter Limit | H3 |
| Tap Thread Size | #6-32 |
| Standards | ANSI |
| Number of Pieces | 1 |
| Tap Grouping | Tap |
| Tap Finish | Bright |
| Thread Length | 11/16 in |
| Cutting Direction - Machining | Right Hand |
| Series | 102 |
| Thread Size | #6-32 |
| Primary Material Application ISO Code | N, P, K, M, O, H, S |
| Thread Standard | UNC |
| 75% Thread Drill Size | #36 |
| Coolant Fed | Non-Coolant Through |
| Threads per Inch | 32 |
| Tap Length Standard | ANSI |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Thread Limit | H3 |
| Spiral Direction | Neutral |
| Extended Neck | Yes |
| Shank Type - Machining | Straight |
| Shank Length | 1-3/16 in |
| Primary Material Application | All Materials |
| Secondary Material Application ISO Code | K, N, P |
| Square Size | 0.109 in |
| Measurement System | Pipe |
| 55% Thread Drill Size | #32 |
| 65% Thread Drill Size | #34 |
| Tap Shank Standard | ANSI |
| Helix Angle | 0 Degrees |
| Size | #6 |
| Package Quantity | 1 |
