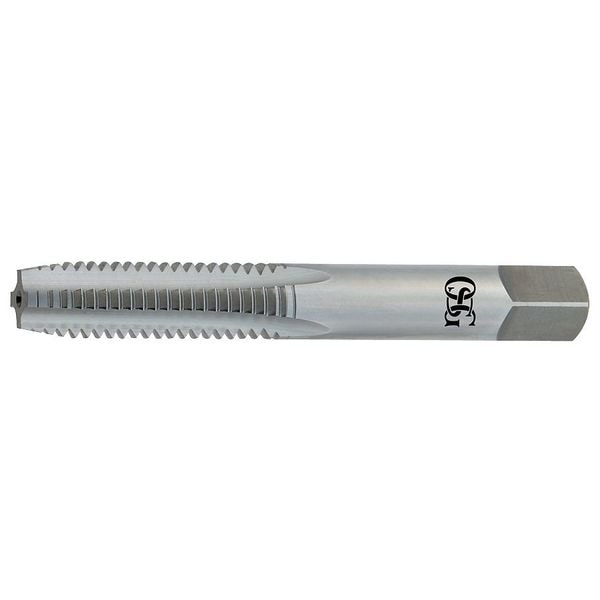

Straight Flute Hand Tap Bottoming, 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.367 in |
| Tap Material | High Speed Steel |
| Tap Chamfer | Bottoming |
| Tap Size | 3/8" |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Number of Flutes | 4 |
| Overall Length | 3-3/8 in |
| Thread Direction | Right Hand |
| Tap Thread Type | UNC |
| List Number | 126 |
| Thread Length | 1-21/32 in |
| Pitch Diameter Limit | H4 |
| Tap Finish | Bright |
| Tap Grouping | STI Tap |
| Number of Pieces | 1 |
| Tap Thread Size | 3/8"-16 |
| Cutting Direction - Machining | Right Hand |
| Series | 126 |
| 75% Thread Drill Size | 5/16 in |
| Primary Material Application | All Materials |
| Shank Type - Machining | Straight |
| Coolant Fed | Non-Coolant Through |
| Square Size | 0.274 in |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Secondary Material Application ISO Code | K, N, P |
| Thread Size | 3/8"-16 |
| 55% Thread Drill Size | 8.4 mm |
| Thread Limit | H4 |
| Shank Length | 1-35/64 in |
| Threads per Inch | 16 |
| Material Grade - Machining | 126 |
| Spiral Direction | Neutral |
| Extended Neck | Yes |
| Thread Standard | UNC |
| 65% Thread Drill Size | P |
| Measurement System | Fractional Inch |
| Features | Hss Material: Increased Wear Resistance, Straight Flute: For Through Or Blind Holes And Short Chipping Materials, Screw Thread Insert (Sti) Tap: Repair Stripped Threaded Holes |
| Primary Material Application ISO Code | K, N, P, M, O, H, S |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
