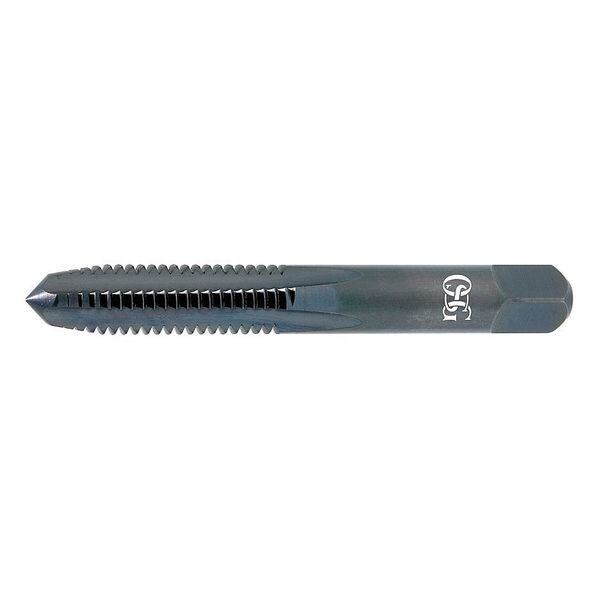

Straight Flute Hand Tap, Bottoming 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 3.93 mm |
| Tap Material | High Speed Steel |
| Tap Chamfer | Bottoming |
| Tap Size | M5 |
| Tap Style | Straight Flute |
| Tap Dimension Type | Metric |
| Number of Flutes | 4 |
| Overall Length | 60 mm |
| Thread Direction | Right Hand |
| Tap Grouping | Tap |
| Tap Thread Size | M5-0.80 |
| Standards | ANSI |
| Number of Pieces | 1 |
| Thread Length | 22 mm |
| Tap Thread Type | Metric Coarse |
| Tap Finish | Oxide |
| List Number | 141 |
| Pitch Diameter Limit | D4 |
| Cutting Direction - Machining | Right Hand |
| Series | 141 |
| Thread Size | M5x0.8 |
| 65% Thread Drill Size | 4.3 mm |
| Shank Type - Machining | Straight |
| Tap Shank Standard | ANSI |
| Primary Material Application | All Materials |
| Shank Length | 33 mm |
| Extended Neck | Yes |
| Secondary Material Application ISO Code | K, N, P |
| Spiral Direction | Neutral |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Coolant Fed | Non-Coolant Through |
| Thread Standard | Metric Coarse |
| 75% Thread Drill Size | 4.2 mm |
| Square Size | 3.86 mm |
| Thread Pitch | 0.8 mm |
| Tap Length Standard | ANSI |
| Thread Limit | D4 |
| Measurement System | Metric |
| 55% Thread Drill Size | 4.4 mm |
| Primary Material Application ISO Code | K, N, P, M, O, H, S |
| Helix Angle | 0 Degrees |
| Size | M5 |
| Package Quantity | 1 |
