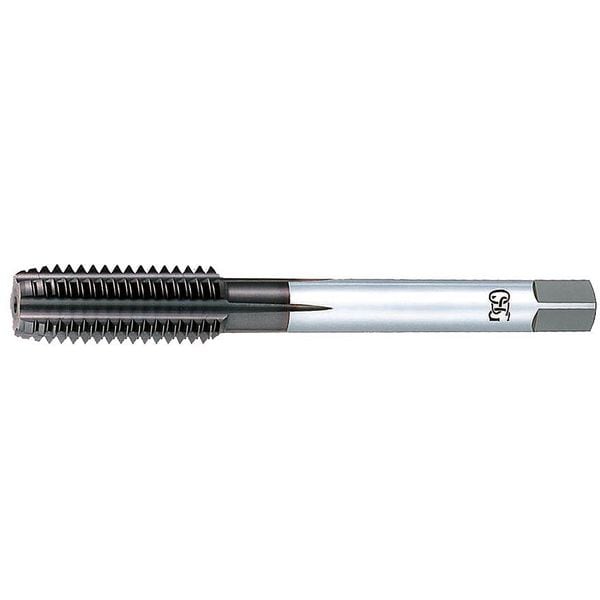

Straight Flute Hand Tap, M8-1.25, Modified Bottoming, 5 Flutes, Metric Coarse
| Item | Straight Flute Hand Tap |
|---|---|
| Tap Thread Size | M8-1.25 |
| Tap Chamfer | Modified Bottoming |
| Number of Flutes | 5 |
| Tap Thread Type | Metric Coarse |
| List Number | 341 |
| Tap Size | M8 |
| Tap Style | Straight Flute |
| Thread Length | 30 mm |
| Tap Material | High Speed Steel |
| Tap Finish | TICN |
| Pitch Diameter Limit | Not Rated |
| Overall Length | 70 mm |
| Shank Dia. | 6.20mm |
| Thread Direction | Right Hand |
| Tap Dimension Type | Metric |
| Number of Pieces | 1 |
| Tap Grouping | Tap |
| Cutting Direction - Machining | Right Hand |
| Series | 341 |
| Shank Length | 48 mm |
| Thread Pitch | 1.25 mm |
| Shank Type - Machining | Straight |
| Tap Length Standard | JIS |
| Primary Material Application | Hardened Steel |
| Thread Standard | Metric Coarse |
| Coolant Fed | Non-Coolant Through |
| 55% Thread Drill Size | 7.1 mm |
| 75% Thread Drill Size | H |
| Tap Shank Standard | JIS |
| Primary Material Application ISO Code | H |
| Thread Size | M8x1.25 |
| Measurement System | Metric |
| Extended Neck | Yes |
| Square Size | 5 mm |
| Spiral Direction | Neutral |
| Thread Limit | OH3 |
| 65% Thread Drill Size | I |
| Helix Angle | 0 deg |
| Size | M8 |
| Package Quantity | 1 |
