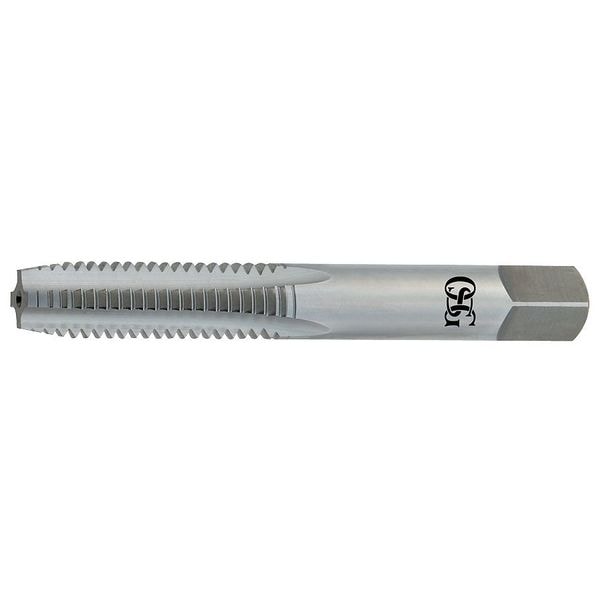

Straight Flute Hand Tap Modified Bottoming, 3 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 12 mm |
| Tap Material | High Speed Steel |
| Tap Chamfer | Bottoming |
| Tap Size | M12 |
| Tap Style | Straight Flute |
| Tap Dimension Type | Metric |
| Number of Flutes | 3 |
| Overall Length | 97 mm |
| Thread Direction | Right Hand |
| Tap Finish | Bright |
| Pitch Diameter Limit | D4 |
| Thread Length | 46 mm |
| Tap Thread Size | M12-1.75 |
| List Number | 128 |
| Tap Grouping | STI Tap |
| Tap Thread Type | Metric Coarse |
| Number of Pieces | 1 |
| Cutting Direction - Machining | Right Hand |
| Series | 128 |
| Shank Length | 41 mm |
| Primary Material Application ISO Code | K, N, P, M, O, H, S |
| 55% Thread Drill Size | 27/64 in |
| Square Size | 8.18 mm |
| Spiral Direction | Neutral |
| Thread Size | M12x1.75 |
| Primary Material Application | All Materials |
| Secondary Material Application ISO Code | K, N, P |
| 75% Thread Drill Size | 10.3 mm |
| Coolant Fed | Non-Coolant Through |
| Thread Limit | D4 |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Extended Neck | Yes |
| Thread Standard | Metric Coarse |
| Shank Type - Machining | Straight |
| 65% Thread Drill Size | 10.5 mm |
| Material Grade - Machining | 128 |
| Measurement System | Metric |
| Features | Increased Wear Resistance, Modified Bottom, Screw Thread Insert (STI) Tap, Straight Flute |
| Thread Pitch | 1.75 mm |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
