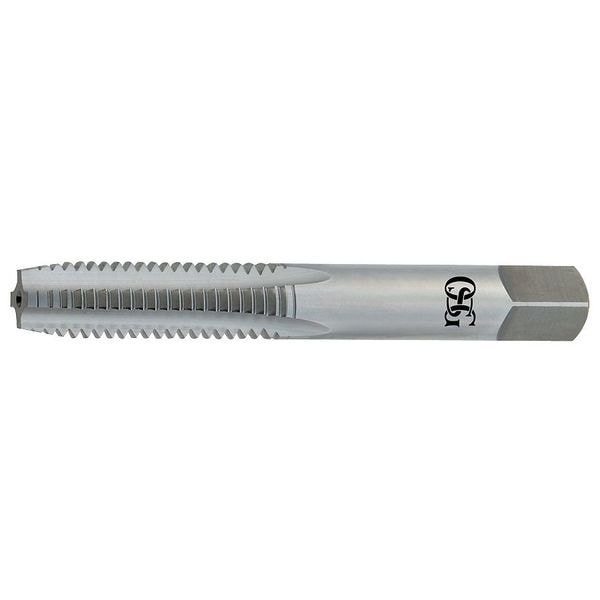

Straight Flute Hand Tap, Plug 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 1.021 in |
| Tap Material | High Speed Steel |
| Tap Chamfer | Plug |
| Tap Size | 1" |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Number of Flutes | 4 |
| Overall Length | 5-3/4 in |
| Thread Direction | Right Hand |
| Tap Finish | Bright |
| Number of Pieces | 1 |
| Thread Length | 2-9/16 in |
| Tap Thread Size | 1"-12 |
| Tap Thread Type | UNF |
| Tap Grouping | STI Tap |
| List Number | 126 |
| Pitch Diameter Limit | H4 |
| Cutting Direction - Machining | Right Hand |
| Series | 126 |
| Features | Hss Material: Increased Wear Resistance, Straight Flute: For Through Or Blind Holes And Short Chipping Materials, Screw Thread Insert (Sti) Tap: Repair Stripped Threaded Holes |
| Shank Type - Machining | Straight |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Material Grade - Machining | 126 |
| 55% Thread Drill Size | 15/16 in |
| Primary Material Application | All Materials |
| 75% Thread Drill Size | 23.3 mm |
| Thread Size | 1"-12 |
| Spiral Direction | Neutral |
| Primary Material Application ISO Code | K, N, P, M, O, H, S |
| Thread Limit | H4 |
| Coolant Fed | Non-Coolant Through |
| Thread Standard | UNF |
| 65% Thread Drill Size | 23.6 mm |
| Extended Neck | Yes |
| Measurement System | Fractional Inch |
| Shank Length | 2-11/32 in |
| Square Size | 0.672 in |
| Secondary Material Application ISO Code | K, N, P |
| Threads per Inch | 12 |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
