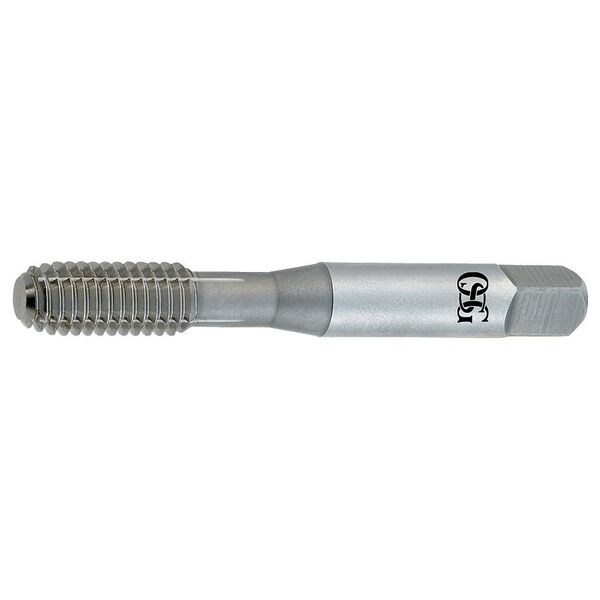

Thread Forming Tap, #3-48, Bottoming, TiCN, 0 Flutes
| Item | Thread Forming Tap |
|---|---|
| Tap Thread Size | #3-48 |
| Tap Chamfer | Bottoming |
| Tap Finish | TiCN |
| Number of Flutes | 0 |
| Tap Thread Type | UNC |
| Pitch Diameter Limit | Not Rated |
| Tap Material | High Speed Steel |
| Thread Length | 1/2 in |
| Tap Dimension Type | Inch |
| Overall Length | 1-13/16 in |
| Tap Size | #3 |
| Thread Direction | Right Hand |
| Tap Style | Thread Forming |
| Number of Pieces | 1 |
| Standards | ANSI |
| Shank Dia. | 0.141 in |
| List Number | CEM316R4030 |
| Tap Grouping | Tap |
| Cutting Direction - Machining | Right Hand |
| Series | 285 |
| 55% Thread Drill Size | 2.12 mm |
| Threads per Inch | 48 |
| Square Size | 0.11 in |
| Extended Neck | No |
| Shank Length | 1-5/16 in |
| Material Grade - Machining | TiN |
| Class of Fit | 2B |
| Thread Size | #3-48 |
| Secondary Material Application ISO Code | P |
| Primary Material Application | Brass, Copper, Bronze, Aluminum, Steel |
| 65% Thread Drill Size | #46 |
| Thread Standard | UNC |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application ISO Code | P, N |
| 75% Thread Drill Size | 2 mm |
| Spiral Direction | Neutral |
| Secondary Material Application | Steel |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
