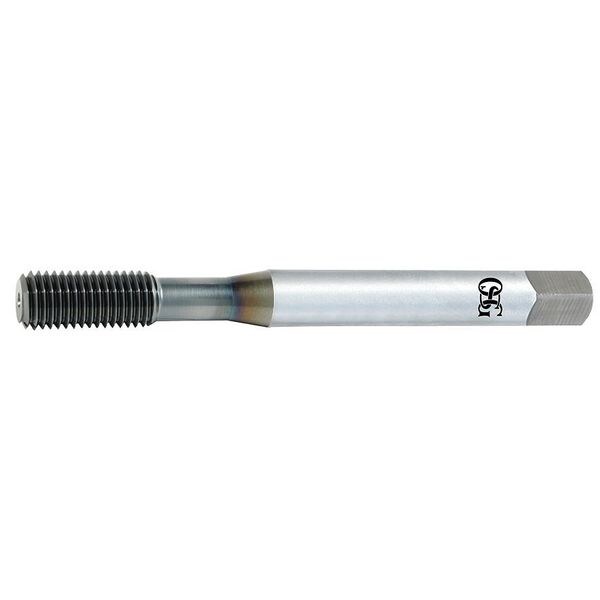

Thread Forming Tap, M3-0.50, Bottoming, TiCN, 0 Flutes
| Item | Thread Forming Tap |
|---|---|
| Tap Thread Size | M3-0.50 |
| Tap Chamfer | Bottoming |
| Tap Finish | TiCN |
| Number of Flutes | 0 |
| Thread Direction | Right Hand |
| Tap Material | Powdered Metal |
| Tap Size | M3 |
| Number of Pieces | 1 |
| Overall Length | 49 mm |
| Tap Grouping | Tap |
| Pitch Diameter Limit | D3 |
| Thread Length | 16 mm |
| Shank Dia. | 3.58 mm |
| Standards | ANSI |
| Tap Style | Thread Forming |
| List Number | 14150 |
| Tap Dimension Type | Metric |
| Tap Thread Type | Metric Coarse |
| Cutting Direction - Machining | Right Hand |
| Series | 14150 |
| Thread Pitch | 0.5 mm |
| Features | Performance Form Taps for Materials Less Than 32Rc |
| 55% Thread Drill Size | 2.8 mm |
| 75% Thread Drill Size | 2.75 mm |
| Primary Material Application ISO Code | P, N, M, K |
| Thread Size | M3x0.5 |
| Thread Limit | D3 |
| Square Size | 2.79 mm |
| Coolant Fed | Non-Coolant Through |
| Extended Neck | No |
| Material Grade - Machining | 14150 |
| 65% Thread Drill Size | 7/64 in |
| Thread Standard | Metric Coarse |
| Shank Length | 32.8 mm |
| Secondary Material Application | Hardened Steel, Stainless Steel |
| Spiral Direction | Neutral |
| Primary Material Application | Brass, Copper, Bronze, Aluminum, Stainless Steel, Steel, Cast Iron |
| Secondary Material Application ISO Code | H, M |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
