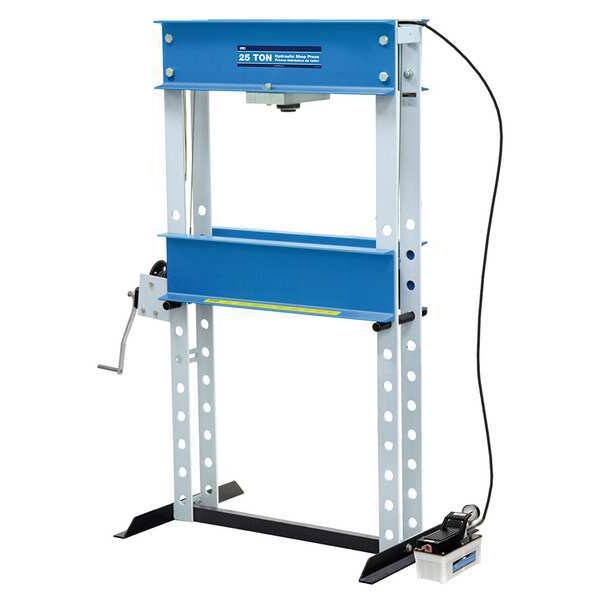

Hydraulic Press, 25 t, Air Pump, 69-1/2 In
| Frame Capacity | 25 ton |
|---|---|
| Frame Type | H-Frame |
| Cylinder Stroke | 6-1/4 in |
| Pump Type | Air |
| Base Length | 40-1/2 in |
| Base Width | 28 in |
| Overall Height | 72-1/2 in |
| Hose Length | 8 ft |
| Application | Pressing Bearings |
| Ram Travel | 16 in |
| Pump | Mfr. No. 4020 |
| Item | Hydraulic Press |
| Includes | 24815 Tee, 4020 Hydraulic Pump, 9652 Gauge, 9768 1/4 in ID x 8 in Hose, Hydraulic Ram with 6 1/4 in Stroke |
| Features | Large 30 in x 46 in Work Area Under Ram; Press Bed Easily Raised and Lowered by a Lifting Mechanism |
| Cylinder Type | Single Acting |
| Stroke | 6-1/4 in |
| Pressure | 25 tons |
| For Use With | Cars and Trucks |
| Overall Length | 21 in |
| Overall Width | 18-1/2 in |
| Voltage | Not Applicable |
| Overall Depth | 21 in |
| Operating Pressure | 25 Tonf |
| Phase | Not Applicable |
| Pump Model Number | 4020 |
| Capacity | 25 ton |
| Current | Not Applicable |
| Operation | Air |
| Motor Speed - Maximum | Not Applicable |
| Press Bed Width | 30 in |
| Ram-to-Table Distance - Maximum | 46 in |
| Hydraulic Hose Length | 8 ft |
| Ram-to-Table Distance - Minimum | 5-3/4 in |
| Press Bed Depth | 6-1/2 in |
| Base Depth | 40-1/2 in |
| Horsepower | Not Applicable |
| Package Quantity | 1 |
