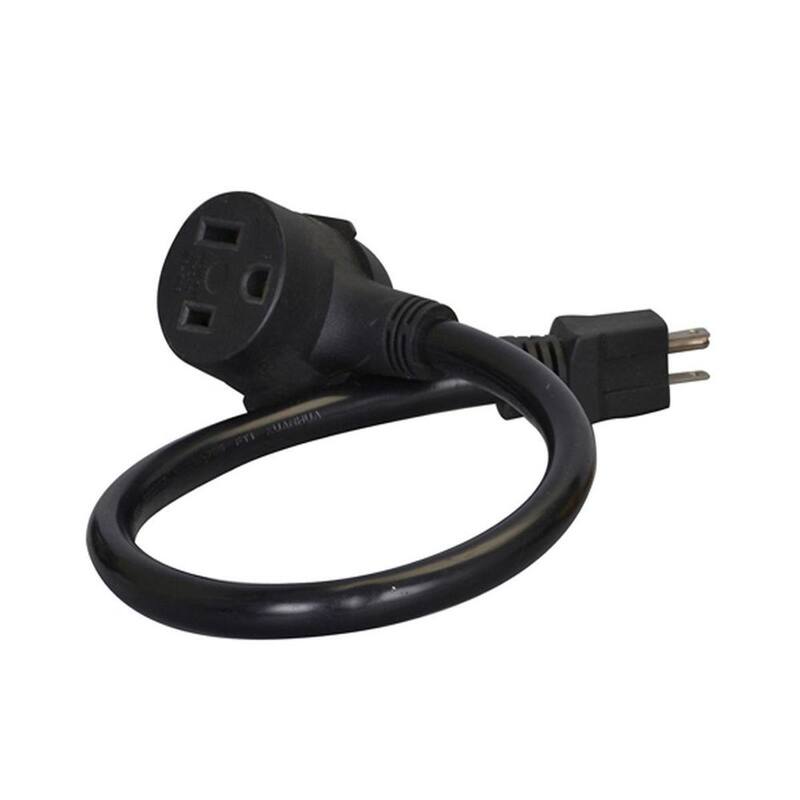

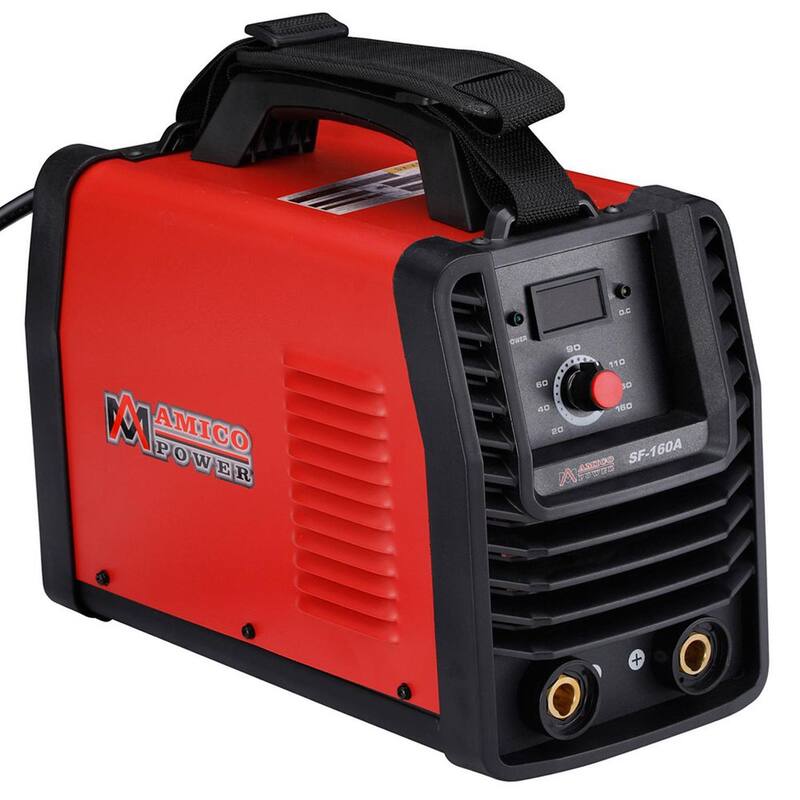

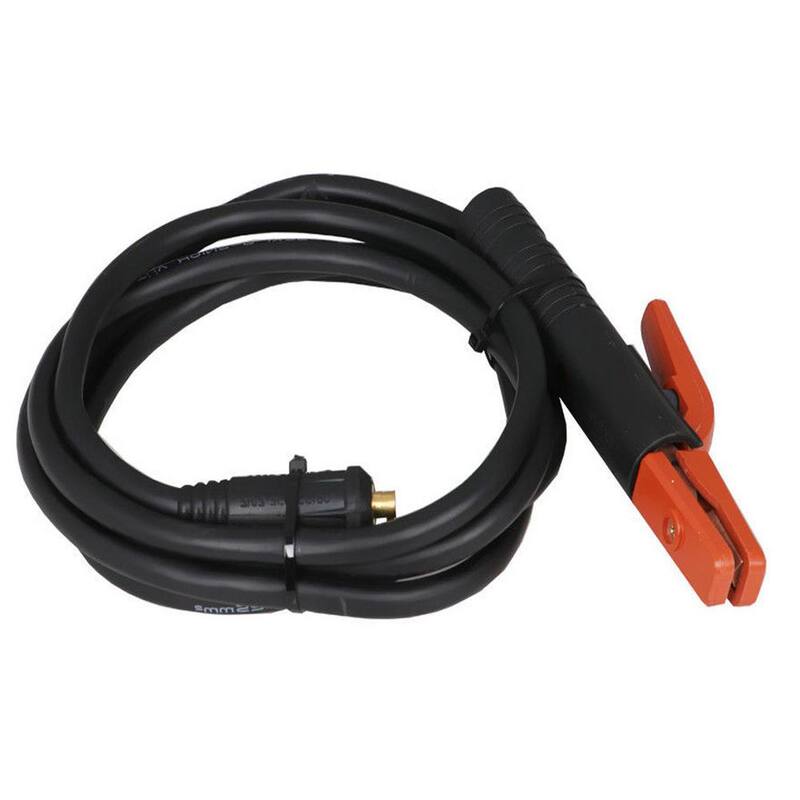

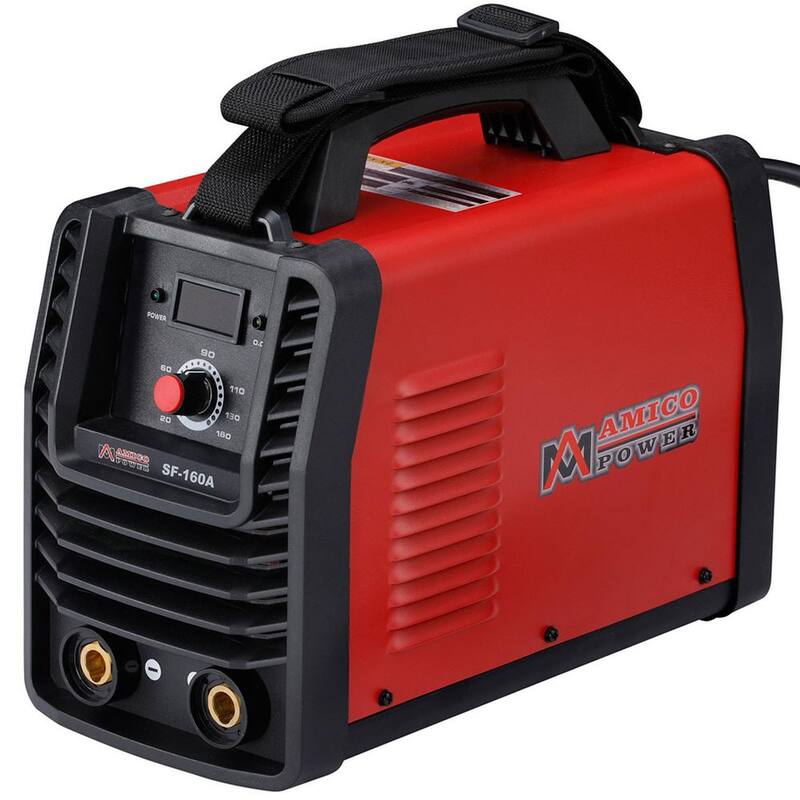

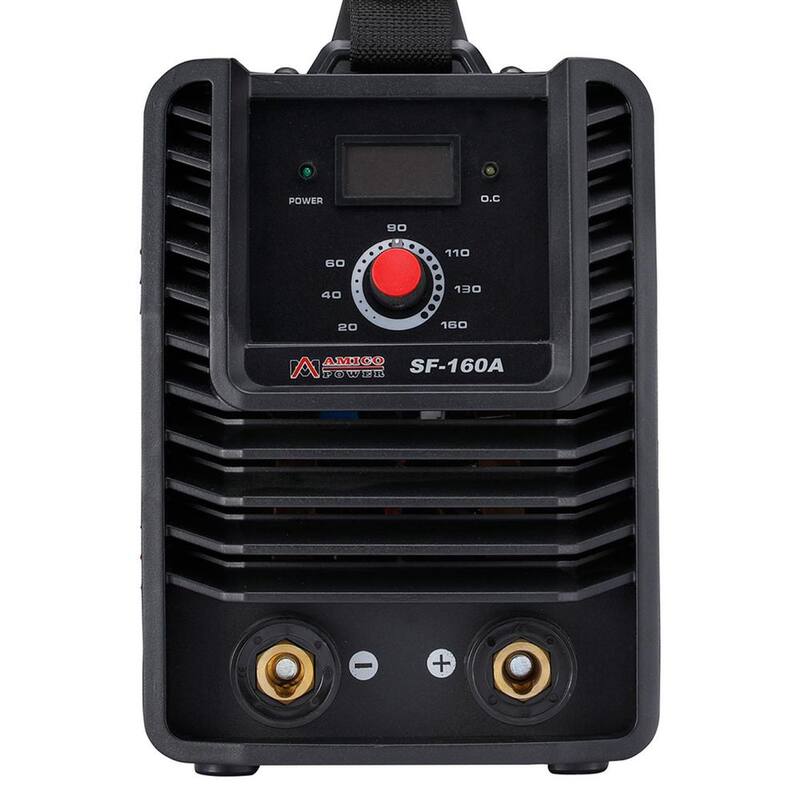

SF-160 Amp is a rectifier adopting the most advanced inverter technology. Welding power source can offer stronger, more concentrated and more stable arc. When stick and work piece get short, its response will be quicker. It means that it is easier to design into welding machine with different dynamic characteristics and it even can be adjusted for specialty to make arc softer or harder. Specifications: SF-160 Amp, Rated Input Voltage: AC 110-Volt and 230-Volt, Frequency: 60 Hz/50 Hz, Rated Input Power: 230-Volt/8.0KVA/35 Amp and 110-Volt/5.0KVA/45 Amp, Current Range: 230-Volt/20 Amp to 160 Amp and 110-Volt/20 Amp to 120 Amp, Force Current: 0 Amp to 40 Amp and 0 Amp to 10 Amp, Rated Duty Cycle: 160 Amp at 60% and 124 Amp at 100%, Nominal DC Open Circuit Voltage: 85-Volt, Usable Electrode: 230-Volt/1-Volt/16-Volt/1/8-Volt and 115-Volt/1-Volt/16-Volt/3/32-Volt, Power Factor: 0.93, Dimension: 14.17 in. x 7.09 in. x 11.08 in. Net Weight: 15.65 lbs., Packaging Size: 16.5 in. x 9.5 in. x 13 in., Packaging Weight: 20 lbs. Packing List: SF-160 Amp Stick Welding Machine, 8 ft. Power Cord and 6P-50P Plug (on the machine), 300 Amp Electrode Holder, 10 ft. Cable, 35 mm to 50 mm Connect, 300 Amp Work Clamp, 10 ft. Cable, 35 mm to 50 mm Connect, 230-Volt to 110-Volt Power Adapter, 2-Pieces Electrode of 3/32 in., Owners Manual.
| Duty Cycle (%) | 60 |
|---|---|
| Engine Power | Electric (AC) |
| Hertz (Hz) | 50/60Hz |
| Included | Torch |
| Input Power (Volts) | 230 |
| Material Application Thickness (in.) | 0.5 |
| Maximum Rod Size (in.) | 0.16 |
| Maximum amperage output (amps) | 160 |
| Minimum amperage output (amps) | 20 |
| Minimum welding wire size (in.) | 0 |
| Process Application Type | DC Stick (SMAW) |
| Rated Output (Volts) | 85 |
| Returnable | 90-Day |
| Welder Type | Arc,Stick |
| Manufacturer Warranty | One Year Warranty |
| Maximum welding wire size (in.) | 0 |
| Product Depth (in.) | 14.17 in |
| Product Height (in.) | 11.08 in |
| Product Width (in.) | 7.09 in |
