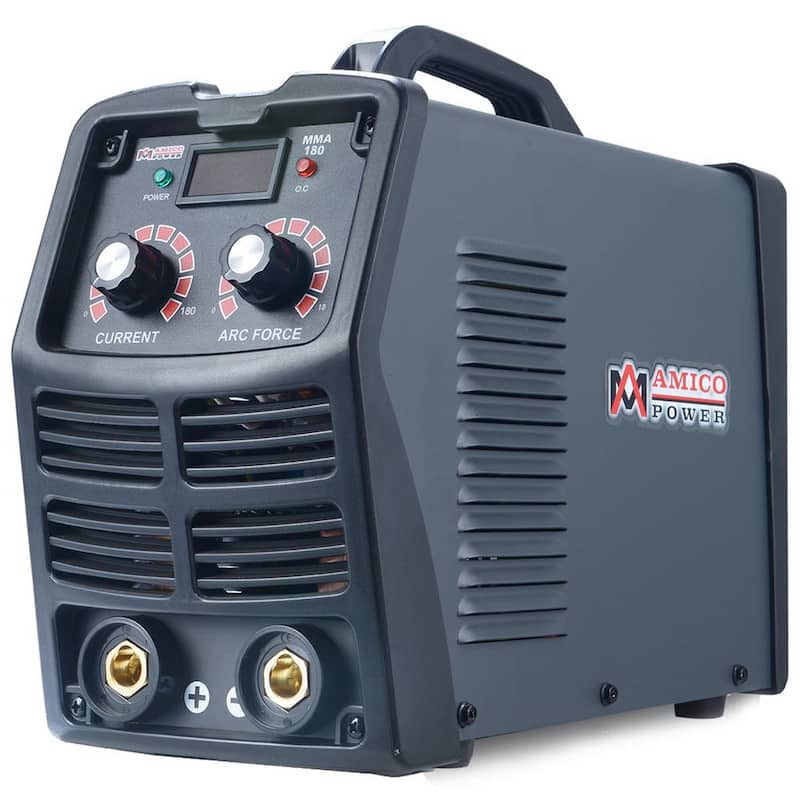

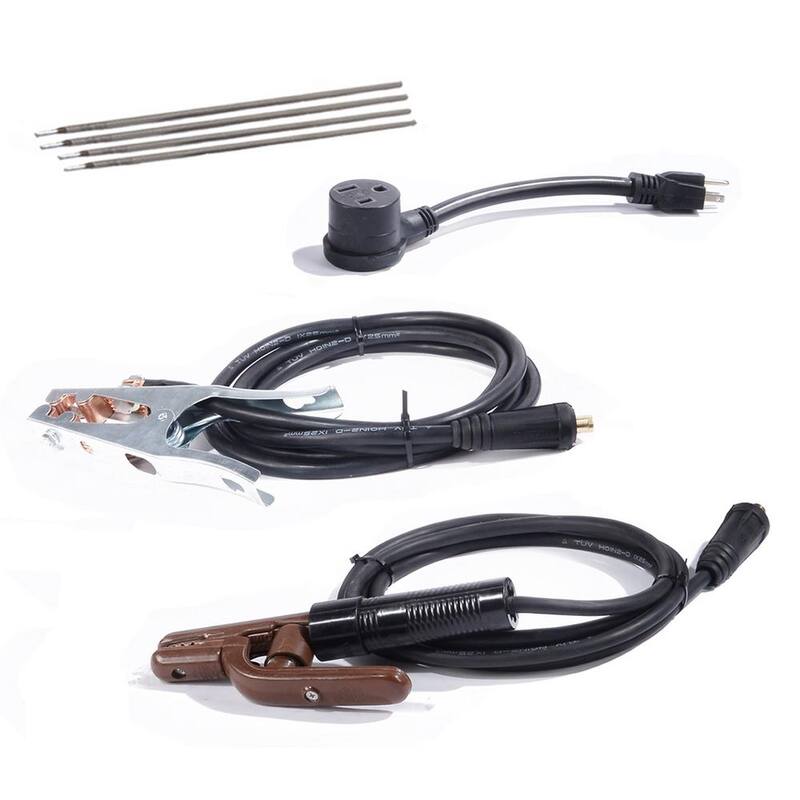

MMA-180 is a rectifier adopting the most advanced inverter technology. welding power source can offer stronger, more concentrated and more stable arc. when stick and work piece get short, its response will be quicker. it means that it is easier to design into welding machine with different dynamic characteristics, and it even can be adjusted for specialty to make arc softer or harder. Specifications: Rated Input Voltage: AC 110-Volt & 230-Volt; Frequency: 60Hz/50Hz; Rated Input Power: 230-Volt/9.5KVA/41 Amp & 110-Volt/5.6KVA/51 Amp; Current Range: 230-Volt/180 Amp & 115-Volt/140 Amp; Force Current: 0-50 Amp & 0-10 Amp; Rated Duty Cycle: 180 Amp at 60%; Nominal DC Open Circuit Voltage: 75-Volt.; Usable Electrode, 230-Volt: 1/16 in. - 5/32 in. & 115-Volt: 1/16 in. - 1/8 in.; Power Factor: 0.93; Dimension: 16 x 6.5 x 12 in.; Net Weight: 18.9 lbs. Packaging Size: 15.72 x 8.52 x 12.85 in.; Packaging Weight: 26 lbs. Packing List: MMA-180 Stick Welding Machine; 8-feet Power Cord & N6-50P Plug (on the machine); 10 ft. 300A Electrode Holder Assembly, 35-50mm Lead Dines; 10 ft. 300A Work Clamp Assembly, 35-50 mm Lead Dines; 230-Volt to 110-Volt Power Adapter; 2 Pieces Electrode of 1/8 in.; Owner's Manual.
| Duty Cycle (%) | 60 |
|---|---|
| Engine Power | Electric (AC) |
| Hertz (Hz) | 50/60Hz |
| Included | Torch |
| Input Power (Volts) | 230 |
| Material Application Thickness (in.) | 0.5 |
| Maximum Rod Size (in.) | 0.16 |
| Maximum amperage output (amps) | 180 |
| Minimum amperage output (amps) | 15 |
| Minimum welding wire size (in.) | 0 |
| Process Application Type | DC Stick (SMAW) |
| Rated Output (Volts) | 27.2 |
| Returnable | 90-Day |
| Welder Type | Arc,Stick |
| Manufacturer Warranty | 1 Year |
| Maximum welding wire size (in.) | 0 |
| Product Depth (in.) | 16 in |
| Product Height (in.) | 12 in |
| Product Width (in.) | 6.5 in |
