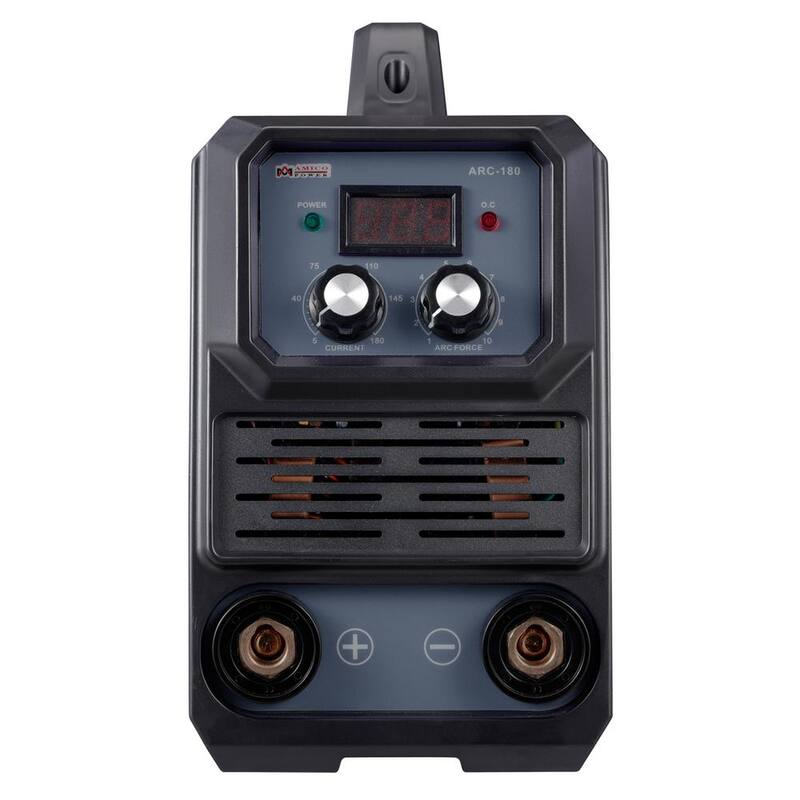

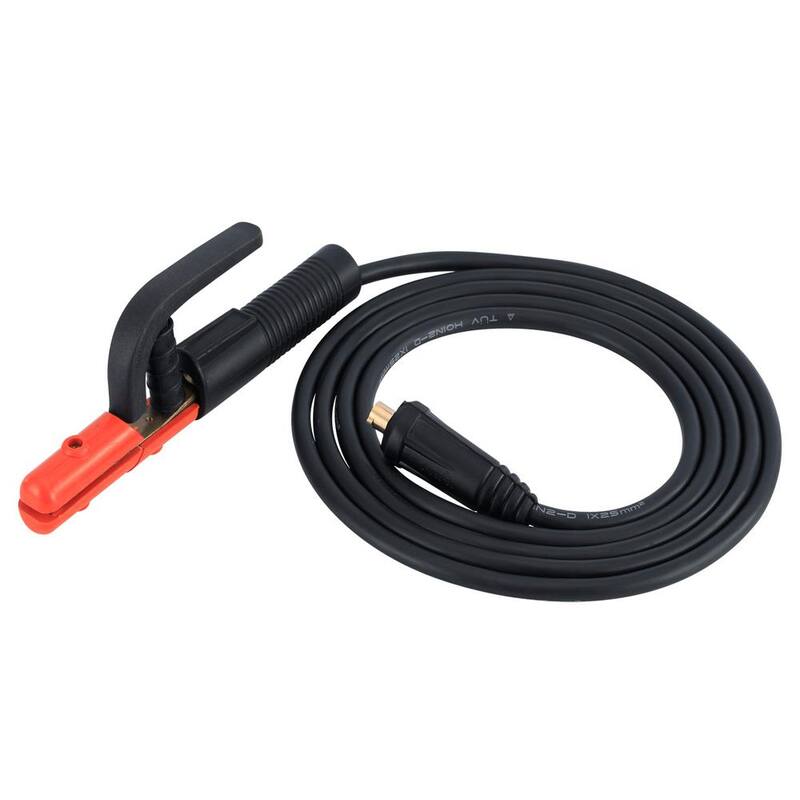

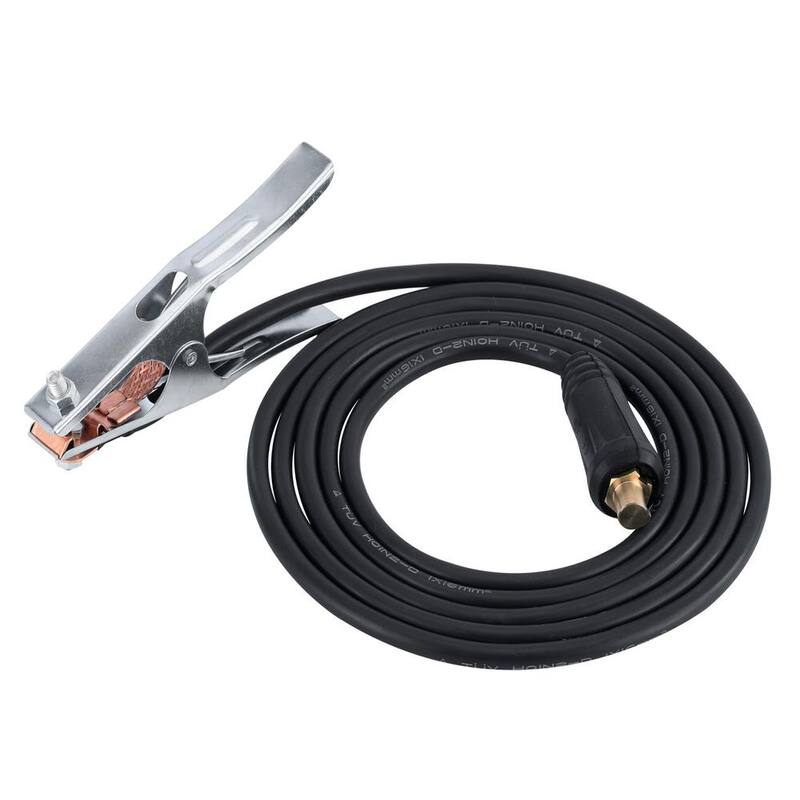

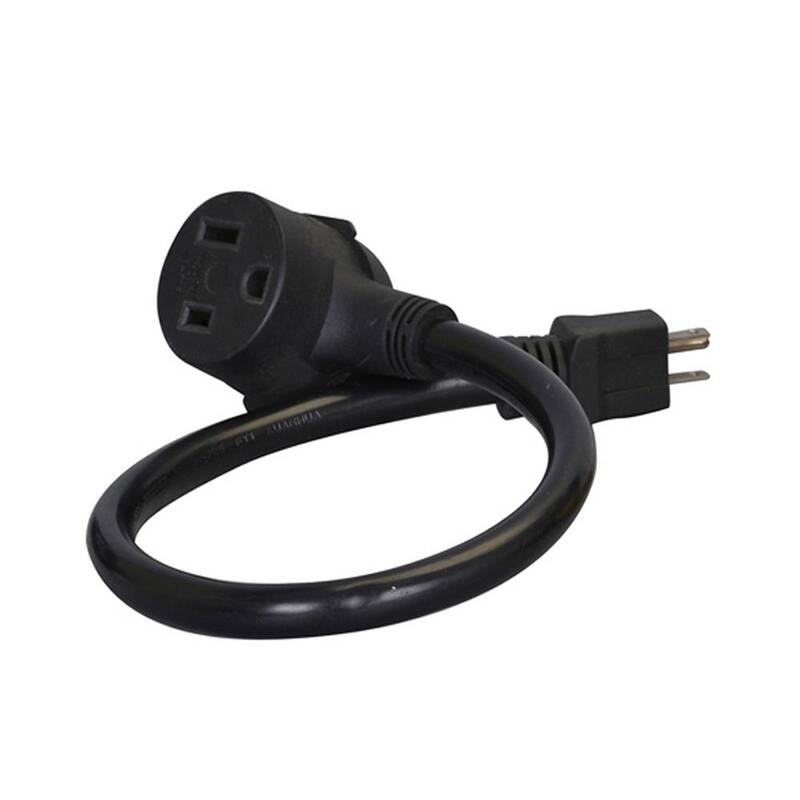

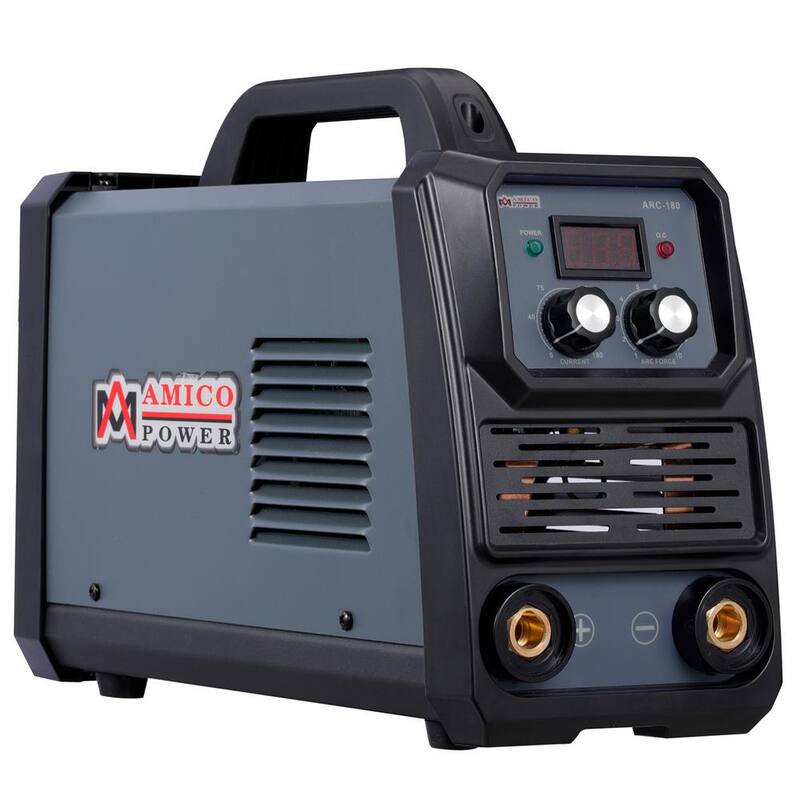

ARC-180 is a professional Stick Arc with Lift-TIG welding machine using the advanced inverter technology. The welding power source can provide a stronger, more concentrated and more stable arc. When the stick and work-piece become shorter, the response will be faster. This means it is easier to design it as a welding machine with different dynamic characteristics, and it can even be adjusted as needed to make the arc softer or harder. Specifications: Model: ARC-180; Rated Input Voltage: AC 100-250V; Frequency: 50-60Hz; Rated Input Power: 230V/7.4KVA/32A & 115V/5.2KVA/45A; Current Range: 230V/5-180 Amp & 115V/5-140 Amp; Force Current: 0-50 Amp & 0-10 Amp; Rated Duty Cycle, 230V: 80% @ 180 Amp & 115V: 80% @ 140 Amp; Nominal DC Open Circuit Voltage: 83V; Usable Electrode, 230V: 1/16-3/16 in. & 115V: 1/16-5/32 in.; Power Factor: 0.93; Dimension: 15.75 x 6.2 x 11.3 in.; Net Weight: 15.18 lbs.; Packaging Size: 18.0 x 9.5 x 12.5 in.; Packaging Weight: 22.42 lbs. Packing List: ARC-180 Pro. Stick Arc Welding Machine; 8 feet Power Cord & N6-50P plug (on the machine); 230V to 115V Power Adapter; 250 Amp Electrode Holder, 10 feet Cable, 35-50 mm Connect; 250 Amp Work Clamp, 10 feet Cable, 35-50 mm Connect; 2 Pieces Electrode of 3/32 in.; 2 Pieces Electrode of 1/8 in.; Owner's Manual.
| Duty Cycle (%) | 80 |
|---|---|
| Engine Power | Electric (AC) |
| Hertz (Hz) | 50/60Hz |
| Included | Kit,Torch |
| Input Power (Volts) | 250 |
| Material Application Thickness (in.) | 0.75 |
| Maximum Rod Size (in.) | 0.2 |
| Maximum amperage output (amps) | 180 |
| Minimum amperage output (amps) | 5 |
| Minimum welding wire size (in.) | 0 |
| Process Application Type | DC Stick (SMAW) |
| Rated Output (Volts) | 27.2 |
| Returnable | 90-Day |
| Welder Type | Arc,Stick |
| Manufacturer Warranty | One Year |
| Maximum welding wire size (in.) | 0 |
| Product Depth (in.) | 14.1 in |
| Product Height (in.) | 11.3 in |
| Product Width (in.) | 6.2 in |
