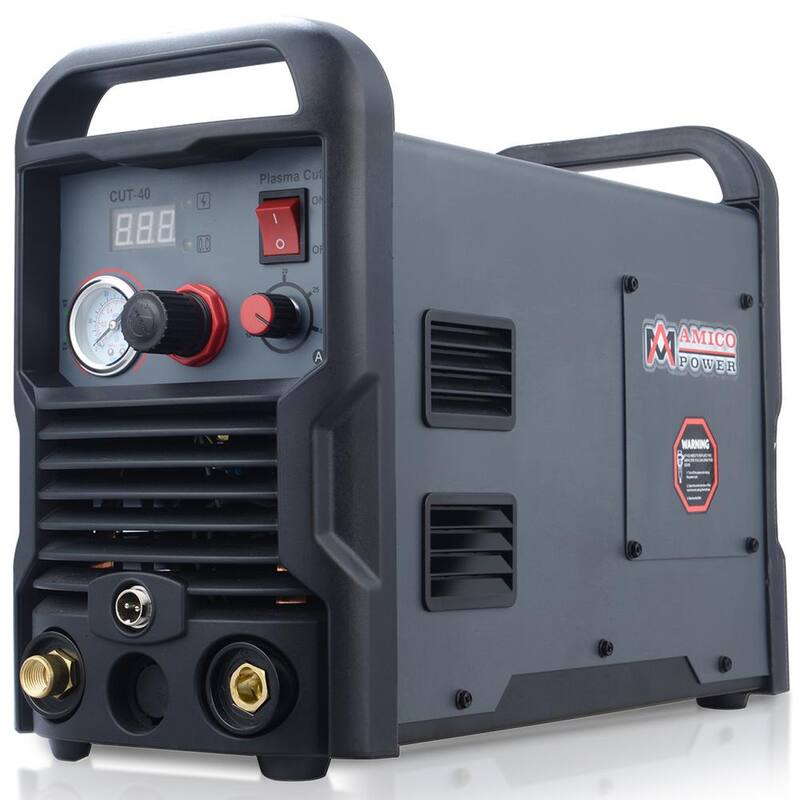

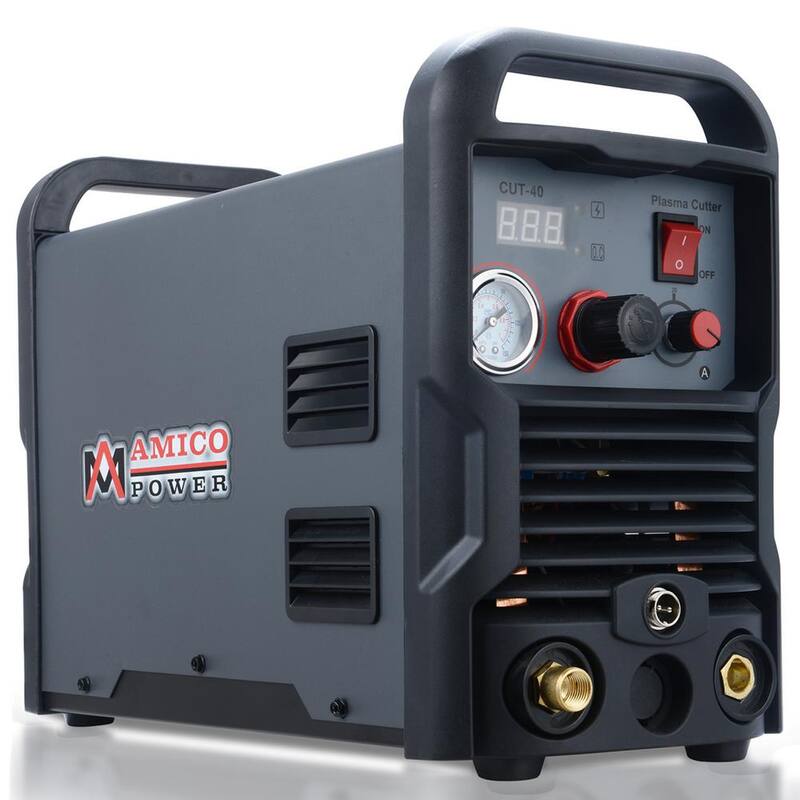

CUT-40 is a newly designed with the meter and adjustment attached to the front of the machine and the filter is located inside the machine. The new and improved model makes it more convenient and easier to use. New digitally controlled 15-40 amps Plasma Cutter Machine with advanced inverter technology and high cutting performance. Designed for portable repair work and small business project use, CUT-40 Plasma Cutter cuts a thickness of 1/2 in., and the max severance thickness is 3/4 in. Type: DC Air Plasma Cutter. Supply Power: 110-Volt/230-Volt/60Hz/1-Phase. Rated Input Current: AC 110-Volt/33.4 Amp, 230-Volt/20.8 Amp. Cutter Current Range: 110-Volt at 15-33 Amp, 230-Volt at 15-40 Amp. Nominal DC Open Circuit Voltage: 260-Volt. Output Voltage 104F (40c): 96-Volt. Duty Cycle: 60% at 40 Amp. Efficiency: 85%. Power factor: 0.93. Output Terminal Type: Direct Wire. Cooling Method: Fan Air Cooled. Gas Supply: Clean Dry Oil-Free Air. Gas Pressure Range: 30 psi to 75 psi. Gas Flow: 4.0scfm at 75 psi. Movement Speed: 10.0 inch/min. Recommended Severance Cutting Thickness: Mild Steel 3/4", Stainless Steel 2/5", Aluminum 2/5". Net Weight: 18.7 lbs. Product Size: 17.91 in. x 7.87 in. x 13.86 in. Package Weight: 30.0 lbs. Shipping Size: 20.66 in. x 12.2 in. x 16.53 in. Package Included: 13 Feet (PT31/LG40) Plasma Cutter Gun Assembly, 10 Feet 300A Work Clamp with Cable, 230-Volt to 110-Volt Power Adapter, Air Filter and Pressure Gage (Installed inside the machine), Owner's Manual.
| Duty Cycle (%) |
60 |
| Engine Power |
Electric (AC) |
| Included |

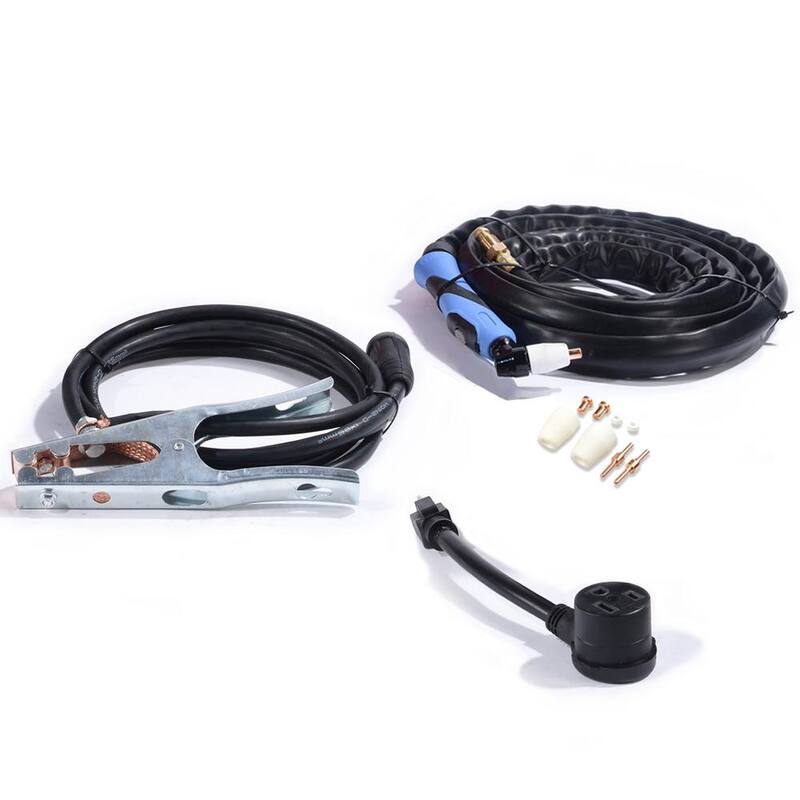

Additional Tips,Kit,Tips,Torch |
| Input Power (Volts) |
110230 |
| Maximum amperage output (amps) |
40 |
| Minimum amperage output (amps) |
15 |
| Rated Output (Volts) |
108 |
| Recommended Cutting Capacity |
1/2" |
| Returnable |
90-Day |
| Welder Type |
Plasma Cutter |
| Manufacturer Warranty |
1 Year |
| Product Depth (in.) |
18.0 in |
| Product Height (in.) |
14.0 in |
| Product Width (in.) |
8.0 in |
