MIG-200 is a multi-functional electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, alloy, iron, copper, cast iron, and even aluminum (using spool gun SPG15250). Specifications - Welder Type: 3-IN-1 MIG/TIG/STICK Combo Welder, Output Terminal Type: Direct Wire, Power Supply: AC 110-Volt and 230-Volt/1-Phase/50-60Hz. Rated Input Current: 230-Volt: 38.5 Amp (MIG), 29.5 Amp (TIG), 41.5 Amp (STICK), 110-Volt: 39.0 Amp (MIG), 31.0 Amp (TIG), 47.0 Amp (STICK). Current Range Output, MIG: 230-Volt/40 Amp to 200 Amp, 110-Volt/30 Amp to 145 Amp, TIG: 230-Volt/15 Amp to 200 Amp, 110-Volt/10 Amp to 145 Amp, STICK: 230-Volt/15 Amp to 200 Amp, 110-Volt/10 Amp to 145 Amp. Nominal DC Open Circuit Voltage (OCV): 56-Volt, Welding Output, 104°F (40°C), 10-minutes (230-Volt): MIG: 200 Amp/24-Volt, TIG: 200 Amp/18-Volt, STICK: 200 Amp/28-Volt. Duty Cycle: MIG: 60% at 200 Amp, TIG: 60% at 200 Amp, STICK: 60% at 200 Amp. Max. Wire Feeding Speed: 610 in./min. Efficiency: 93%, Power Factor: 0.85, Cooling Method: Fan Cooled, Includes: 10 ft. MIG Torch Assembly, 10 ft. Electrode Holder Assembly, 10 ft. Work Clamp Assembly, 230-Volt to 110-Volt Power Adapter, 7 ft. Power Cord N6-50P Plug.
| Duty Cycle (%) |
60 |
| Engine Power |
Electric (AC) |
| Gun Type |
MIG |
| Included |

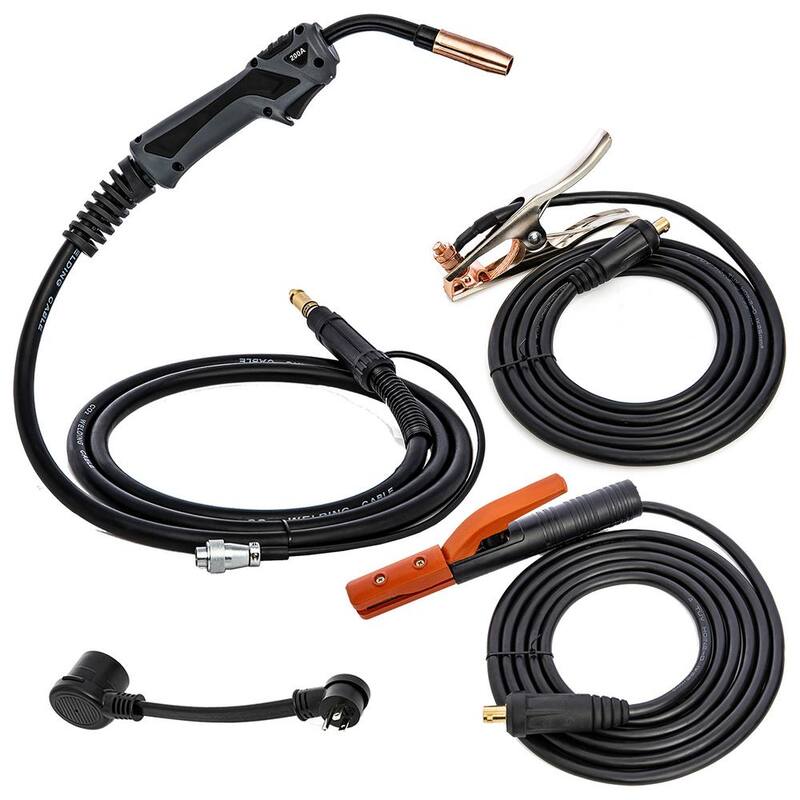

Feeder,Solder,Torch |
| Input Power (Volts) |
230 |
| Material Application Thickness (in.) |
0.75 |
| Maximum amperage output (amps) |
200 |
| Minimum amperage output (amps) |
15 |
| Process Application Type |
MIG,MIG (GMAW) |
| Rated Output (Volts) |
56 |
| Returnable |
90-Day |
| Welder Type |
MIG,Multi-Process,Stick,TIG,Wire-Feed |
| Manufacturer Warranty |
1 Year Warranty |

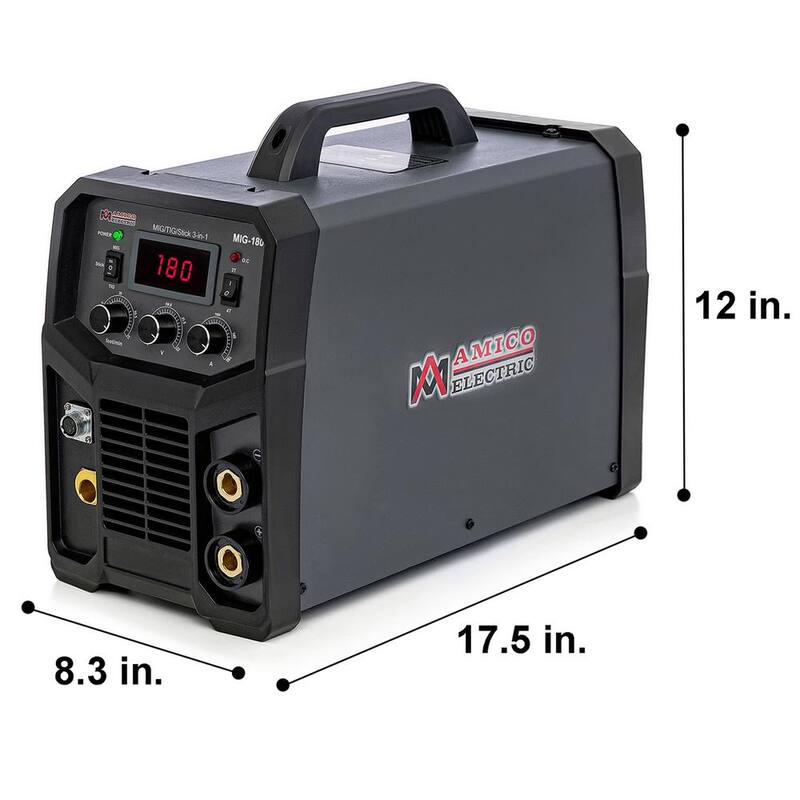

| Product Depth (in.) |
17.75 in |
| Product Height (in.) |
13.8 in |
| Product Width (in.) |
8.25 in |
