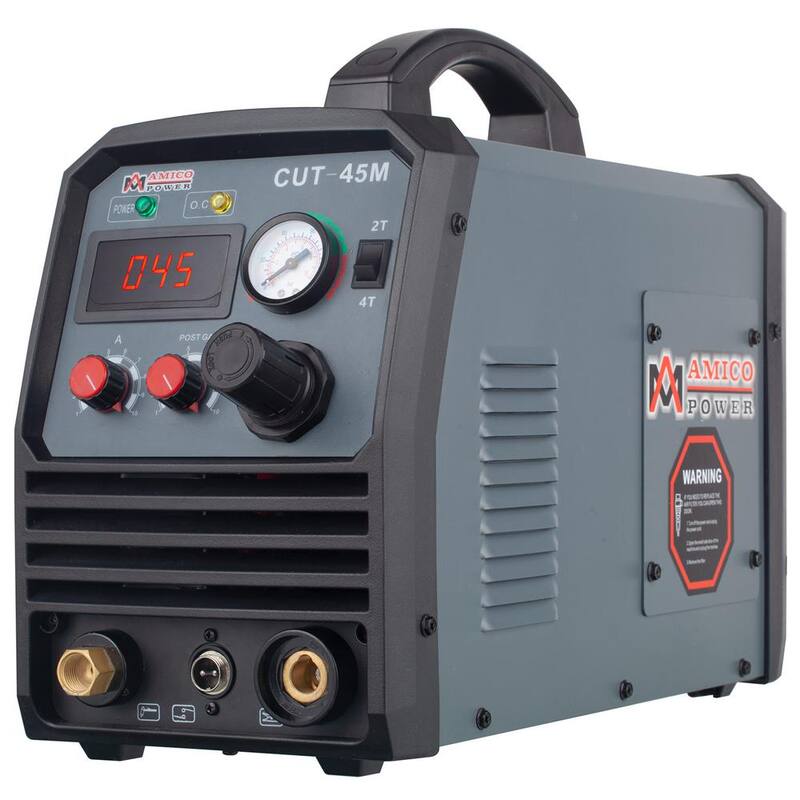

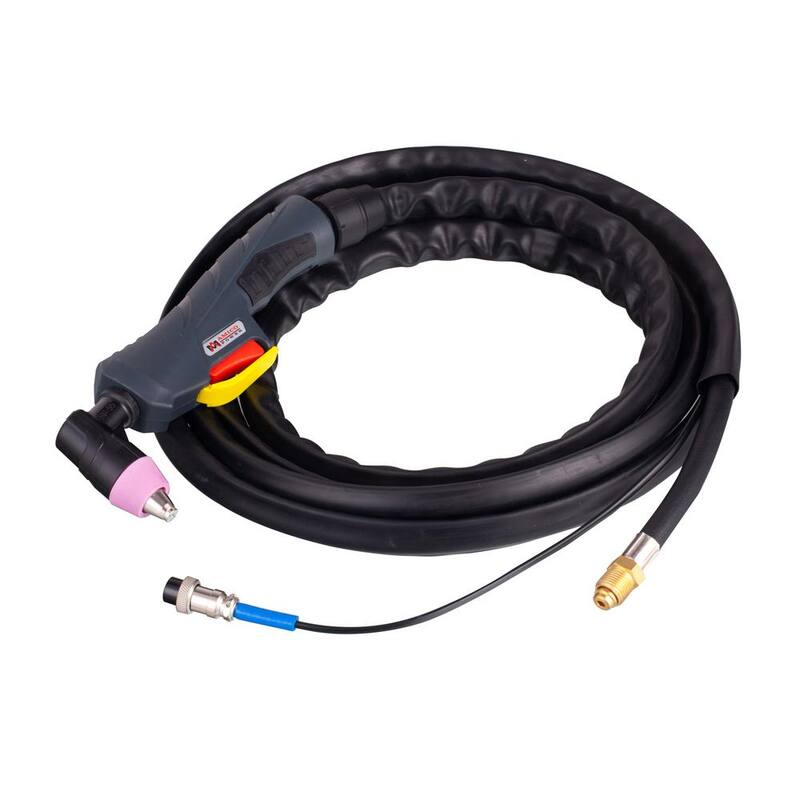

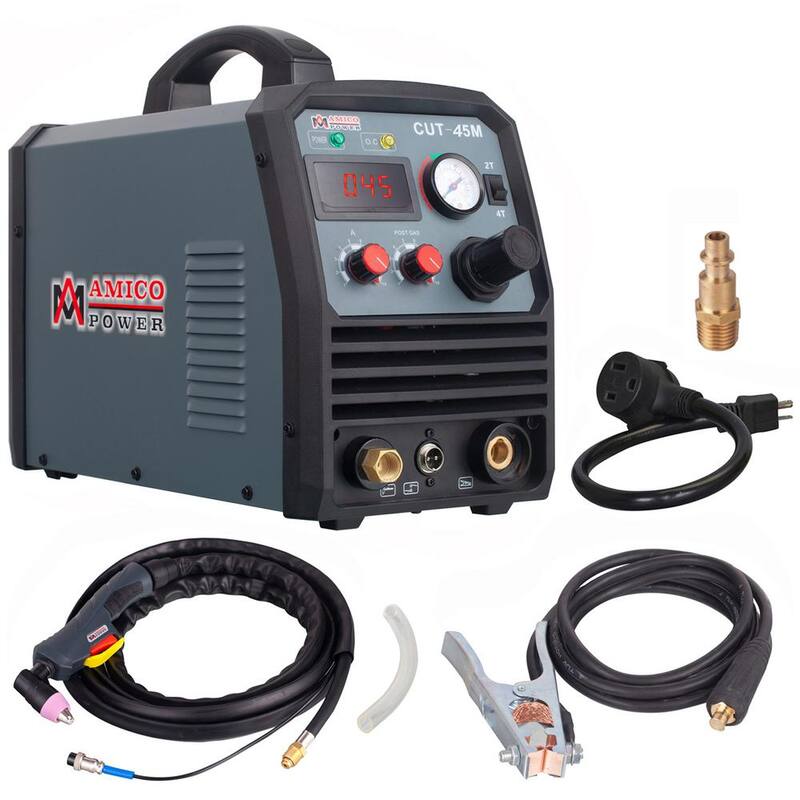

CUT-45M is a newly designed machine with the meter and adjustment knobs attached to the front of the machine; the filter is located inside the machine. This new and improved model makes it more convenient and easier to use. This is the new digitally controlled 20-55 amps Plasma Cutter Machine with advanced inverter technology and high cutting performance. Designed for portable repair work and small business project use, the CUT-45M Air Plasma Cutter cuts a thickness of 2/5 in. with the max severance thickness at 3/4 in. Specifications: Type: Air Plasma Cutter, Supply Power: AC 95-Volt to 260-Volt, 50 Hz/60 Hz, 1-Phase. Rated Input Current: 230-Volt/24.3 Amp and 115-Volt/30.4 Amp. Cutter Current Range: 230-Volt/45 Amp and 115-Volt/30 Amp. Nominal DC Open Circuit Voltage: 280-Volt, Output Voltage: 102-Volt, Duty Cycle: 60% at 45 Amp, Efficiency: 89%, Power factor: 0.93, Output Terminal Type: Direct Wire, Cooling Method: Fan Air Cooled, Gas Supply: Clean Dry Oil-Free Air, Gas Pressure Range: 30 psi to 90 psi, Recommended Gas Inlet Flow: 4.0 scfm at 90 psi, Maximum Severance Cutting Thickness: 3/4 in. Movement Speed: 10.0 in./min. Package Included: 13 Ft. (SG55/AG60) Plasma Cutter Torch Assembly, 10 Ft. 300 Amp Work Clamp Assembly, 230-Volt to 115-Volt Power Adapter, Air Filter and Pressure Gage (Installed inside the machine), Owners Manual.
| Duty Cycle (%) |
60 |
| Engine Power |
Electric (AC) |
| Included |
Additional Tips,Hose,Kit,Tips,Torch |
| Maximum amperage output (amps) |
45 |
| Minimum amperage output (amps) |
15 |
| Rated Output (Volts) |
102 |
| Recommended Cutting Capacity |
3/4" |
| Returnable |
90-Day |
| Welder Type |
Plasma Cutter |
| Manufacturer Warranty |
1 Year |
| Product Depth (in.) |
15.72 in |
| Product Height (in.) |
112.85 in |
| Product Width (in.) |
8.52 in |
