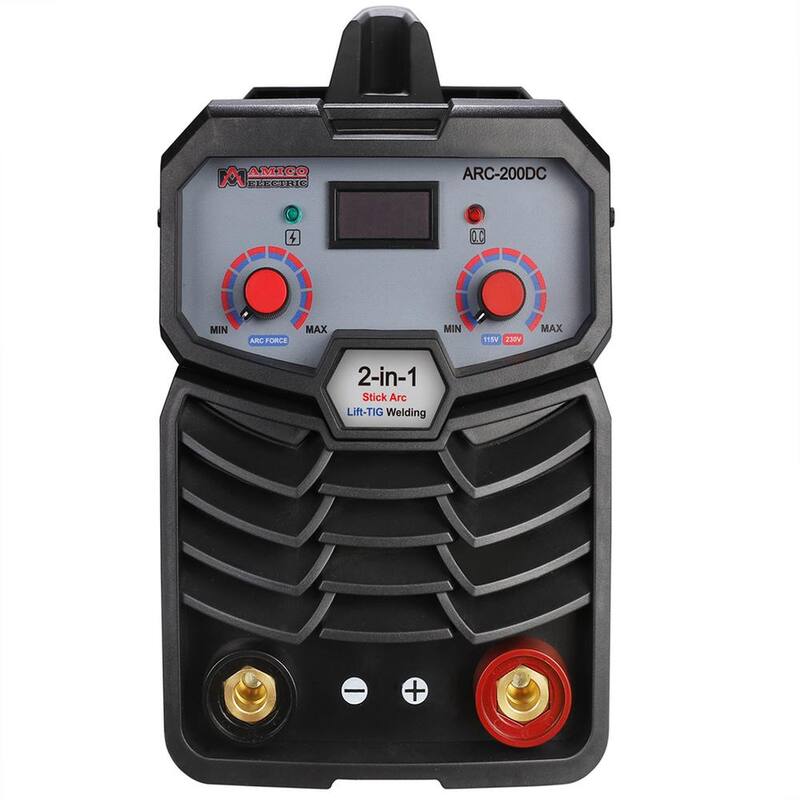

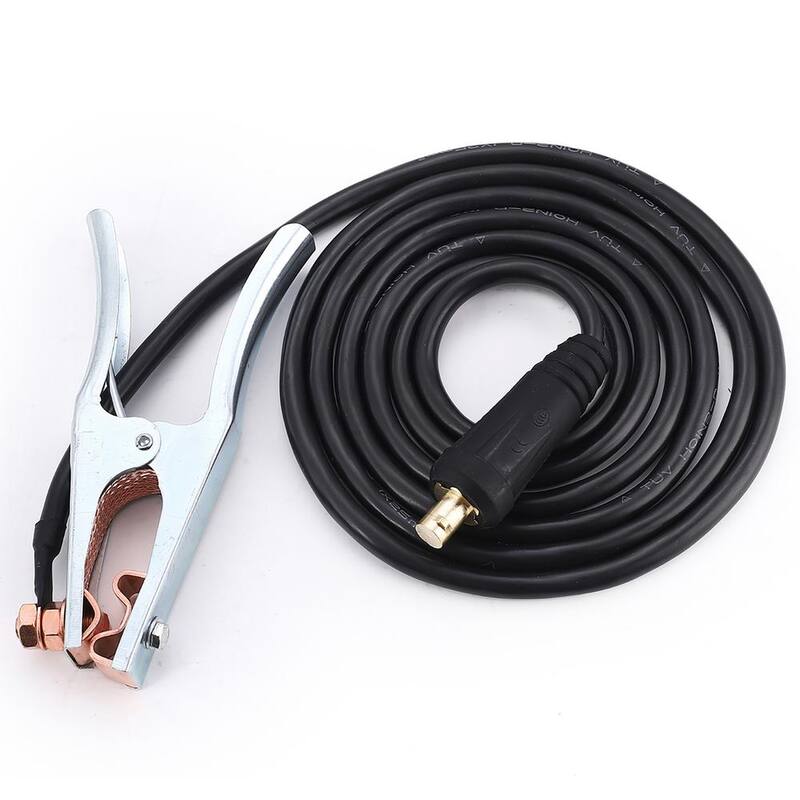

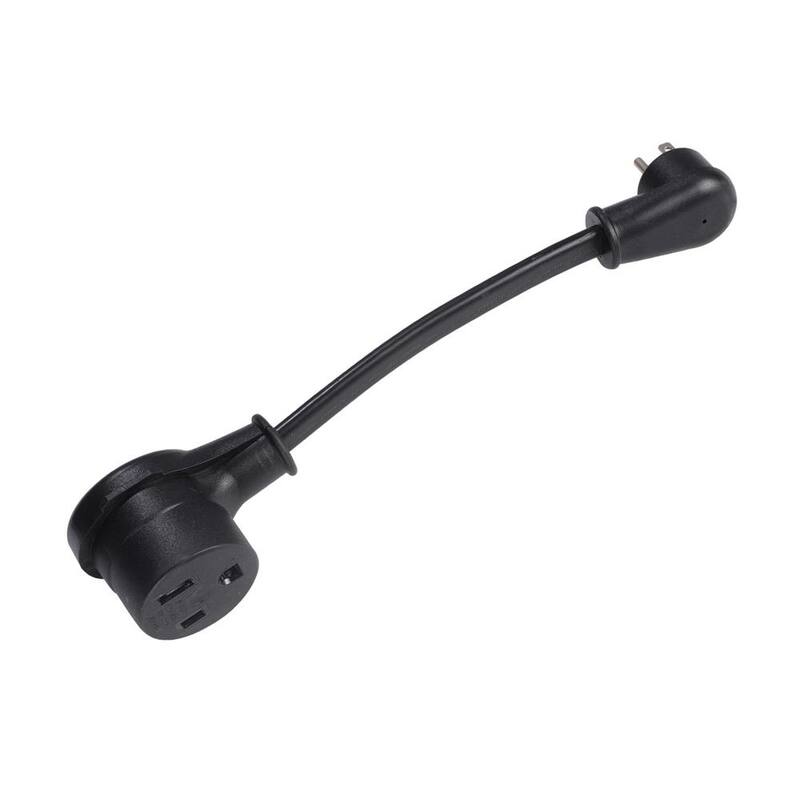

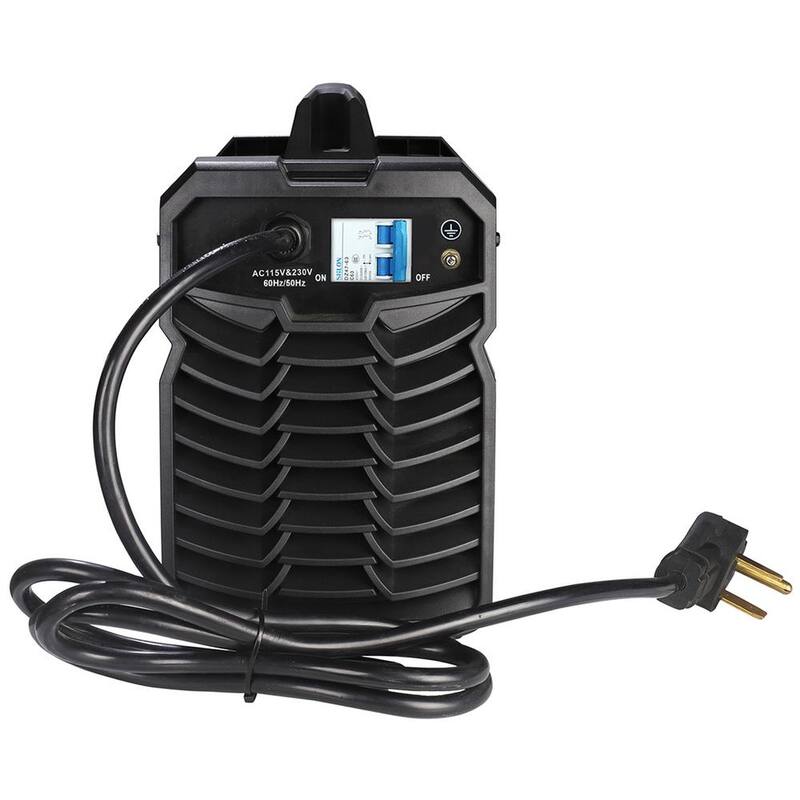

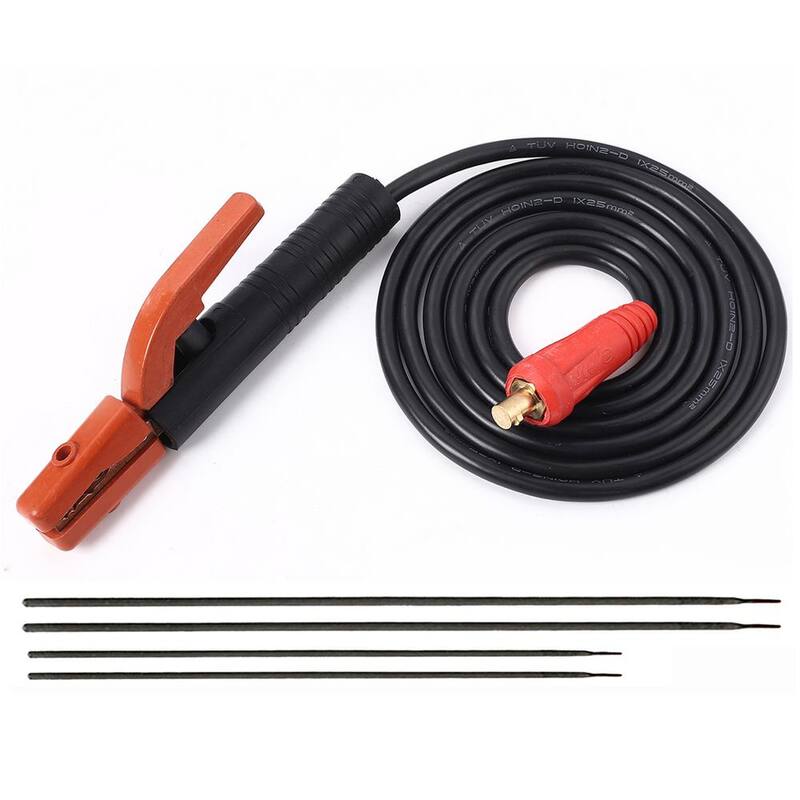

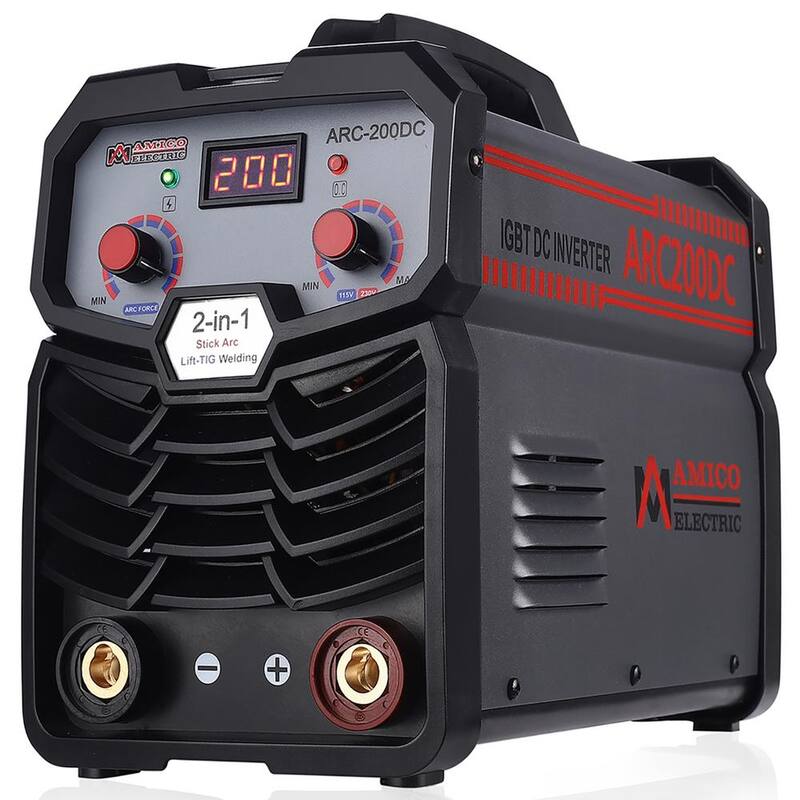

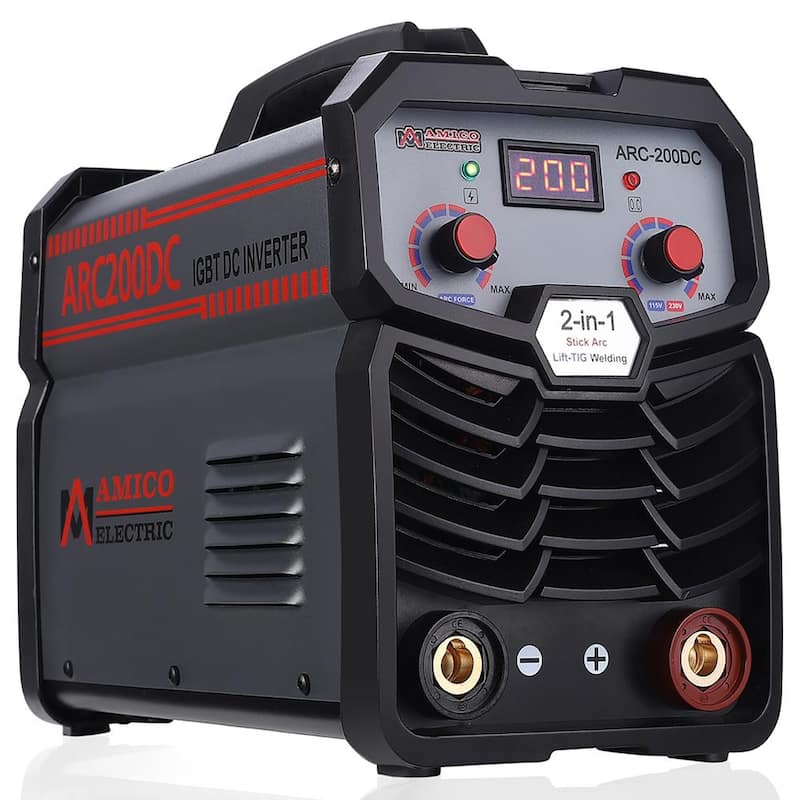

ARC-200DC is a professional Stick Arc with Lift-TIG welding machine using the advanced inverter technology. The welding power source can provide a stronger, more concentrated and more stable arc. When the stick and work-piece become shorter, the response will be faster. This means it is easier to design it as a welding machine with different dynamic characteristics, and it can even be adjusted as needed to make the arc softer or harder. Specifications: Rated Input Voltage: AC 100V-250V, Frequency: 50Hz & 60Hz; Rated Input Power: 230V/8.7KVA/37.9A & 115V/4.4KVA/38.5A; Current Range: 230V/200A & 115V/150A, Force Current: 230V/0-50A & 115V/0-15A; Rated Duty Cycle: 230V/80%@200A & 115V/80%@150A; Nominal DC Open Circuit Voltage: 85-Volt; Usable Electrode: 230V/1/16-1/4 in. & 115V/1/16-5/32 in., Power Factor: 0.93; Dimension: 17.0 x 7.5 x 12.0 in., Net Weight: 17.0 lbs., Packaging Size: 18.97 x 10.12 x 13.27 in., Packaging Weight: 23.26 lbs. Packing List: ARC-200DC Pro. Stick Arc Welding Machine; 7-feet Power Cord & 6-50P Plug (on the machine); 230V to 110V Power Adapter; 300A Electrode Holder, 10-feet Cable, 35-50mm Connect; 300A Work Clamp, 10-feet Cable, 35-50mm Connect; 4 Pieces Electrode of 5/32 in. & 1/8 in. Owner's Manual.
| Duty Cycle (%) | 80 |
|---|---|
| Engine Power | Electric (AC) |
| Hertz (Hz) | 50/60Hz |
| Included | Solder,Tips,Torch |
| Input Power (Volts) | 230 |
| Material Application Thickness (in.) | 10 |
| Maximum Rod Size (in.) | 0.24 |
| Maximum amperage output (amps) | 200 |
| Minimum amperage output (amps) | 15 |
| Minimum welding wire size (in.) | 0 |
| Process Application Type | DC Pulsed TIG (GTAW-P),DC Stick (SMAW) |
| Rated Output (Volts) | 85 |
| Returnable | 90-Day |
| Welder Type | Arc,Stick,TIG |
| Manufacturer Warranty | One Year |
| Maximum welding wire size (in.) | 0 |
| Product Depth (in.) | 17.0 in |
| Product Height (in.) | 12.0 in |
| Product Width (in.) | 7.5 in |
