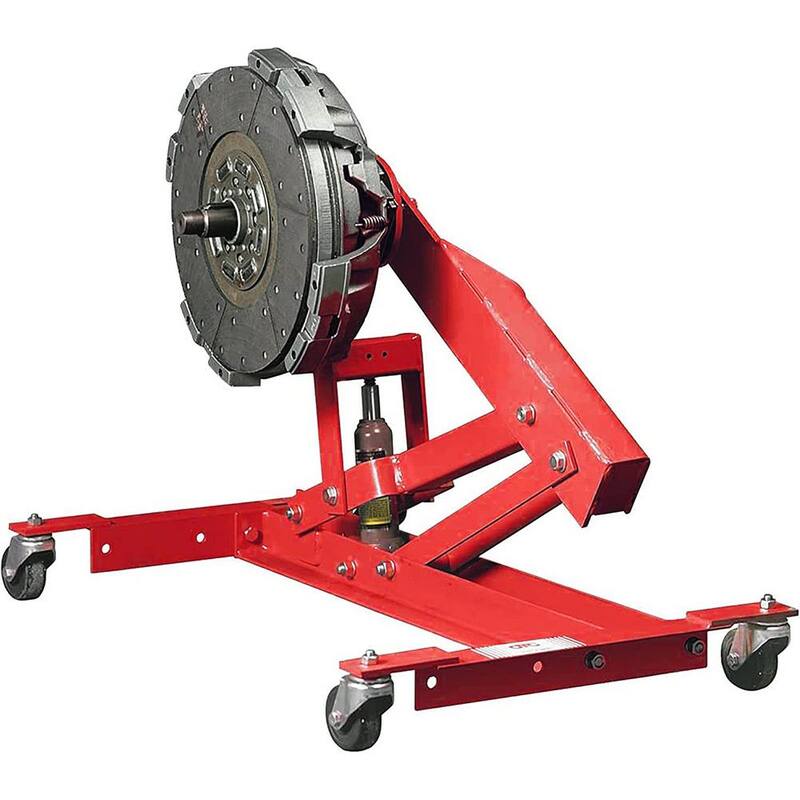

The Big Red TDC03001 Torin Truck Clutch and Flywheel Handler is designed to fit 14 in. and 15-1/2 in. clutch assemblies weighing up to 300 lbs. It features a wide lift range of 11 in. to 37 in. The splined shaft is engineered to be rotatable by 3 bolts on the bracket to align with the clutch assemblies. It comes with Big Red welded bottle jack for additional reliability and efficiency. It also includes 1-year limited manufacturer warranty.
| Features | Rust Resistant |
|---|---|
| Frame Material | Steel |
| General Part Type | Transmission Jack |
| Ideally Used For | General Automotive |
| Included | Adapters,Handle |
| Material | Steel |
| Maximum Lift Height (in.) | 37 in |
| Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 11 |
| Product Weight (lb.) | 97 lb |
| Returnable | 90-Day |
| Tilt Capacity Back (degrees) | 10 |
| Tilt Capacity Front (degrees) | 10 |
| Tilt Capacity Side (degrees) | 10 |
| Weight Capacity (lb.) | 300 lb |
| Manufacturer Warranty | Limited 1 Year Manufacturer Warranty |
| Base Length (in.) | 37.01 |
| Base Width (in.) | 23.62 |
| Collapsed height (in.) | 13.39 |
| Handle Length (in.) | 21.65 in |
| Product Depth (in.) | 37.01 in |
| Product Height (in.) | 13.39 in |
| Product Width (in.) | 23.62 in |
