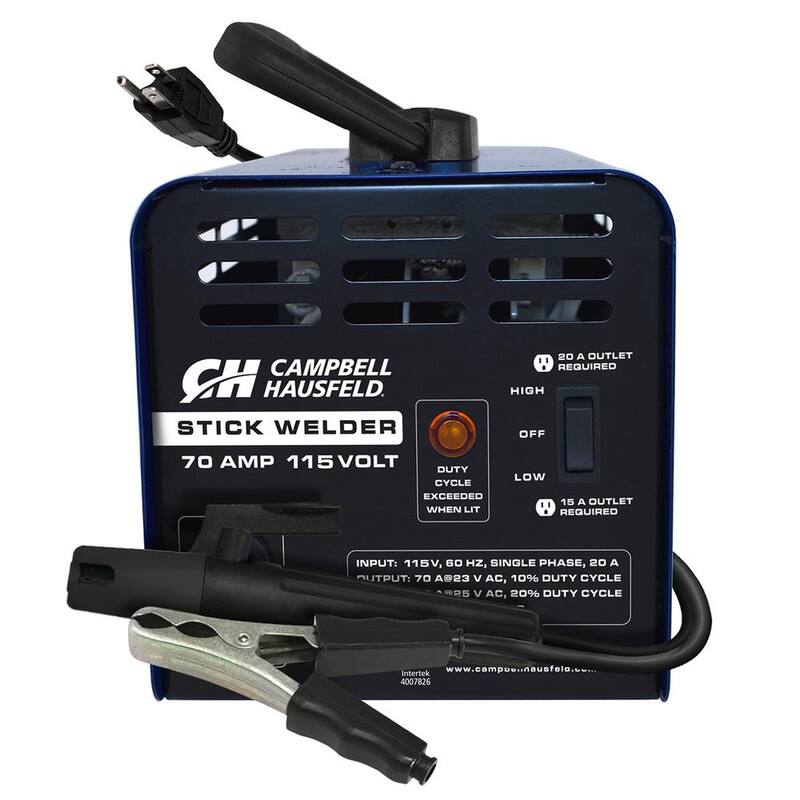

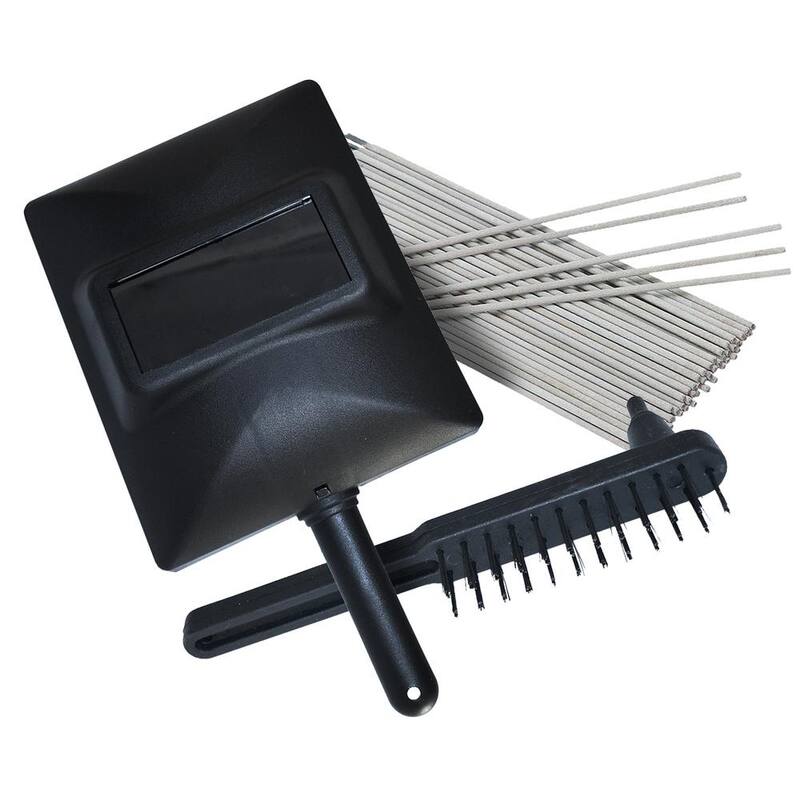

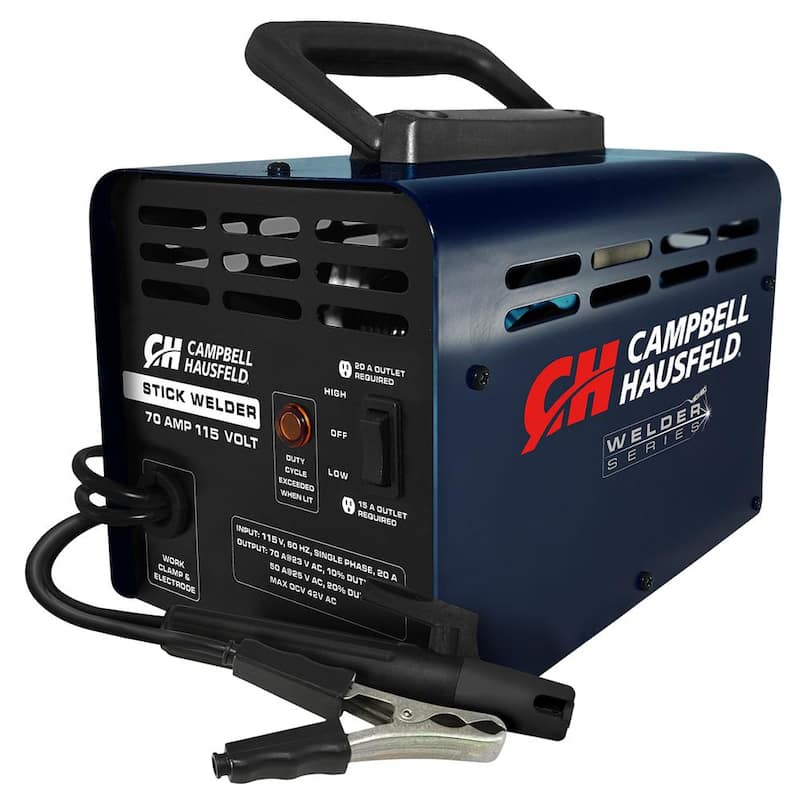

The Campbell Hausfeld 115-Volt stick welder (WS099001AV) is designed for home and shop applications. Easy to use and portable, this welder has a transformer design that provides an easy-starting, smooth arc. Weld with 1/16 in. electrodes on a 15 Amp household circuit; a 20 Amp circuit is required for welding with 5/64 in. electrodes. Thermal overload protection activates automatically to avoid overheating. Includes hammer/brush, starter pack of electrodes and hand shield. Duty cycle: 20% at 50 Amp, output 70 Amp. Weld and ground cable length: 6 ft. Finish your projects faster and easier with Campbell Hausfeld - The Air Power Expert.
| Duty Cycle (%) | 20 |
|---|---|
| Engine Power | Electric (AC) |
| Hertz (Hz) | 60 |
| Included | Kit |
| Input Power (Volts) | 115 |
| Material Application Thickness (in.) | 0.125 |
| Maximum Rod Size (in.) | 0.125 |
| Maximum amperage output (amps) | 70 |
| Minimum amperage output (amps) | 50 |
| Minimum welding wire size (in.) | 0.078125 |
| Process Application Type | AC Stick (SMAW-AC) |
| Rated Output (Volts) | 115 |
| Returnable | 90-Day |
| Welder Type | Stick |
| Manufacturer Warranty | 5 Year Limited Warranty |
| Maximum welding wire size (in.) | .167 |
| Product Depth (in.) | 7.75 in |
| Product Height (in.) | 15.25 in |
| Product Width (in.) | 7.75 in |
