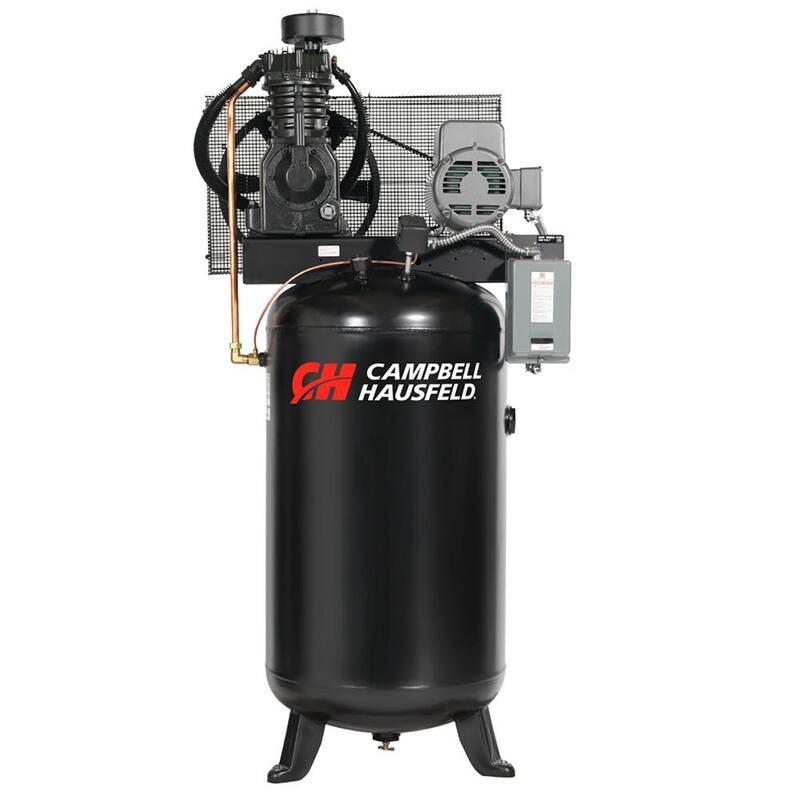

The Campbell Hausfeld 80 Gal., 5 HP, vertical, 2-stage air compressor (CE7051) is ideal for auto repair facilities and tire repair outlets. This air compressor has a high air flow of 17.2 CFM at 90 PSI to power air tools. Operating on three-phase electric power, its rugged motor drives a long-life, cast-iron, 2-stage pump that's designed to deliver more than 15,000 hours of operation. The pump head and valve plate feature an advanced design with Viton(r) high-temperature O-rings for superior high-pressure sealing when compared to paper gaskets. For smooth, low-vibration operation, the crankshaft is fabricated of ductile iron and optimally balanced.
| Air Delivery SCFM @ 40PSI | 16.7 |
|---|---|
| Air Delivery SCFM @ 90PSI | 17.2 |
| Amperage (A) | 14 A |
| Application Use | Air Brushing,Blow Cleaning,Bolting,Brad Nailing,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Inflation,Sanding,Spraying,Stapling,Surface Prep,Wrenching |
| Battery Amp Hours | No Battery |
| Charger Included | Charger Not Included |
| Compressor Tank Capacity (gal.) | 80 gal |
| Compressor Type | Industrial |
| Compressor Volume Rating | Standard |
| Compressor/Air Tool Features | Tank Pressure Gauge |
| Condition | New |
| Decibel Rating (Outdoor) | 85 dBA |
| Horsepower (hp) | 5 hp |
| Included | No additional components or accessories are included |
| Lubrication Type | Oil |
| Maximum Pressure (PSI) | 200 PSI |
| Number of Total Batteries Included | 0 |
| Phase Type | 3 Phase |
| Portable | No |
| Power Source | Electric |
| Power Type | Corded Electric |
| Product Weight (lb.) | 540 lb |
| Reconditioned | No |
| Returnable | 90-Day |
| Stage Count | Two Stage |
| Tank Material | Steel |
| Tank Style | Vertical |
| Tools Product Type | Air Compressor |
| Voltage (V) | 208-230/460v |
| Certifications and Listings | CSA Listed |
| Manufacturer Warranty | 3 year limited |
| Product Depth (in.) | 35 in |
| Product Height (in.) | 78 in |
| Product Width (in.) | 42 in |
