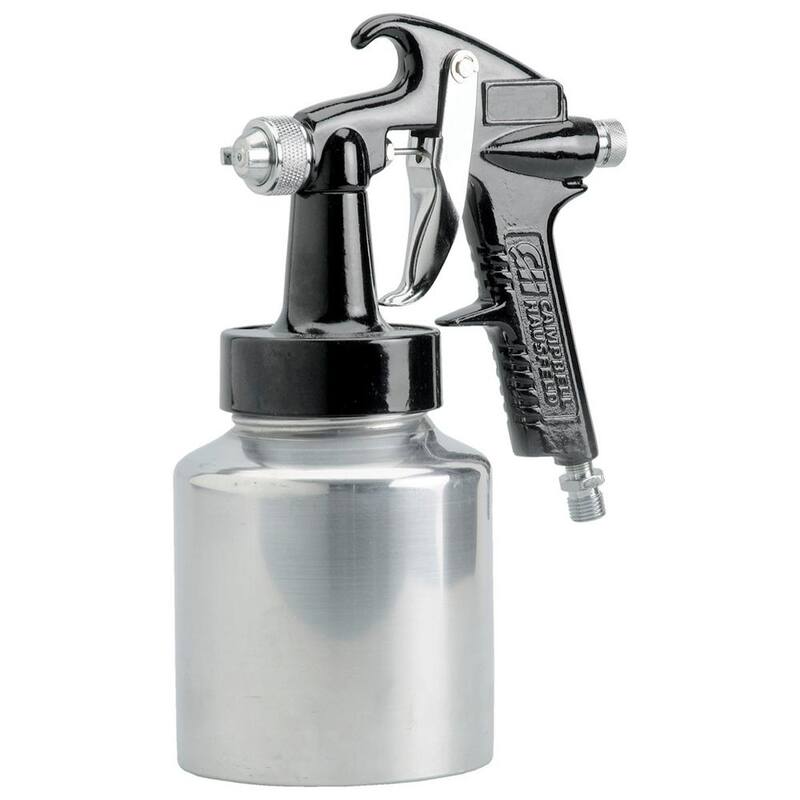

The Campbell Hausfeld general-purpose spray gun (DH420000AV) changes from siphon to pressure-feed for use with a variety of materials, including latex, lacquer and enamel paint, stain and primer. A fluid control regulates the amount of material sprayed to help deliver great results. Convertible from non-bleeder to bleeder style for use with standard or tankless air compressors; also works with paint tanks and remote canisters for larger paint jobs. Finish your projects faster and easier with Campbell Hausfeld - The Air Power Expert.
| Accessory Type | Other |
|---|---|
| Air Pressure at Paint Cap PSI | 45 |
| Air Tool Type | Paint Sprayer |
| Air consumption at recommended operating pressure (CFM) | 4 |
| Applicator/Tool Type | Paint Sprayer |
| Average air consumption @ recommended operating pressure (CFM) | 2 |
| Features | No Additional Features |
| Feed type | Siphon feed |
| Hose Included | No |
| Housing Material | Metal |
| Included | No additional components or accessories are included |
| Interior/Exterior | Exterior,Interior |
| Maximum Operating Pressure (PSI) | 50 PSI |
| Number of Spray Settings | 2 |
| Paint Cup Size | 1000cc |
| Paint Sprayers Product Type | Pneumatic |
| Performance Features | No Additional Features |
| Project Type | Painting |
| Recommended operating pressure (psi) | 40 |
| Returnable | 90-Day |
| Tool Weight (lb.) | 2.2 lb |
| Tools Product Type | Air Tool |
| Trigger Configuration | Two Finger Trigger |
| Type | General Purpose |
| Weight, Including Paint Cup (lb.) | 2.2 |
| Manufacturer Warranty | 1 year limited |
| Air Inlet Size (in.) | 1/4 in |
| Fan Size (in.) | 1.2 to 9.2 |
| Product Depth (in.) | 6.50 in |
| Product Height (in.) | 10.50 in |
| Product Length (in.) | 6.50 in |
| Product Width (in.) | 4.50 in |
| Tip Size | 1.4mm |
