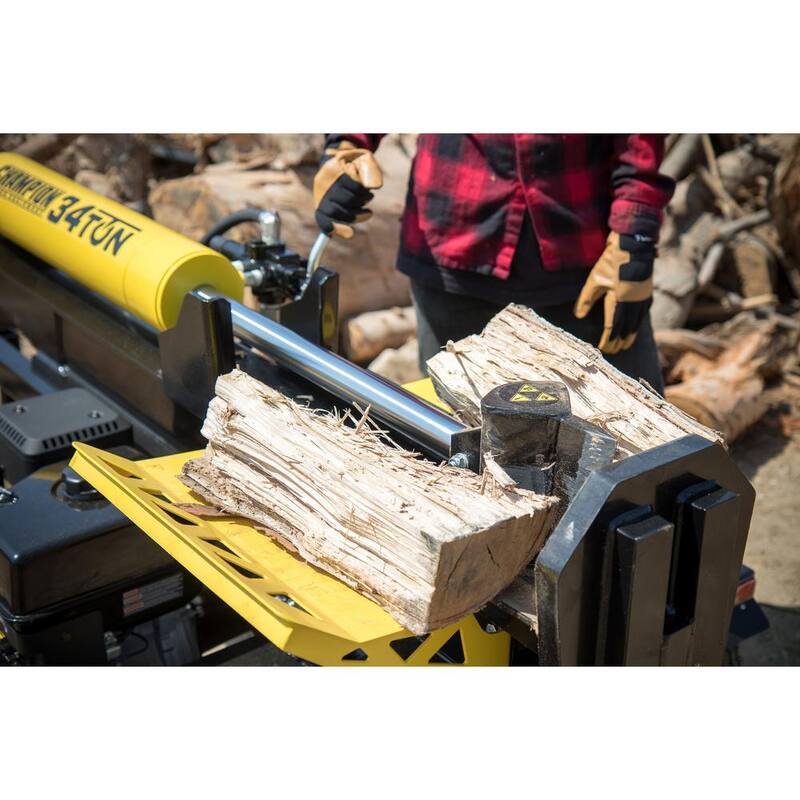

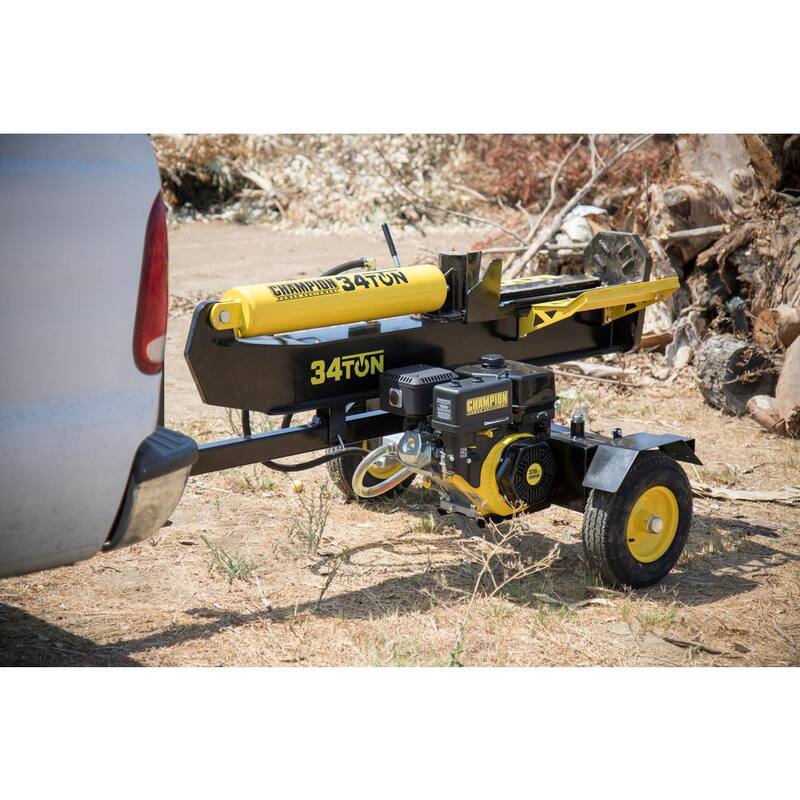

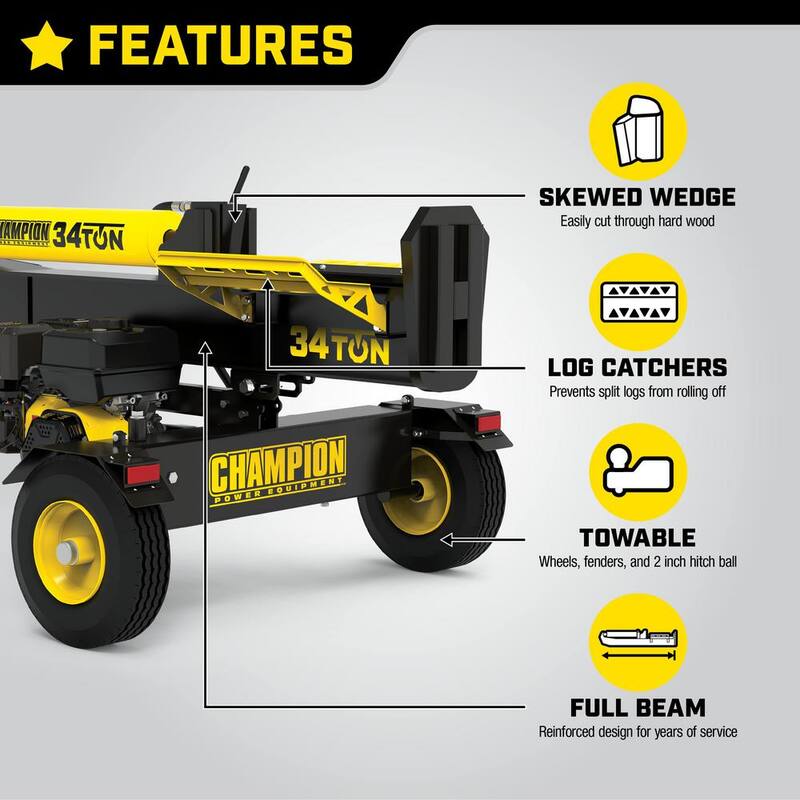

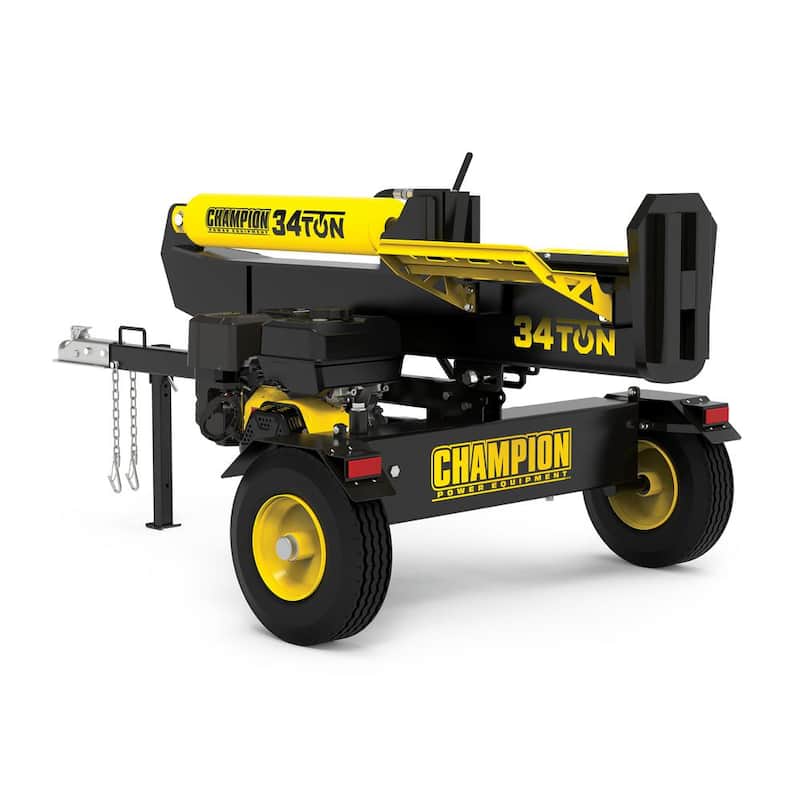

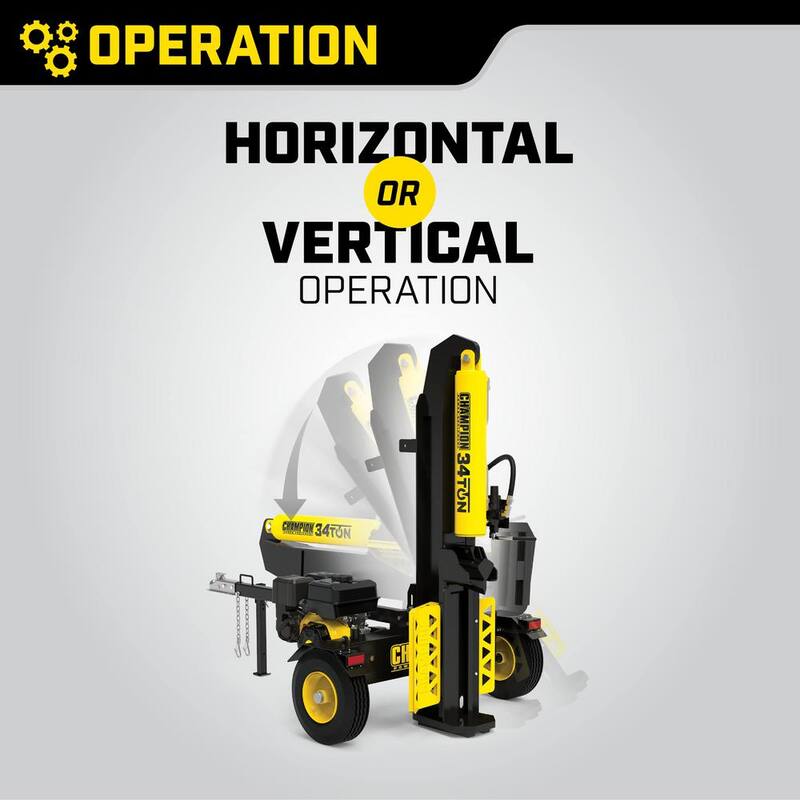

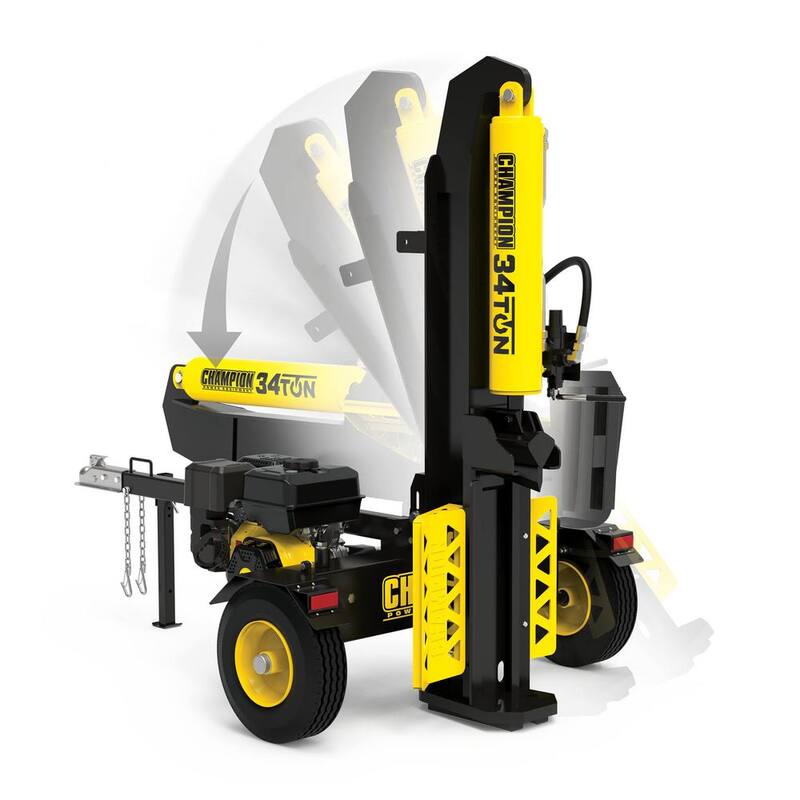

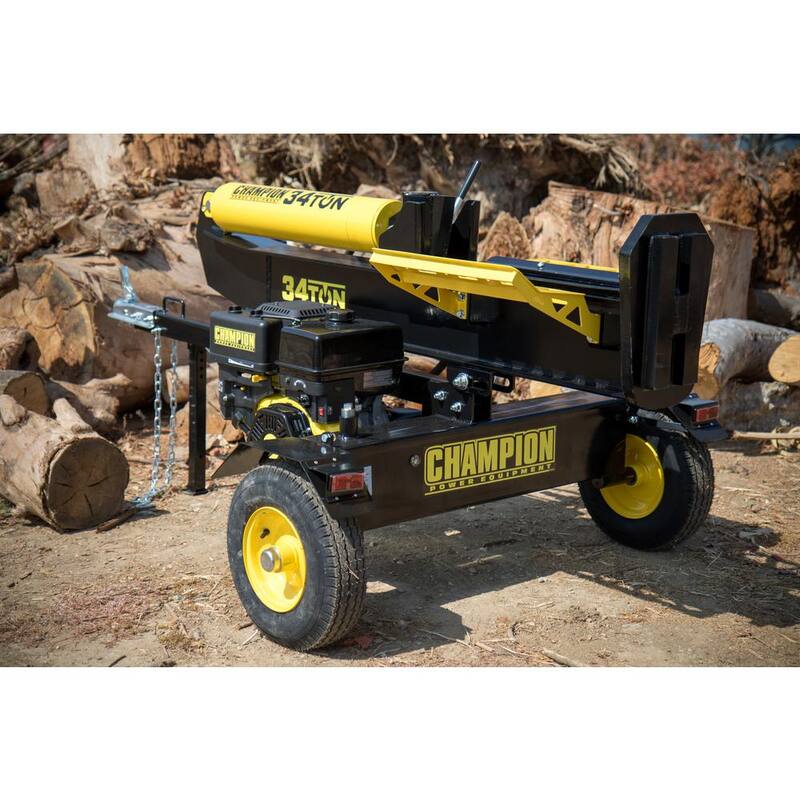

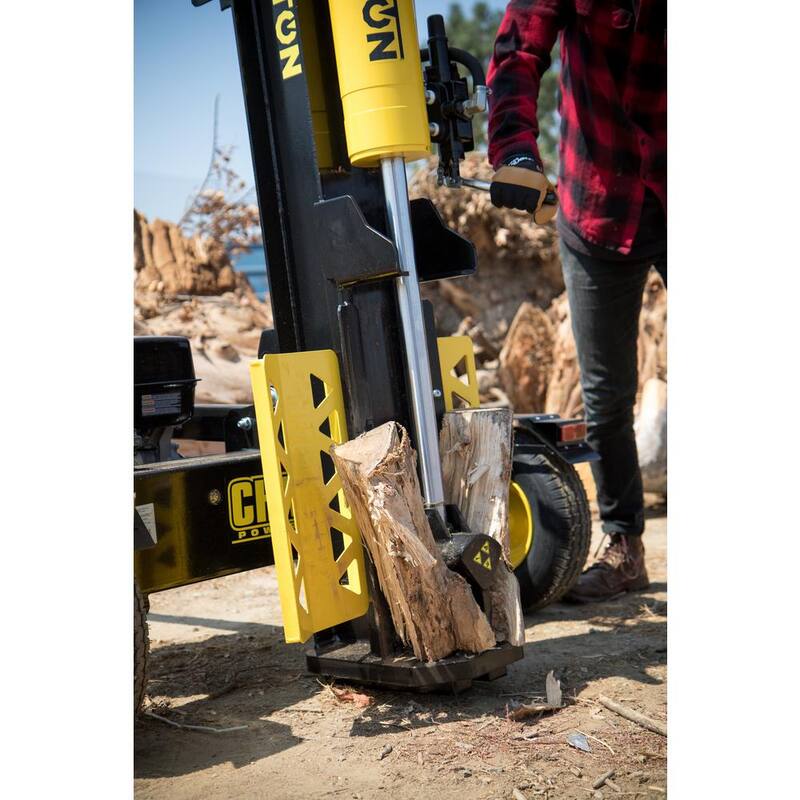

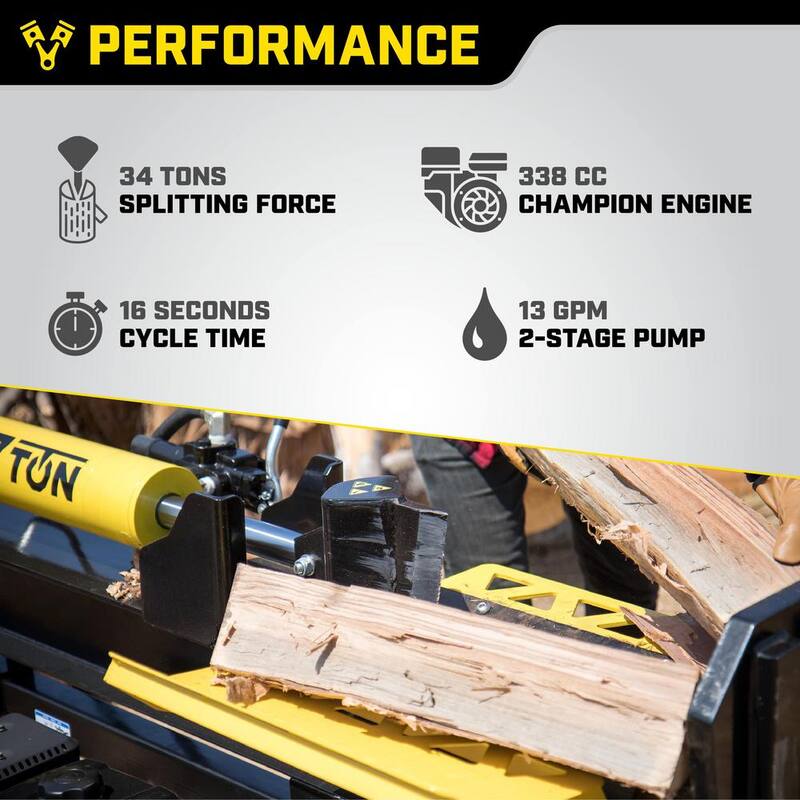

The Champion Power Equipment 100425 34-Ton Horizontal/Vertical Full Beam Hydraulic Wood Log Splitter offers relief from the back-breaking work of splitting logs. A powerful Champion 338cc single-cylinder OHV engine features, cast-iron sleeve, 1.6 Gal. fuel tank, 1.2 Qt. oil capacity (recommended 10W-30) and low-oil shutoff sensor. Never struggle with large wood logs again, as 3 simple steps converts the splitter from horizontal to vertical. Thirty-four tons of splitting force power your needs to handle wood logs up to 24 in. L, weighing up to 100 lbs. Hydraulic oil system has a 6 Gal. oil capacity and operates at 13 GPM. Capable of over 200 cycles per-hour with a 16-second cycle time, expanded operator area and dependable auto-return valve. Log catchers keep the split wood within easy reach. A 2-stage gear pump reliably adjusts flow and to increase productivity. Fits in most truck beds or towable with DOT-approved wheels for up to 45 mph, a 2 in. ball hitch coupler and an extended tongue that will fit most ATV/UTV towing applications. Hassle free with included oil funnel, 10-Watt-30 engine oil and hydraulic oil. (Note: unit comes assembled when purchased in-store, units ordered online come unassembled even if picked up in-store). EPA certified and CARB compliant. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and free lifetime technical support.
| Condition |
New |
| Cycle time (sec.) |
16 |
| Engine Cycles |
4 Cycle |
| Engine Displacement (cc) |
338 |
| Engine Make |
OEM Branded Engine |
| Engine Torque (ft.-lb.) |
15.4 |
| Engine Type |
4-stroke |
| Features |
Log Catchers,Portable |
| Force Type |
Hydraulic |
| Fuel Tank Capacity (gallons) |
1.6 gal (US) |
| Includes Storage Cover |
Without Storage Cover |
| Log Splitter Power Type |
Gas |
| Power Type |
Gas |
| Product Weight (lb.) |
551.6 lb |
| Reconditioned |
No |
| Returnable |
30-Day |
| Splitting force (tons) |
34 ton |
| Start Type |
Recoil Start |
| Tow Capability |
Towable |
| Vertical/Horizontal |
Vertical / Horizontal |
| Wheels |
Yes |
| Manufacturer Warranty |
2-Year Limited Warranty |
| Maximum log diameter (in.) |
12 |
| Maximum log length (in.) |
24 |

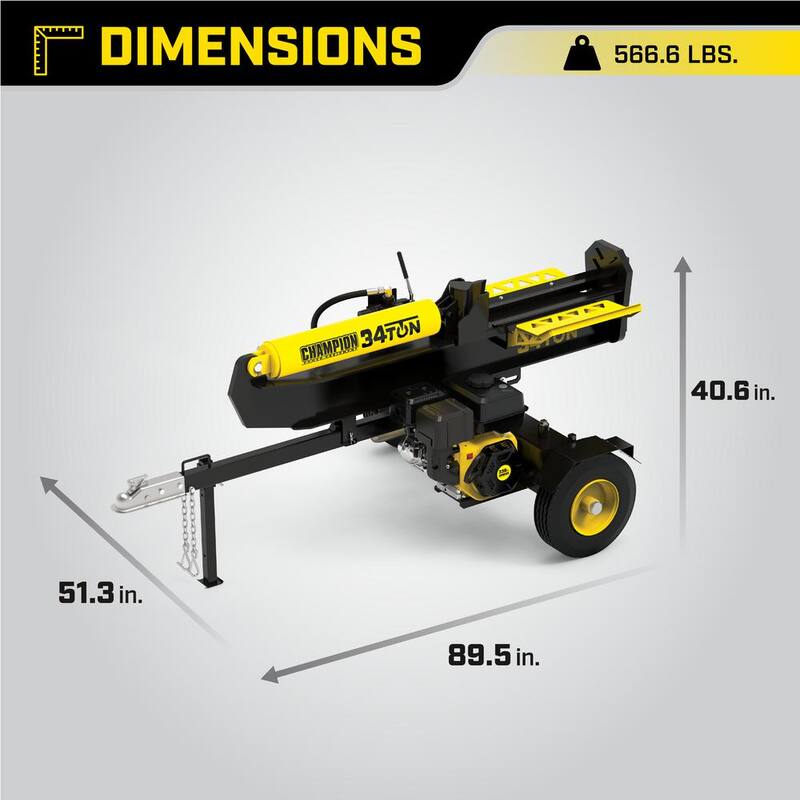

| Product Depth (in.) |
89.4 in |
| Product Height (in.) |
40.2 in |
| Product Width (in.) |
51.2 in |
