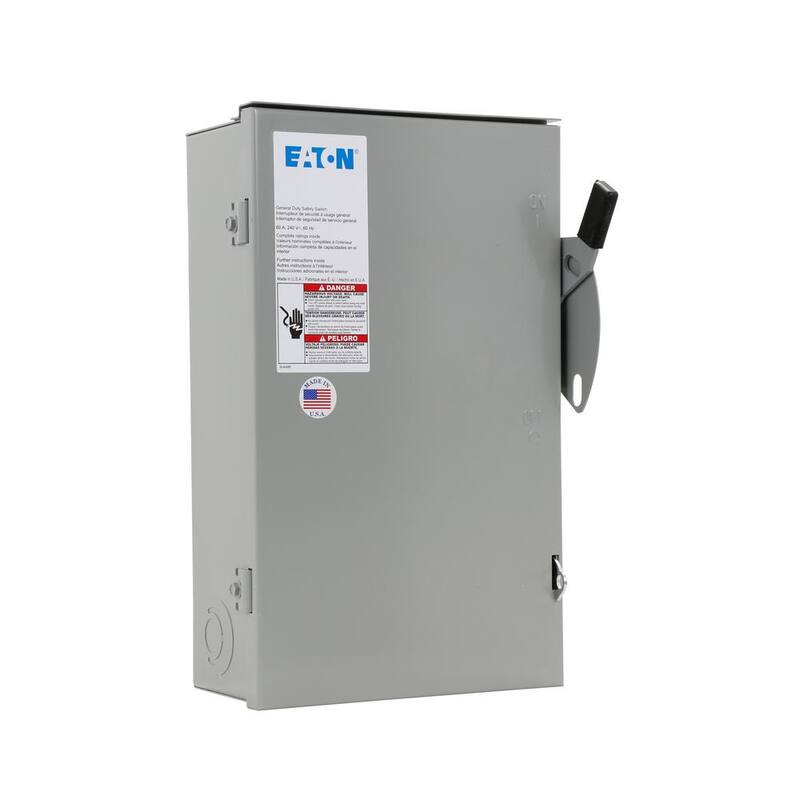

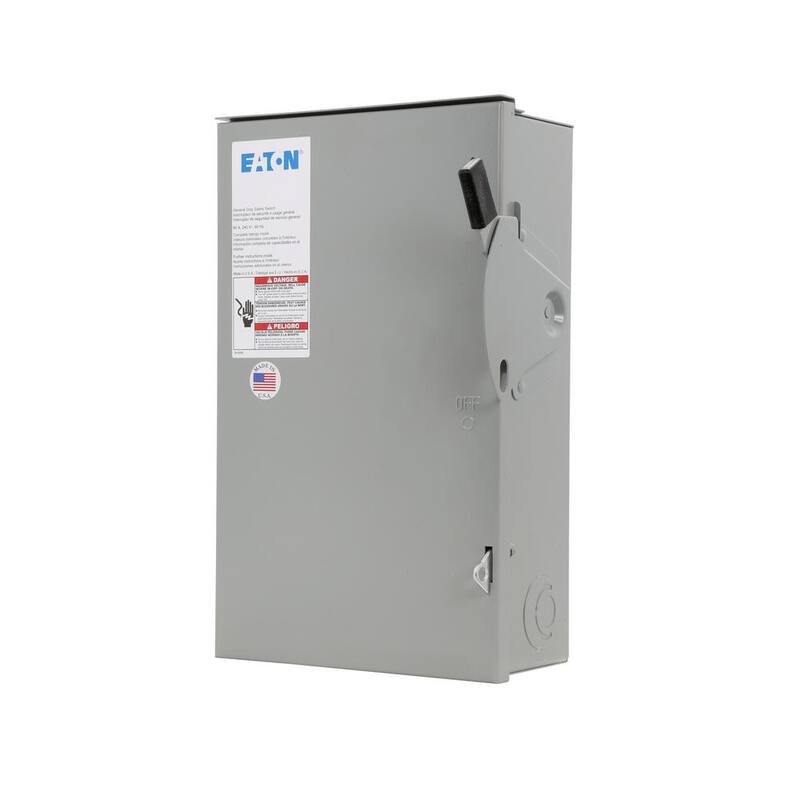

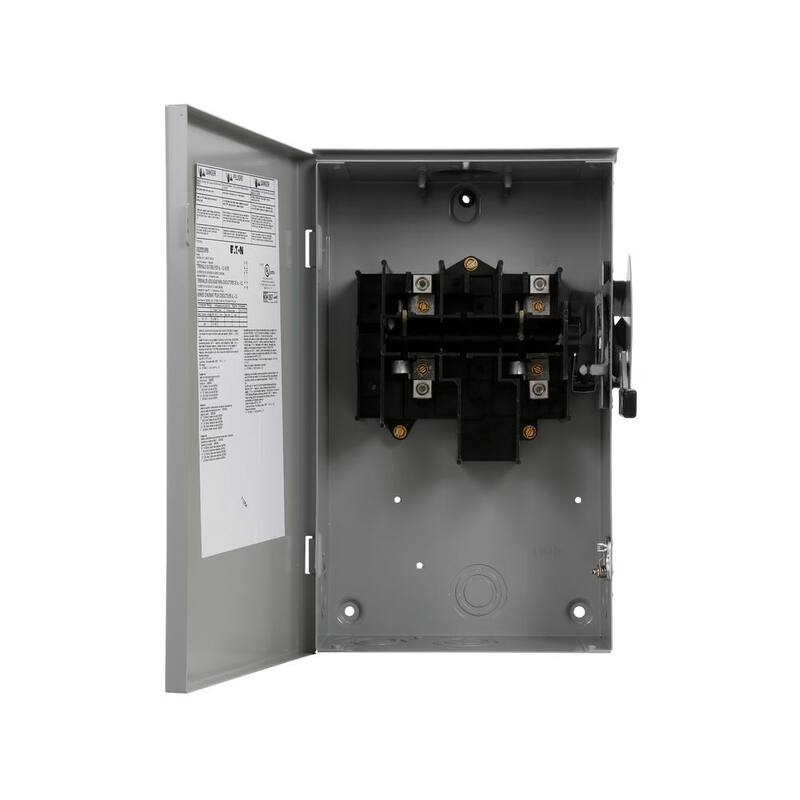

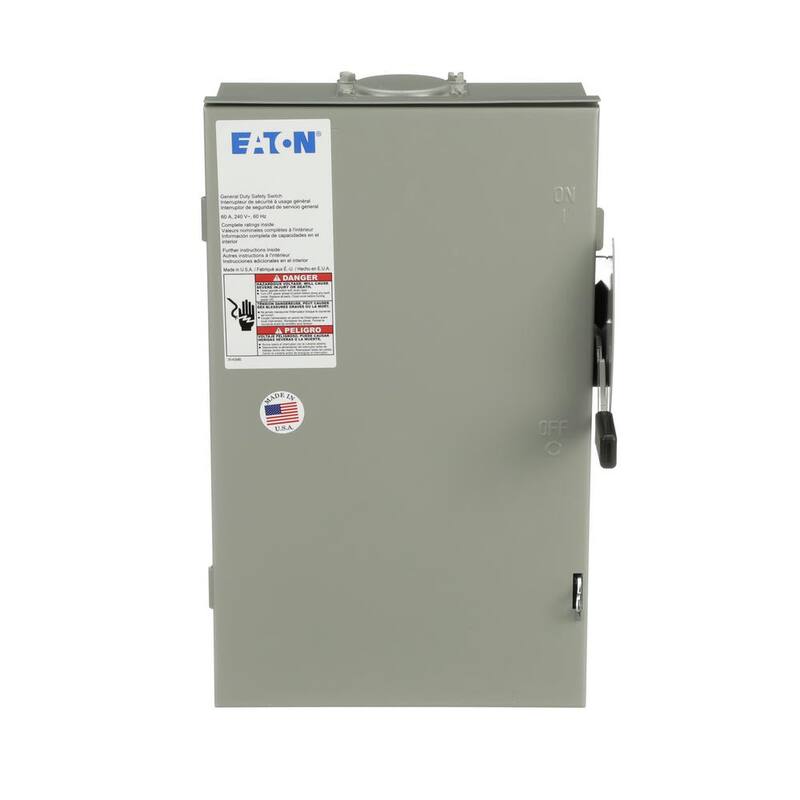

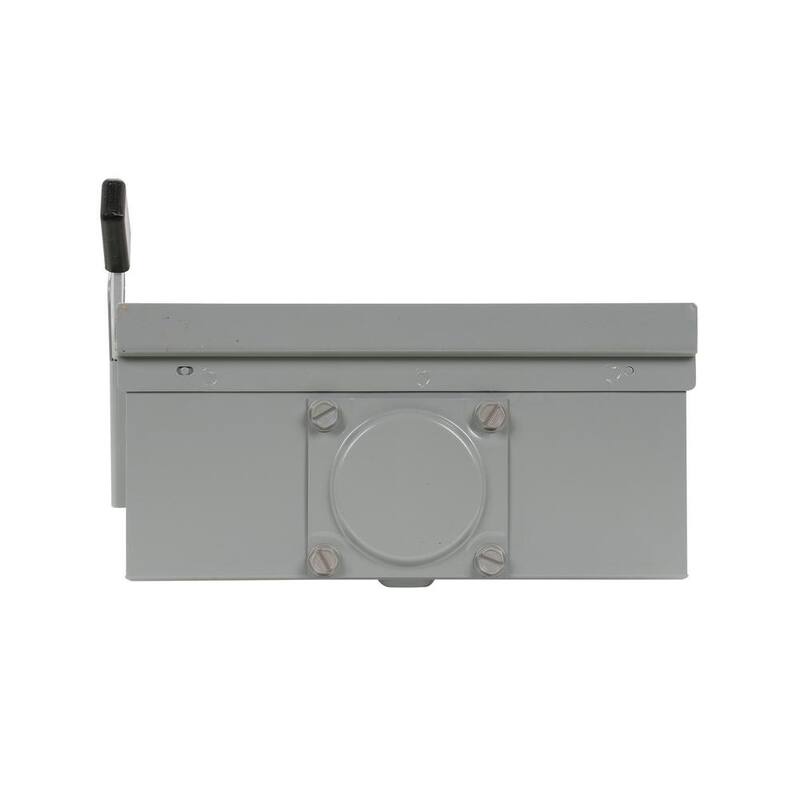

Non-fusible safety switches provide a means to manually connect or disconnect the load from the source. Switches are load break ready. This is a 60 Amp general duty non-fusible safety switch rated for outdoor use.
| Automatic/Manual | Manual |
|---|---|
| Disconnect Type | Safety Switch |
| Electrical Product Type | Safety Switch |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Fused | Non-Fused |
| Indoor/Outdoor | Outdoor |
| Inlet Configuration | No Receptacle |
| Maximum Amperage (A) | 60 A |
| Maximum Wattage (W) | 0 W |
| NEMA Configuration | NEMA 3R |
| Phase Type | 1 Phase |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 9 lb |
| Returnable | 90-Day |
| Type | Safety Switch |
| Voltage (V) | 240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 1 Year |
| Product Depth (in.) | 13.75 in |
| Product Height (in.) | 7.5 in |
| Product Width (in.) | 9.5 in |
