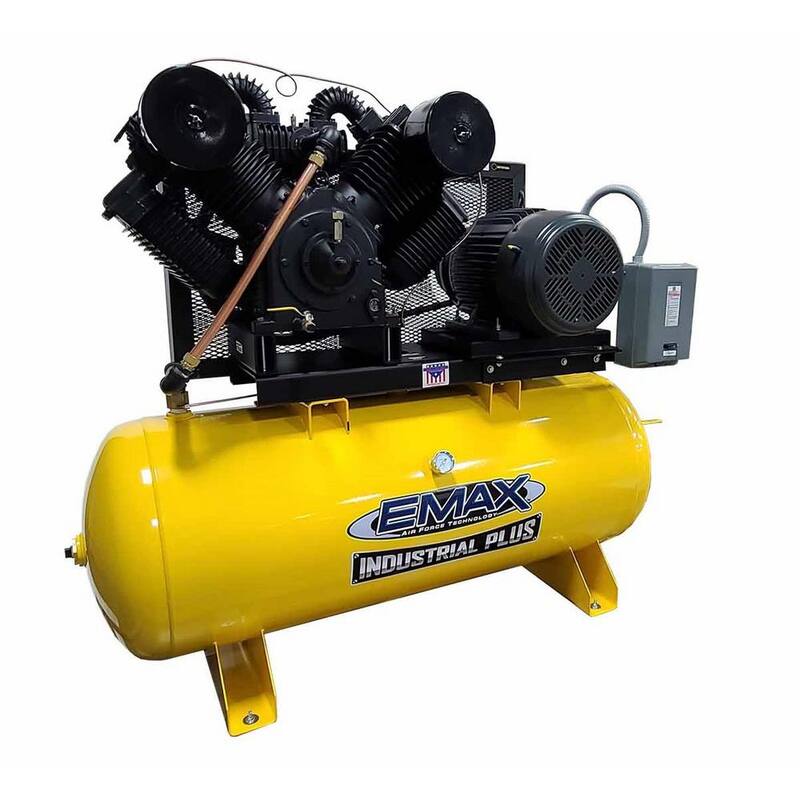

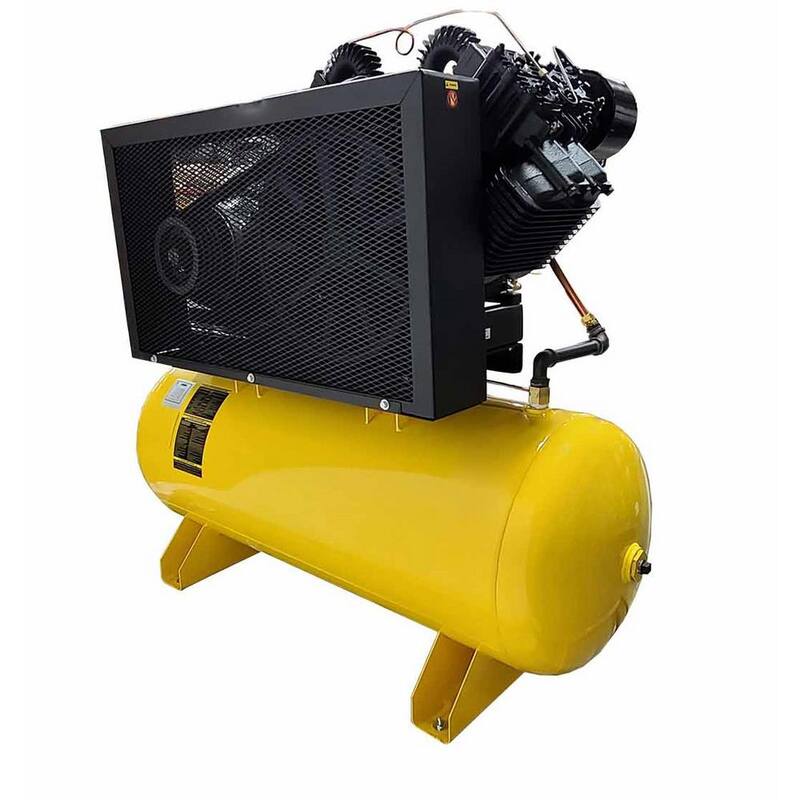

The EMAX 25HP 2 Stage, 3 Phase, 120 gal. Horizontal piston air compressors are designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers BIG air with 89CFM at 100 PSI, with a 175 PSI maximum. Our industrial Plus series features industrial grade TEFC motors, magnetic starters, automatic timed tank drain, powder coated ASME tank with 200PSI rating, along with continuous run functionality all paired with our all cast iron 70,000 Hr. rated reciprocating splash lubricated pump. All backed by the best warranty in the industry!
| Air Delivery SCFM @ 40PSI | 86 |
|---|---|
| Air Delivery SCFM @ 90PSI | 84 |
| Amperage (A) | 60 A |
| Application Use | Air Brushing,Blow Cleaning,Bolting,Brad Nailing,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Stapling,Surface Prep,Wrenching |
| Battery Amp Hours | No Battery |
| Charger Included | Charger Not Included |
| Compressor Tank Capacity (gal.) | 120 gal |
| Compressor Type | Industrial |
| Compressor Volume Rating | Not Measured |
| Compressor/Air Tool Features | Combo Kit |
| Condition | New |
| Decibel Rating (Outdoor) | Not Measured |
| Horsepower (hp) | 25 hp |
| Included | No additional components or accessories are included |
| Lubrication Type | Oil |
| Maximum Pressure (PSI) | 175 PSI |
| Number of Total Batteries Included | 0 |
| Phase Type | 3 Phase |
| Portable | No |
| Power Source | Electric |
| Power Type | Corded Electric |
| Product Weight (lb.) | 1703 lb |
| Reconditioned | No |
| Returnable | 90-Day |
| Stage Count | Two Stage |
| Tank Material | Steel |
| Tank Style | Horizontal |
| Tools Product Type | Air Compressor |
| Voltage (V) | 460v |
| Certifications and Listings | No Certifications or Listings |
| Manufacturer Warranty | 1 Year Standard, 5 Year Extended, Lifetime Extended |
| Product Depth (in.) | 61 in |
| Product Height (in.) | 72 in |
| Product Width (in.) | 97 in |
