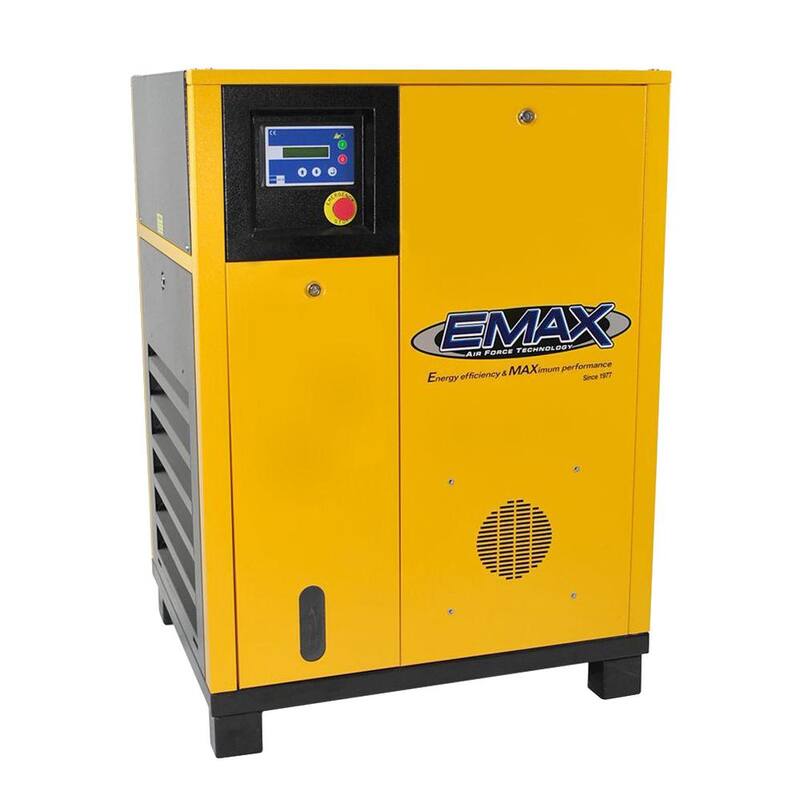

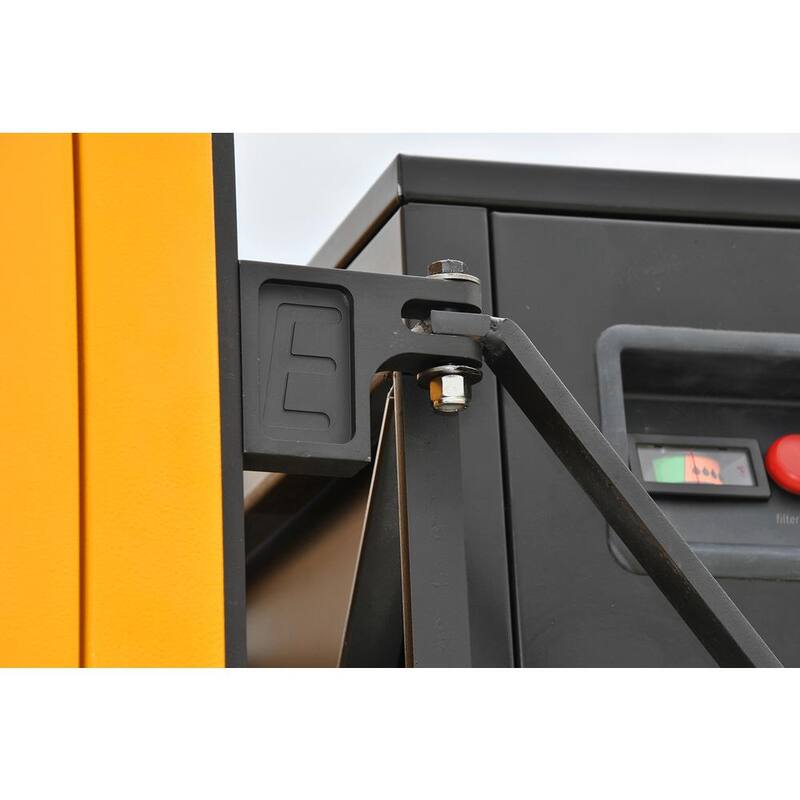

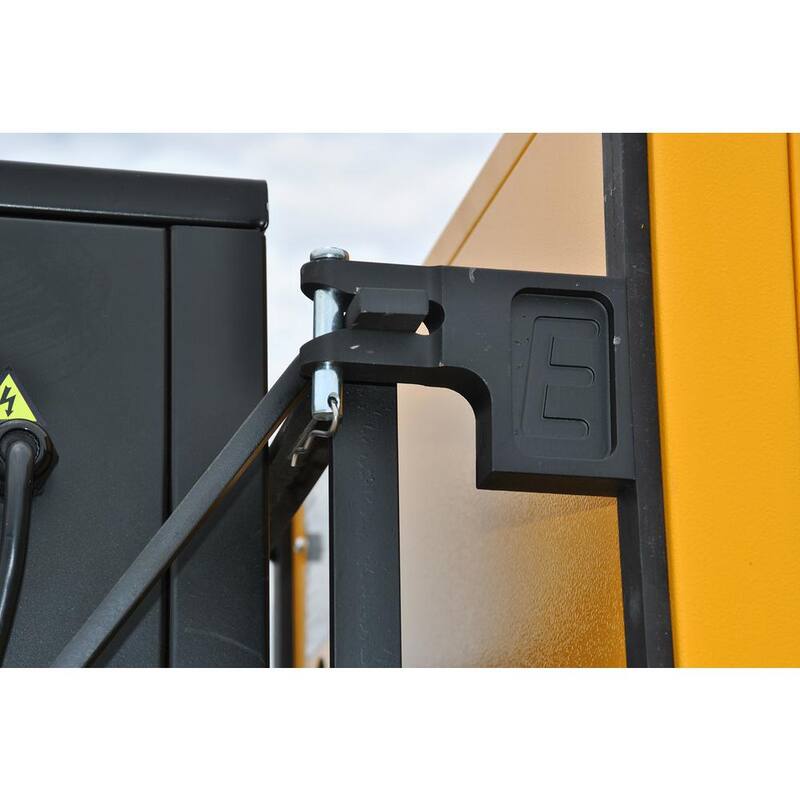

The EMAX line of Air Compressors requires less maintenance, service and downtime than any other compressors in the Air Industry. All products are designed with exacting tolerance and specifications to deliver all the power that is needed at the Jobsite, Garage or Shop for extreme performance all day and every day. The EMAX Compressor Rotary Screws are good for 70,000 running hours. The EMAX Rotary Series features Soft-Start design which eliminates both hard-starts and full-load starts, maximizing energy efficiency, ensuring the performance and longevity of your equipment, and protecting your power network. This EMAX Rotary Screw Compressor includes the patented swing arm dryer with coalescing filter and the rotary screw unit. The premium quality motor ensures a soft-start by limiting the initial in-rush amp draw upon start and gradually applying full voltage until the motor is at full speed and running load. This maximizes energy efficiency, protects your contactors and motor, and eliminates the adverse effects of hard-start current surges. EMAX Rotary Screw Compressors are controlled by a Programmable Logistic Controller (PLC) Based Control System. This Controller is operated by an easy-to-use touch pad interface. The PLC will monitor and display critical data pertaining to the compressor's performance and provide emergency shut-down if necessary to prevent damage to the unit. 10 year warranty.
| Air Delivery SCFM @ 40PSI | 34 |
|---|---|
| Air Delivery SCFM @ 90PSI | 32 |
| Amperage (A) | 24 A |
| Application Use | Air Brushing,Blow Cleaning,Bolting,Brad Nailing,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Stapling,Surface Prep,Wrenching |
| Battery Amp Hours | No Battery |
| Charger Included | Charger Not Included |
| Compressor Tank Capacity (gal.) | 0 gal |
| Compressor Type | Industrial |
| Compressor Volume Rating | Not Measured |
| Compressor/Air Tool Features | Tank Pressure Gauge |
| Condition | New |
| Decibel Rating (Outdoor) | Not Measured |
| Horsepower (hp) | 10 hp |
| Included | No additional components or accessories are included |
| Lubrication Type | Oil |
| Maximum Pressure (PSI) | 145 PSI |
| Number of Total Batteries Included | 0 |
| Phase Type | 3 Phase |
| Portable | No |
| Power Source | Electric |
| Power Type | Corded Electric |
| Product Weight (lb.) | 1725.000 lb |
| Reconditioned | No |
| Returnable | 30-Day |
| Stage Count | Two Stage |
| Tank Material | Steel |
| Tank Style | Horizontal |
| Tools Product Type | Air Compressor |
| Voltage (V) | 208v |
| Certifications and Listings | No Certifications or Listings |
| Manufacturer Warranty | 1 Year Standard, extended 5 YR or Pump Lifetime |
| Product Depth (in.) | 80 in |
| Product Height (in.) | 80 in |
| Product Width (in.) | 38 in |
