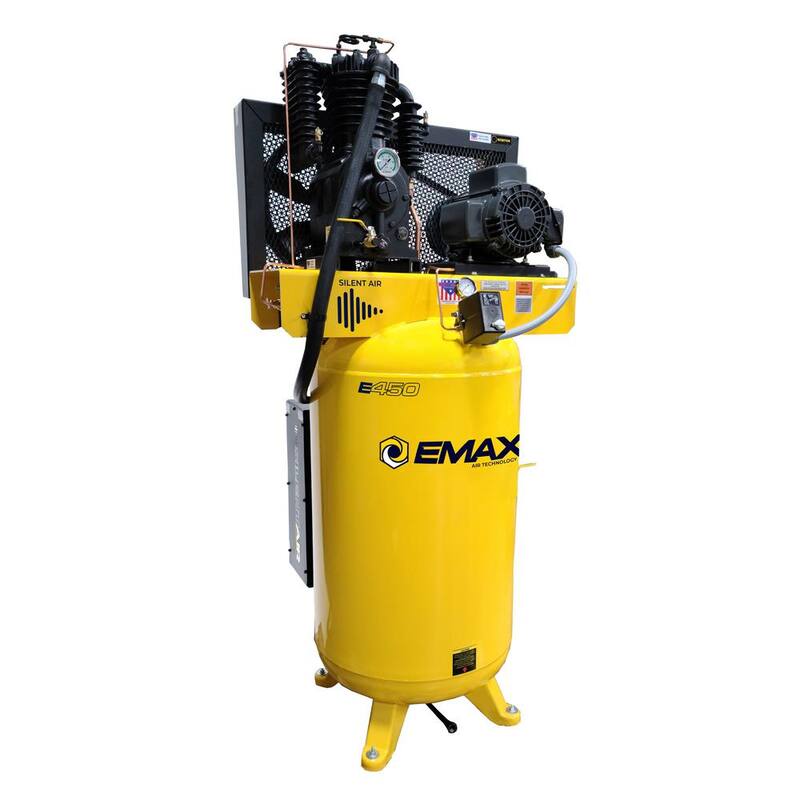

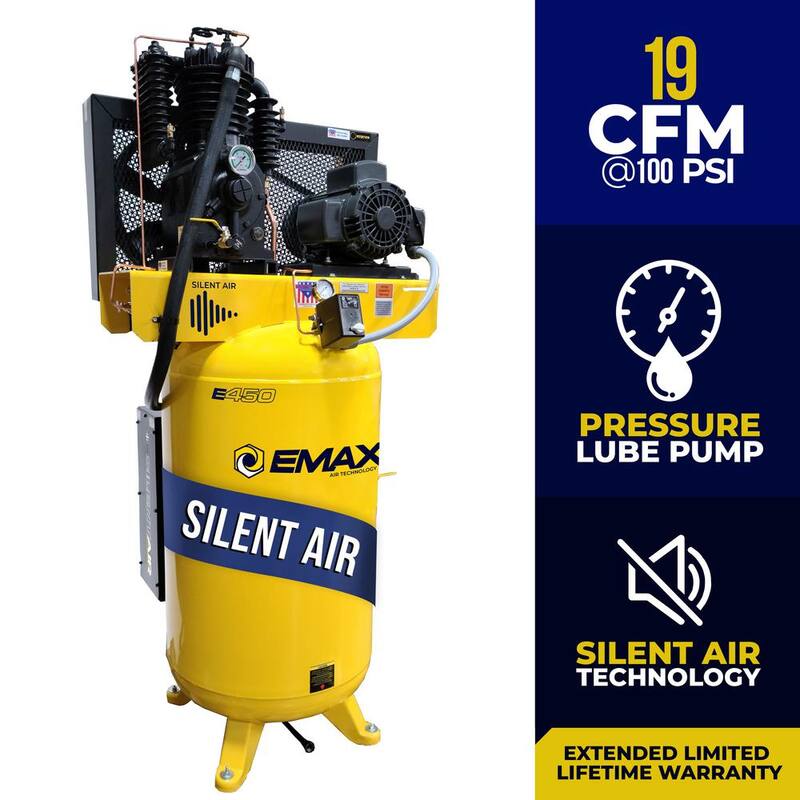

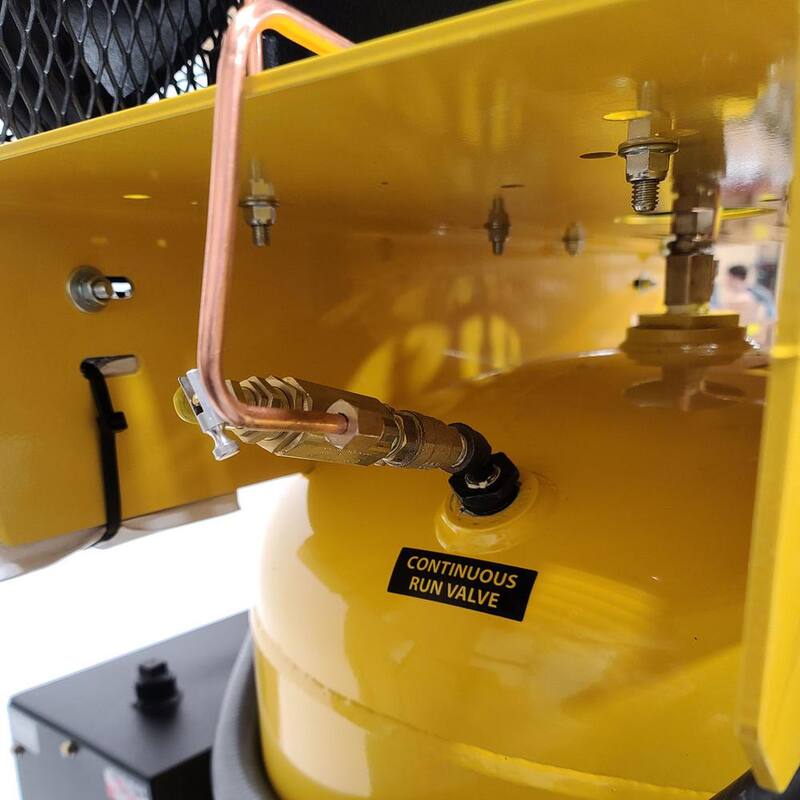

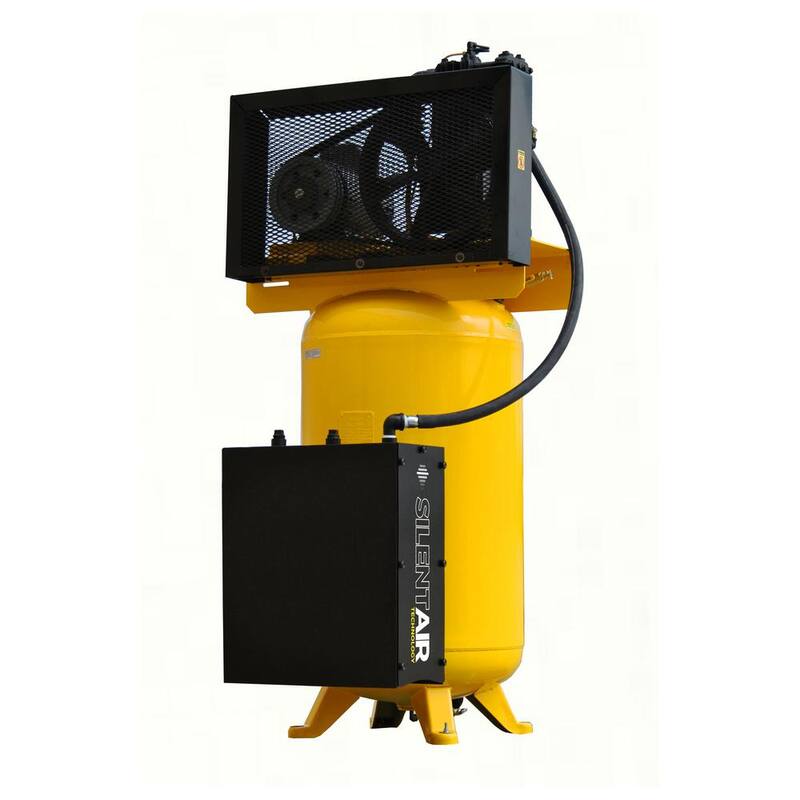

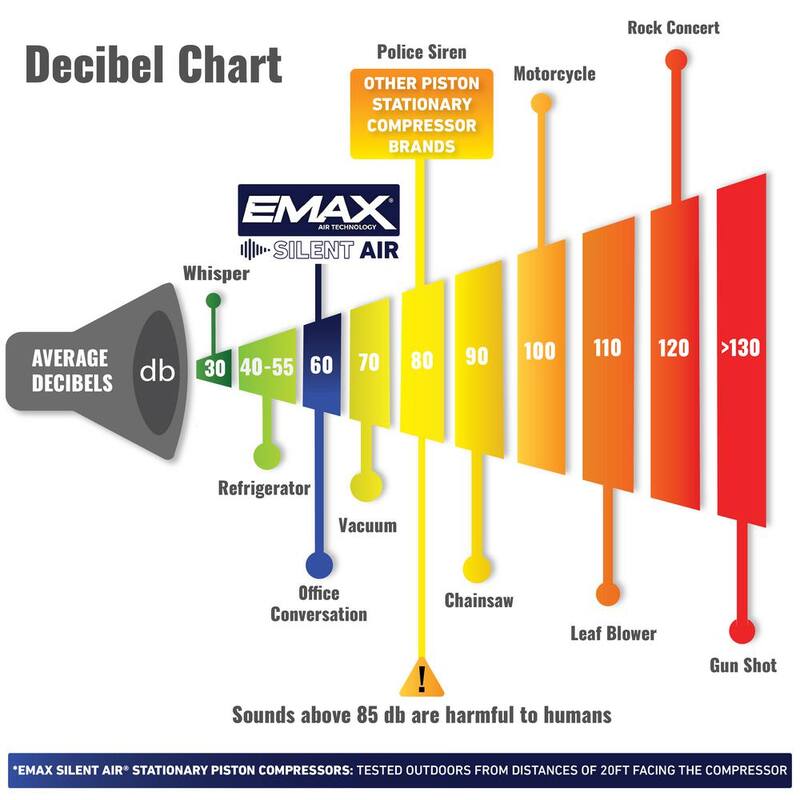

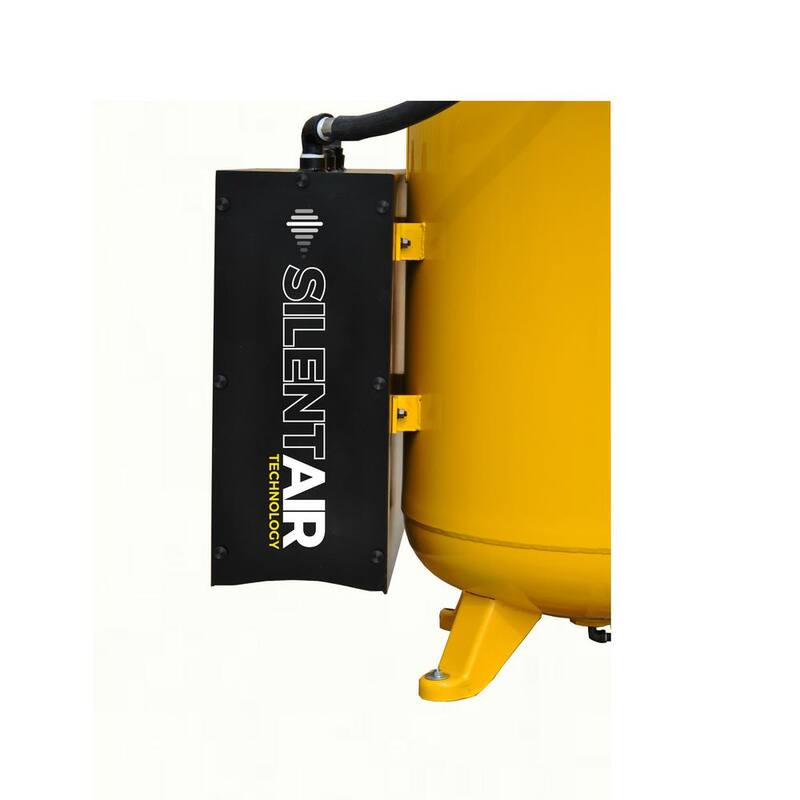

EMAX Compressor Tools and Equipment deliver overwhelming performance to ensure they meet the needs of the most demanding environments. All products are designed with exacting tolerance and specifications to deliver all the power needed at the Jobsite, Garage or Shop for extreme performance. This EMAX Industrial Plus 5 HP 2 Stage Inline 1 Phase vertical 80 gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 19 SCFM @ 100 PSI, top PSI of 175. Our unit features industrial TEFC electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Whisper100 silent air system already installed. The Patented Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry!
| Air Delivery SCFM @ 40PSI | 24 |
|---|---|
| Air Delivery SCFM @ 90PSI | 17.1 |
| Amperage (A) | 24 A |
| Application Use | Air Brushing,Blow Cleaning,Bolting,Brad Nailing,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Stapling,Surface Prep,Wrenching |
| Battery Amp Hours | No Battery |
| Charger Included | Charger Not Included |
| Compressor Tank Capacity (gal.) | 80 gal |
| Compressor Type | Industrial |
| Compressor Volume Rating | Not Measured |
| Compressor/Air Tool Features | Tank Pressure Gauge |
| Condition | New |
| Decibel Rating (Outdoor) | Not Measured |
| Horsepower (hp) | 5 hp |
| Included | No additional components or accessories are included |
| Lubrication Type | Oil |
| Maximum Pressure (PSI) | 175 PSI |
| Number of Total Batteries Included | 0 |
| Phase Type | 1 Phase |
| Portable | No |
| Power Source | Electric |
| Power Type | Corded Electric |
| Product Weight (lb.) | 850 lb |
| Reconditioned | No |
| Returnable | 30-Day |
| Stage Count | Two Stage |
| Tank Material | Steel |
| Tank Style | Vertical |
| Tools Product Type | Air Compressor |
| Voltage (V) | 208/230v |
| Certifications and Listings | CSA Certified,ETL Listed,UL Certified |
| Manufacturer Warranty | 1 Year Standard, 5 Year Extended, Lifetime Extended |
| Product Depth (in.) | 42 in |
| Product Height (in.) | 75 in |
| Product Width (in.) | 34 in |
