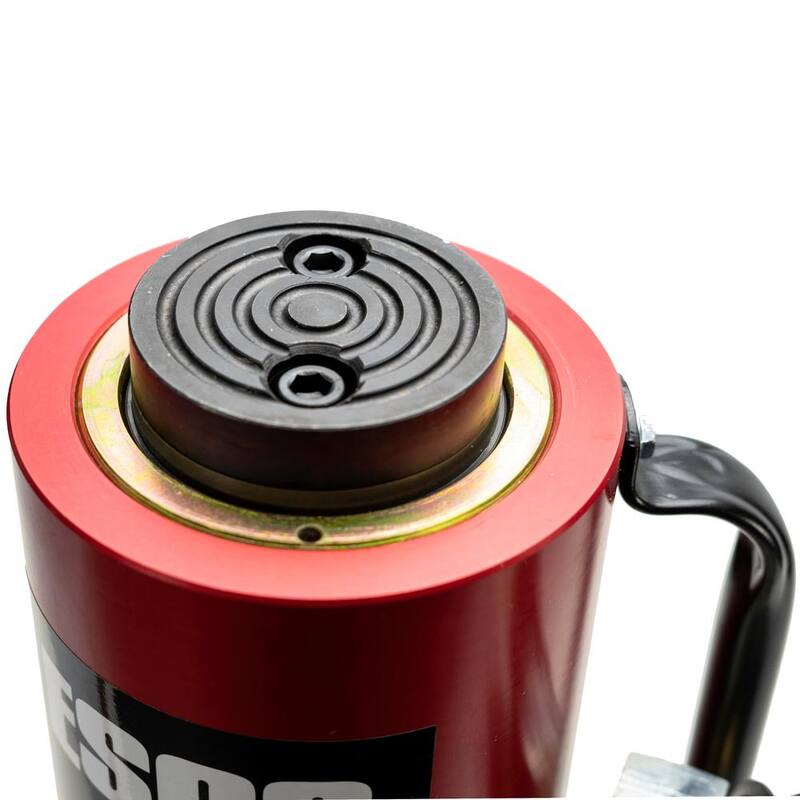

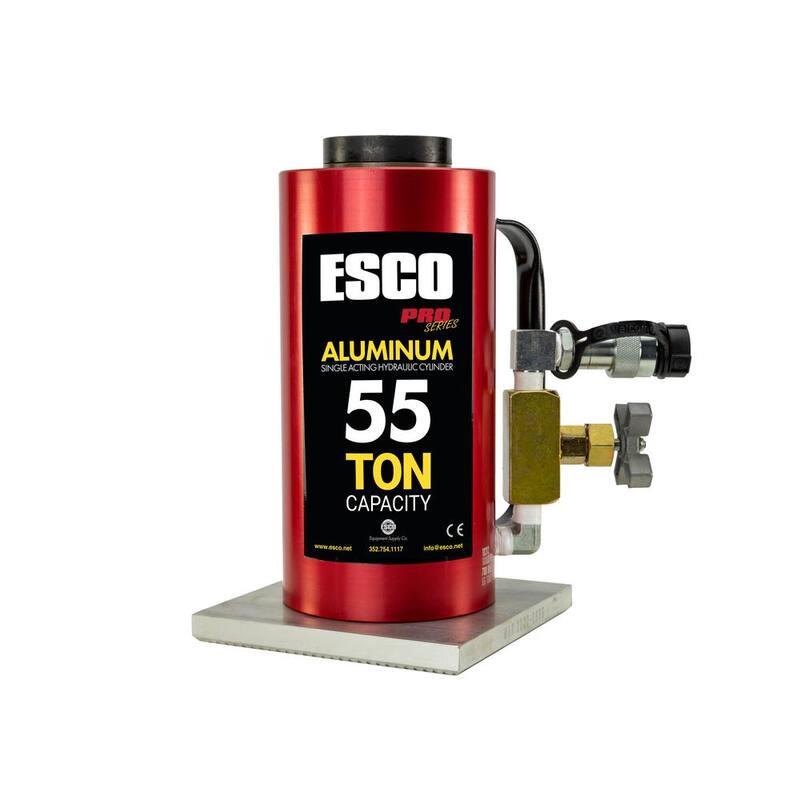

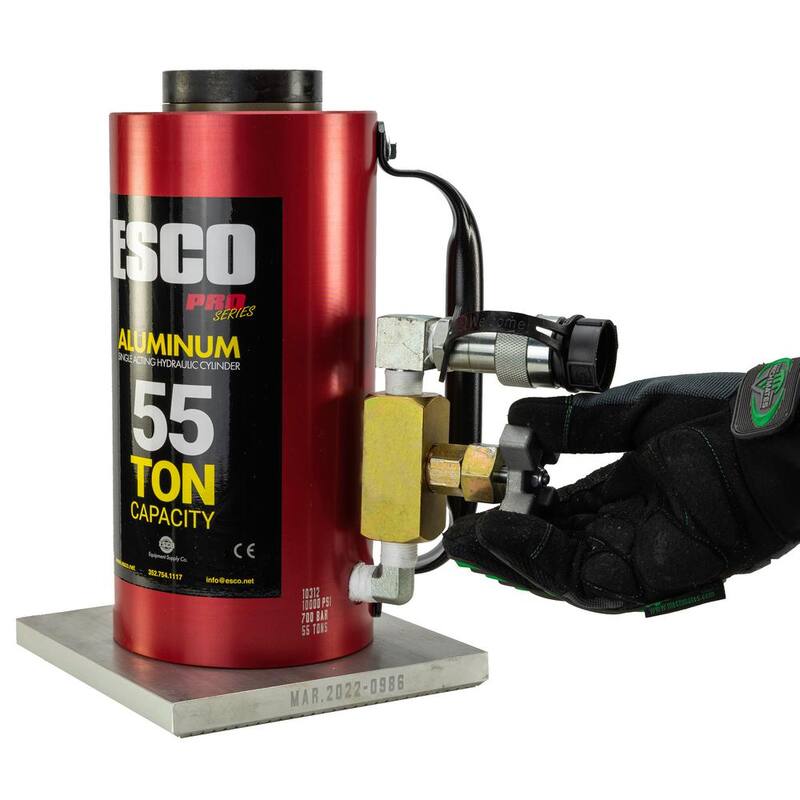

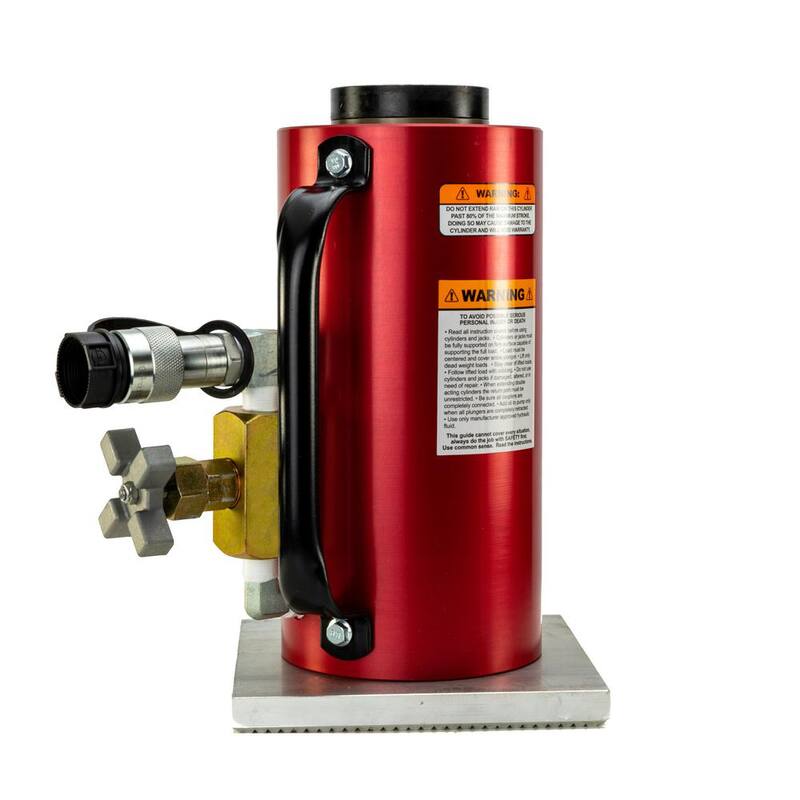

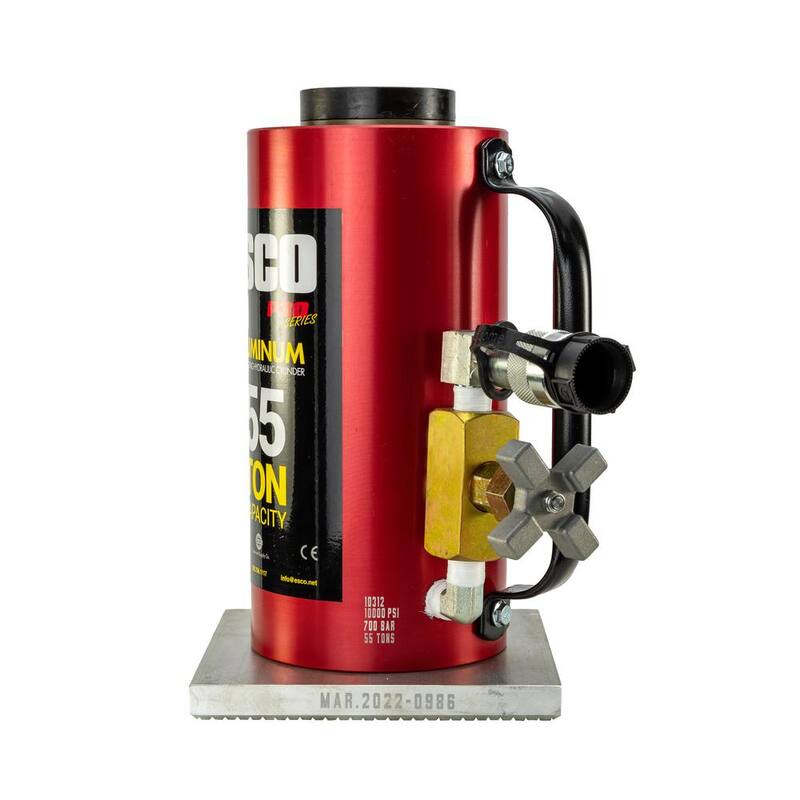

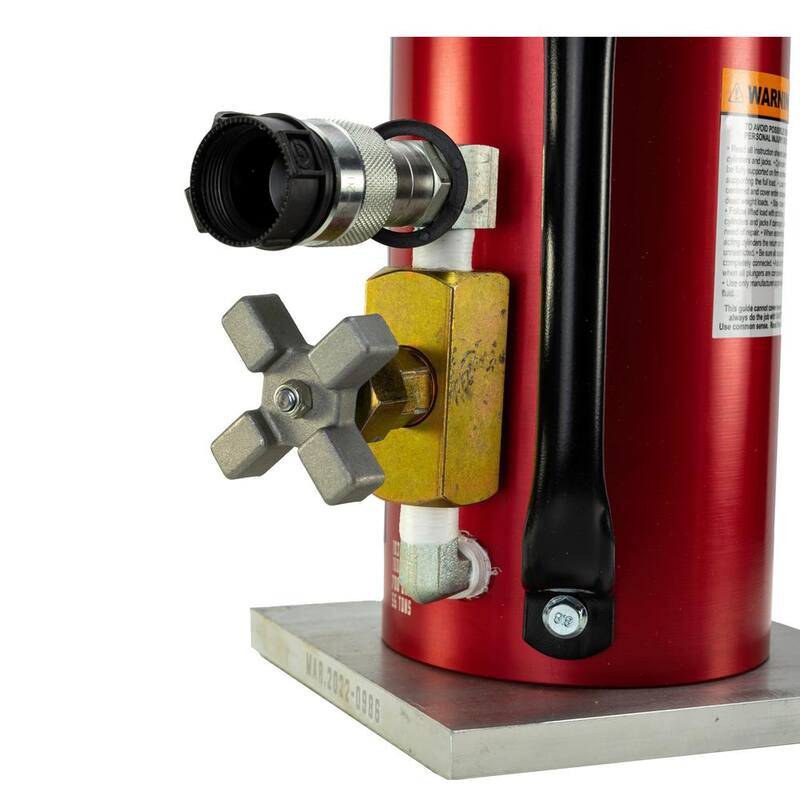

The ESCO Pro Series 55 Ton Hydraulic Cylinder Jack (Model 10312) works to lift loads up to 110,000 lbs. This single acting spring loaded hydraulic cylinder is designed to be compact and lightweight for easy positioning with attached handle. Unit includes shut-off valve which allows the pump to be disconnected while the ram is extended. Unit designed with new advanced stop ring and wiper for improved stability and piston rod support which will help to reduce point loading and internal contamination.
| Features | Low Profile,Quick Lift |
|---|---|
| Frame Material | Aluminum |
| General Part Type | Hydraulic Jack |
| Included | Foot Plate,Handle,Hardware,Jack and Jack Stands |
| Material | Aluminum |
| Maximum Lift Height (in.) | 18 in |
| Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 12 |
| Product Weight (lb.) | 33 lb |
| Returnable | 90-Day |
| Saddle Diameter (in.) | 3 |
| Weight Capacity (lb.) | 110000 lb |
| Manufacturer Warranty | 3 year warranty |
| Base Length (in.) | 8 |
| Base Width (in.) | 8 |
| Collapsed height (in.) | 12 |
| Handle Length (in.) | 8 in |
| Product Depth (in.) | 11 in |
| Product Height (in.) | 12 in |
| Product Width (in.) | 8 in |
