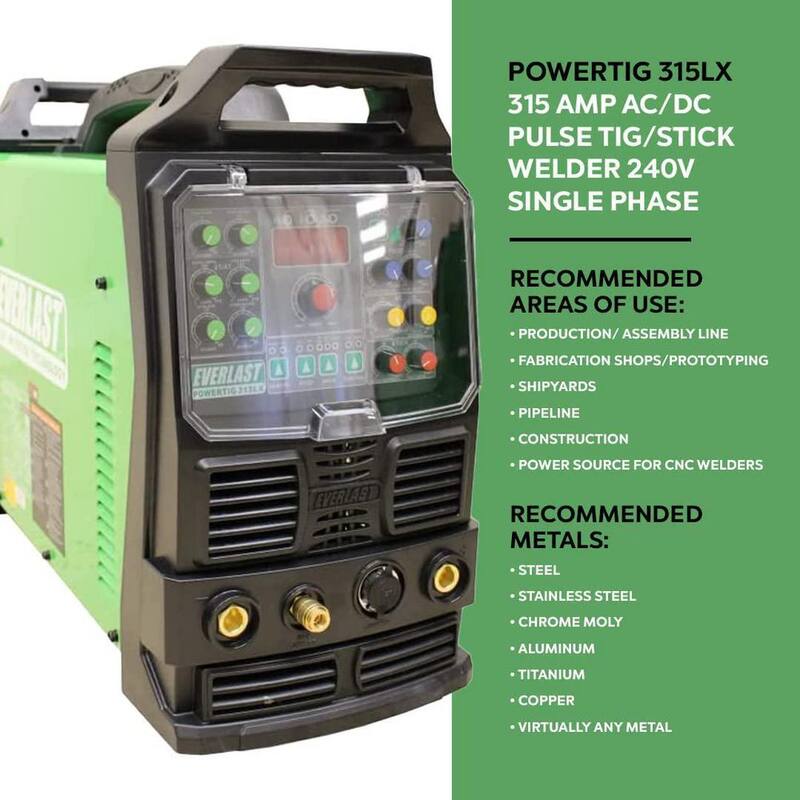

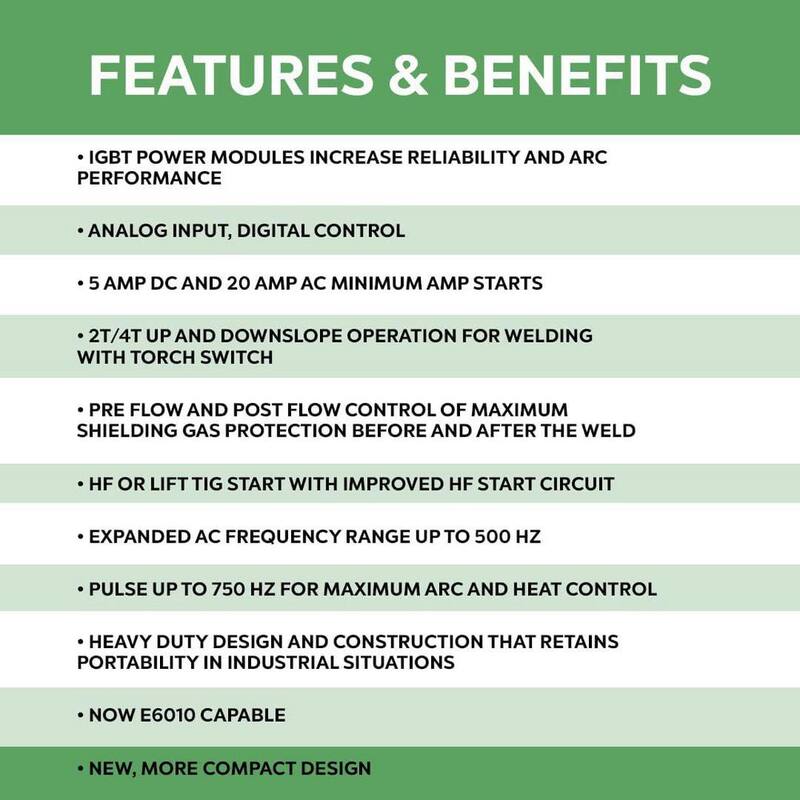

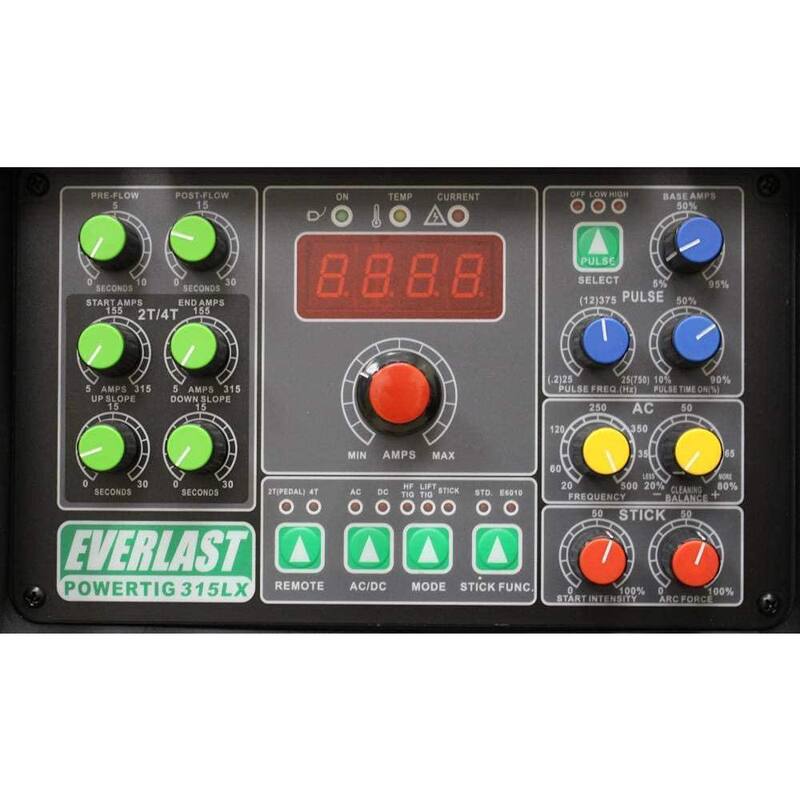

Designed for heavy commercial applications, the PowerTIG 315LX is a capable, AC/DC TIG and Stick welder with power to spare for most jobs. The IGBT inverter creates a stable smooth arc, and provides a true industrial duty cycle of 60% at 315-amp. This unit operates on 208/240-Volt 3 phase power, and is designed for production welding. The welder features a 10-amp DC start and a 20-amp AC start. The PowerTIG 315LX also offers the most power of any TIG welder in the Everlast Analog TIG. It also features a leading 20-500Hz AC frequency and a pulse frequency up to 750Hz, to keep pace with the most demanding welding requirements. This unit is also available in 480-Volt 3 phase under our special order program. (Allow 6-8 weeks for production and delivery).
| Duty Cycle (%) | 60 |
|---|---|
| Engine Power | Electric (AC) |

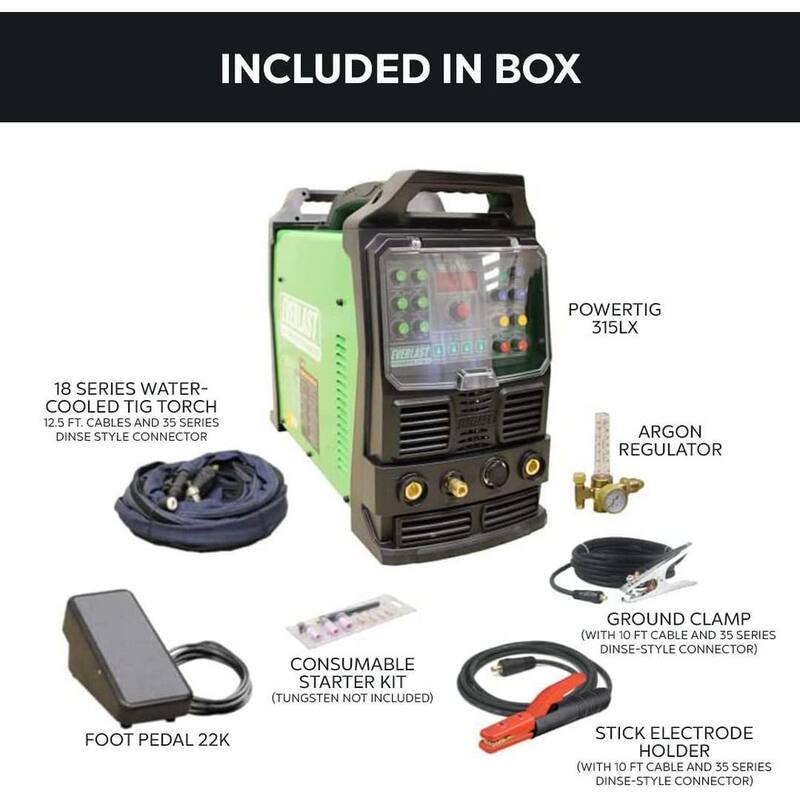

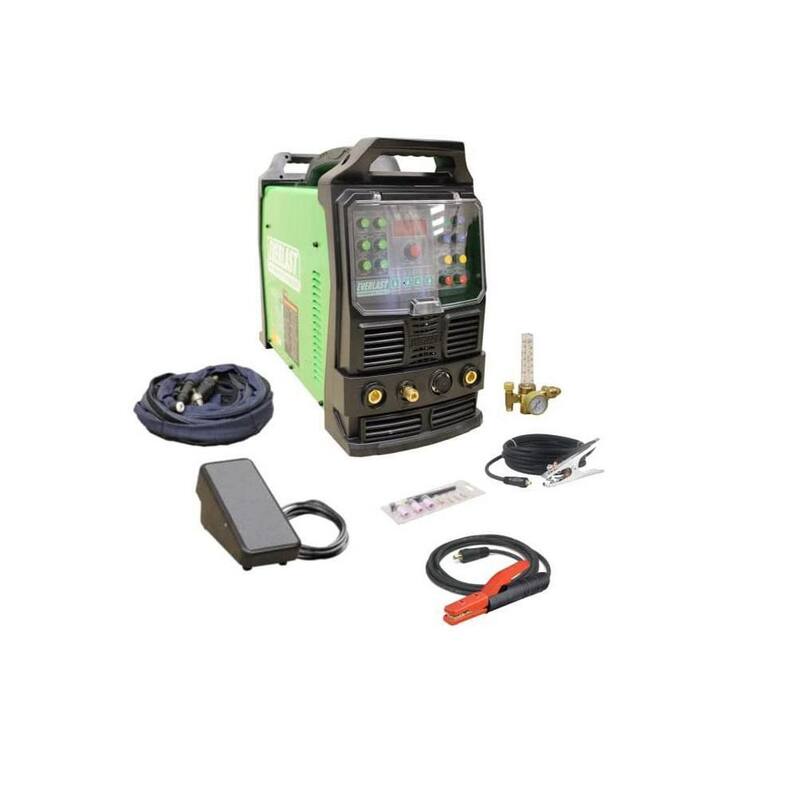

| Included | Kit |
| Input Power (Volts) | 240 |
| Material Application Thickness (in.) | 1 |
| Maximum amperage output (amps) | 315 |
| Minimum amperage output (amps) | 10 |
| Output Current Mode | AC/DC |
| Rated Output (Volts) | 240 |
| Returnable | 90-Day |
| Welder Type | Arc,Multi-Process,Stick,TIG |
| Manufacturer Warranty | 5 year warranty |

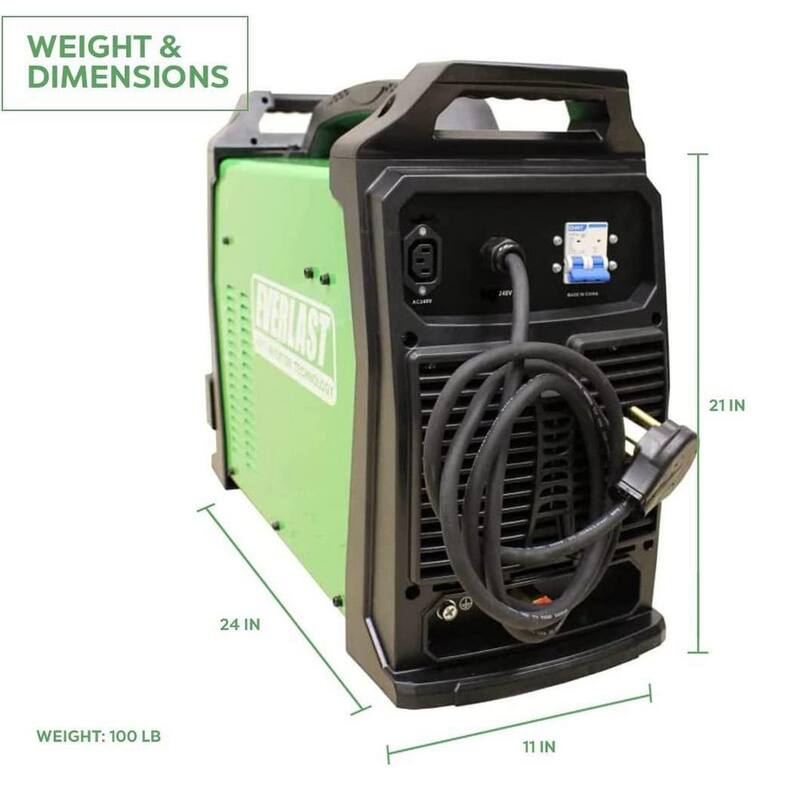

| Product Depth (in.) | 26 in |
| Product Height (in.) | 22 in |
| Product Width (in.) | 12 in |
