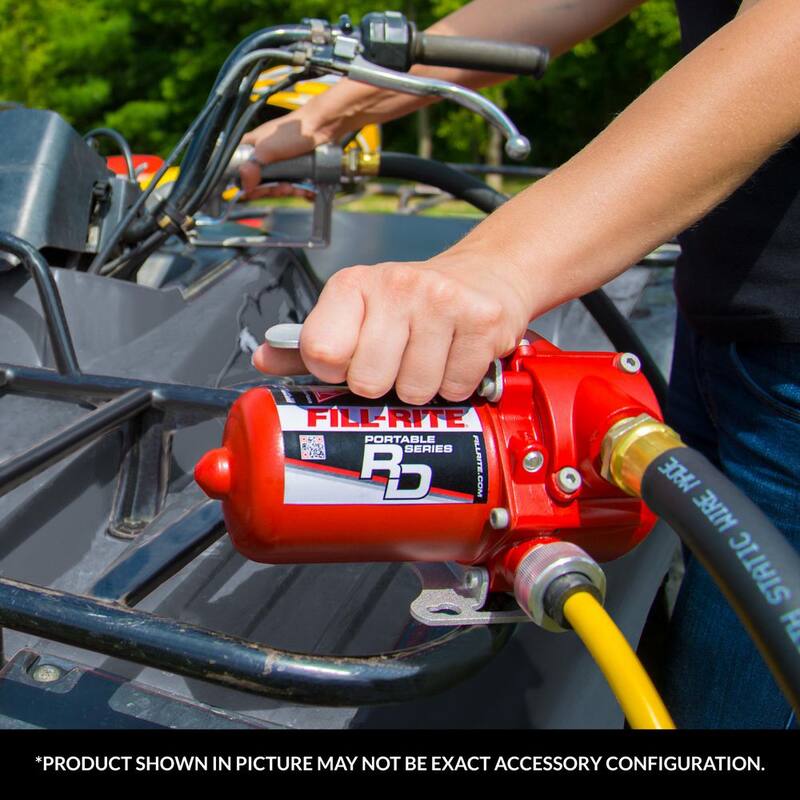

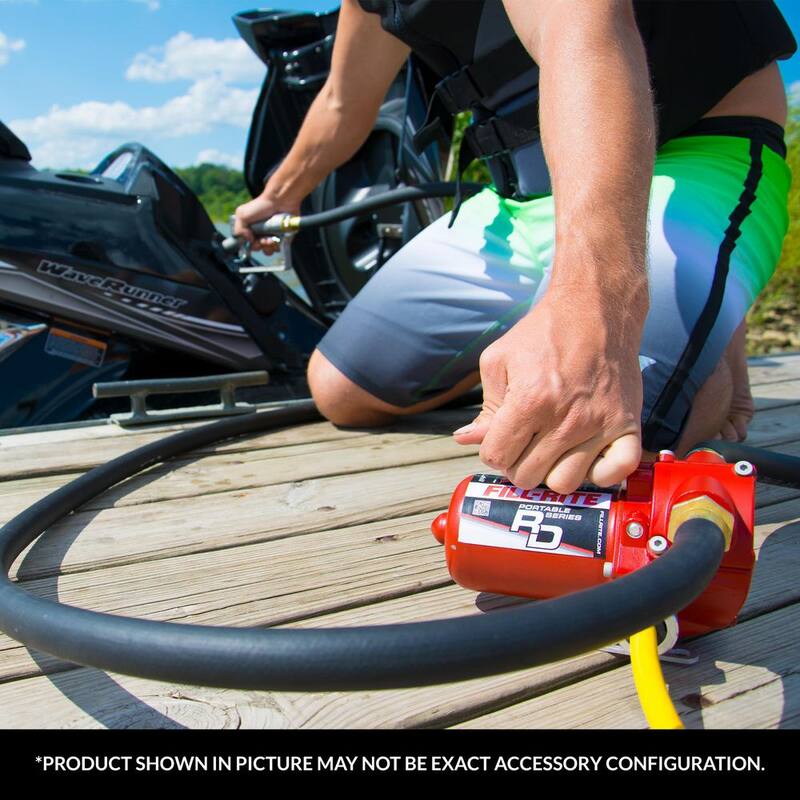

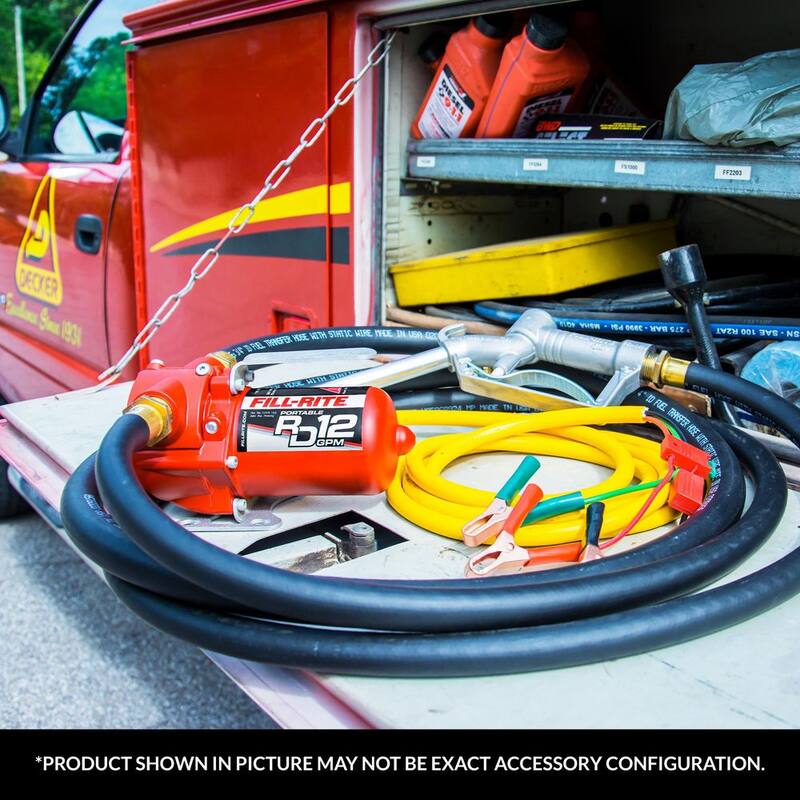

The RD Series Portable Fuel Transfer Pumps are reinventing the way people fuel their equipment. With the RD Series you get a flow rate of up to 8 or 12 gallons per minute, the flexibility of mounting it or holding it by hand, and quick connect DC power, you have the ability to fuel just about anything, anytime, anywhere. Its the perfect pump to carry in your truck. Be ready at a moments notice to fuel your tractor, backhoe, boat, generator, or virtually any other petroleum powered vehicle or equipment. The RD is also ideal for bunded tank applications, where it can be foot or bung mounted. Drain or fill fuel tanks safely in-service centers with no spills, and no worries.
| Amperage (A) | 14 A |
|---|---|
| Cord Length (ft.) | 10 ft |
| Discharge Flow @ 0 ft. (gallons/hour) | 480 |
| Discharge Flow @ 10 ft. (gallons/hour) | 480 |
| Features | Corrosion Resistant,Portable,Self-Priming,Thermal Overload Protection |
| Head Pressure (ft.) | 37 |
| Housing Material | Aluminum |
| Impeller Material | Steel |
| Included | Hardware |
| Inlet Connection | Threaded female |
| Maximum Discharge Flow (gallons/hour) | 480 |
| Maximum Horsepower (hp) | 1/6 |
| Maximum Pressure (PSI) | 16 PSI |
| Maximum Working Temperature (F) | 105 |
| Minimum working temperature (F) | -13 |
| Outlet Connection | Threaded female |
| Pack Size | 1 |
| Power Type | Electric |
| Power Type Required | DC |
| Product Weight (lb.) | 14 lb |
| Pump Switch Type | Electronic |
| Returnable | 90-Day |
| Vertical Lift (ft.) | 6 |
| Voltage | 12v |
| Certifications and Listings | CE Certified,cUL Listed |
| Manufacturer Warranty | 2 years |
| Product Depth (in.) | 8 in |
| Product Height (in.) | 4.75 in |
| Product Width (in.) | 4.5 in |
