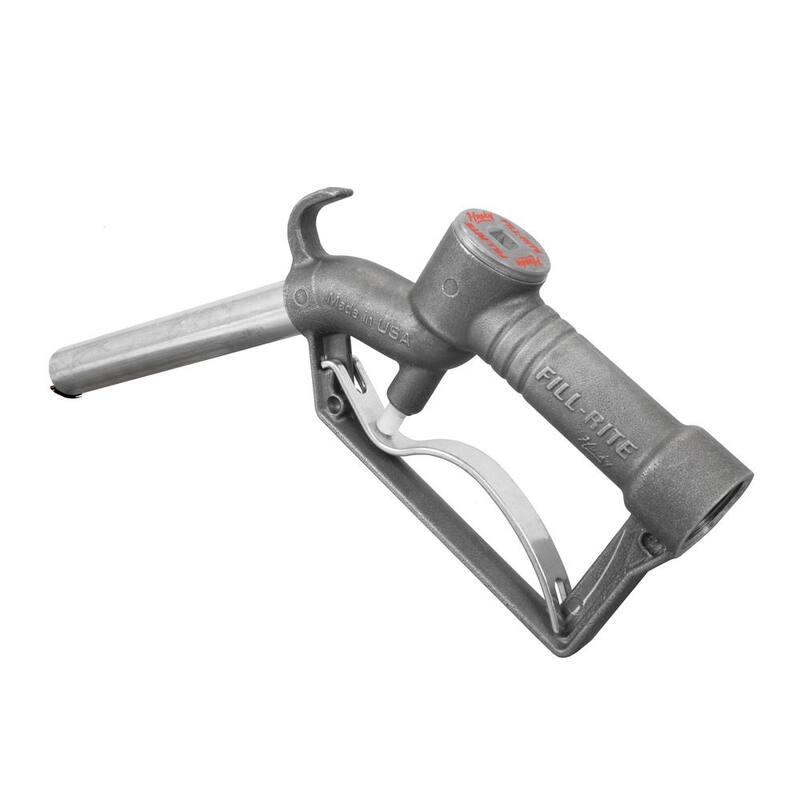

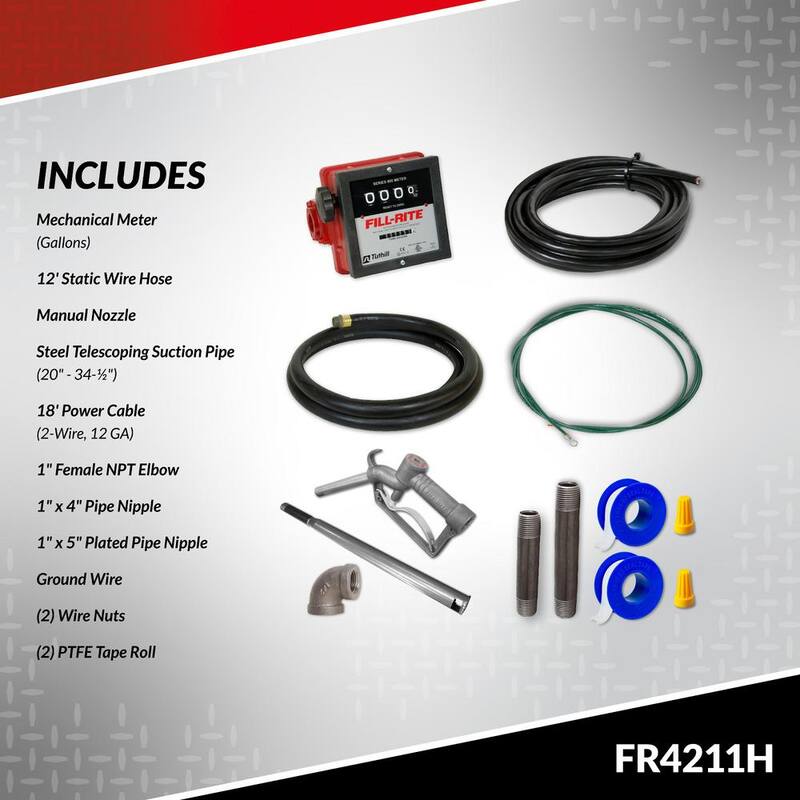

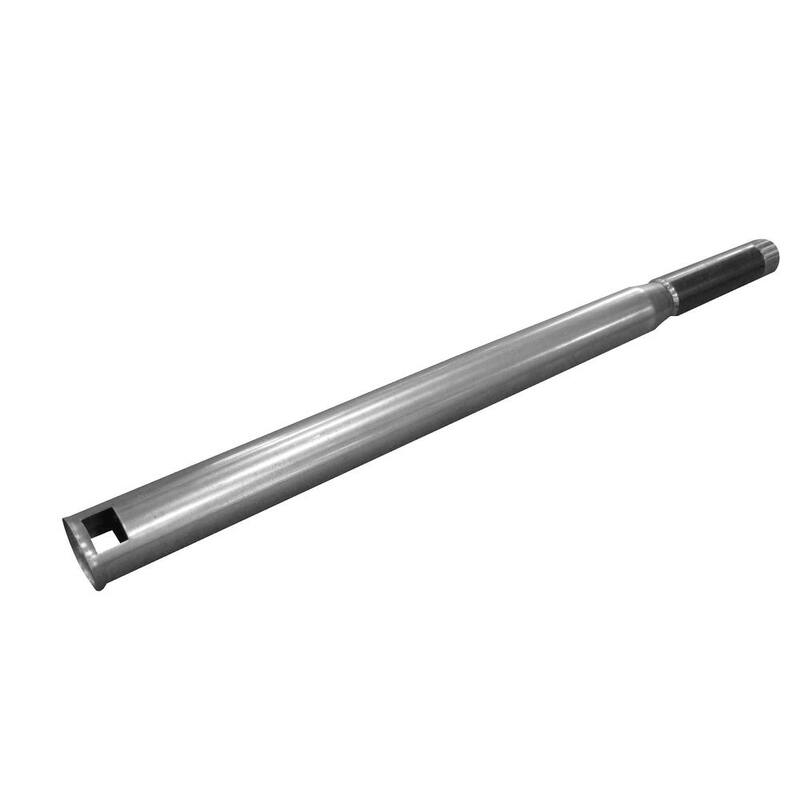

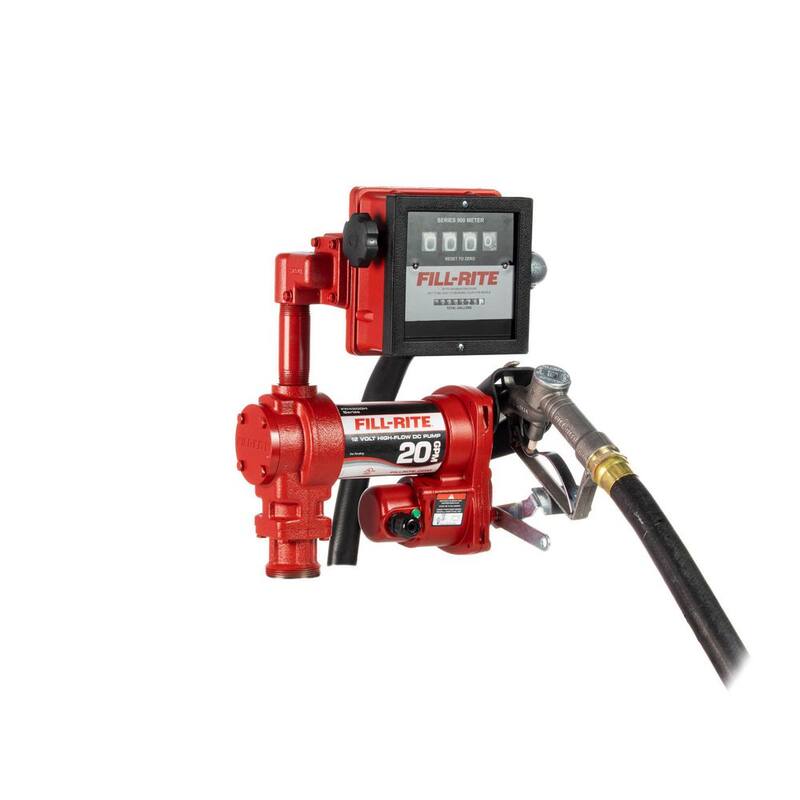

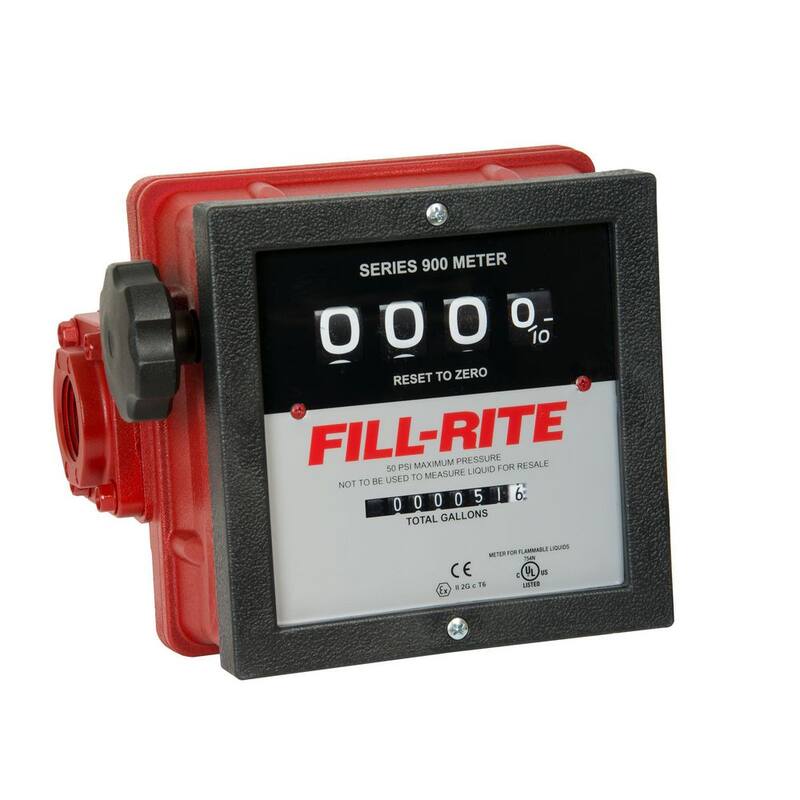

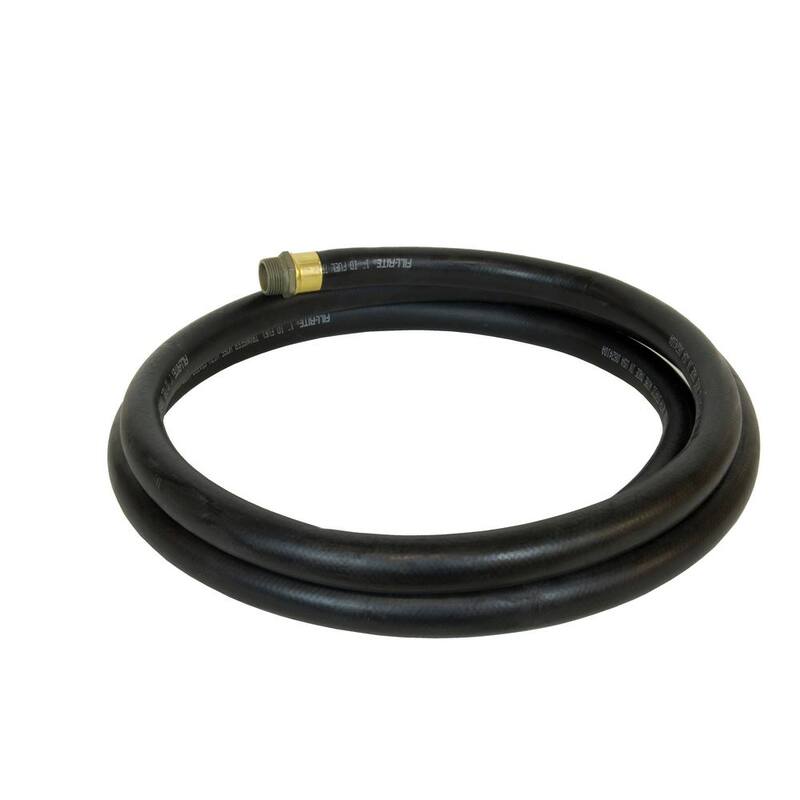

The FR4211H is a 12-Volt 20 GPM fuel transfer pump that comes with a 1 in. x 12 ft. discharge hose, 1 in. manual nozzle, 901C mechanical 4-digit fuel transfer meter (gallons), 1 in. x 34 in. telescoping steel suction pipe, 1 in. elbow, 5 ft. 12-Gauge ground wire, and a 18 ft. 12-Gauge 2-wire battery cable. It can be used to pump gasoline, diesel, kerosene, ethanol blends up to 15%, methanol blends up to 15%, and bio-diesel up to B20. The previous FR4211G model has been updated to the FR4211H model. With a removable junction box, the product is now easier to install. The performance specifications of the product did not change.
| Amperage (A) | 20 A |
|---|---|
| Cord Length (ft.) | 18 ft |
| Discharge Flow @ 0 ft. (gallons/hour) | 1200 |
| Discharge Flow @ 10 ft. (gallons/hour) | 1200 |
| Features | Self-Priming,Thermal Overload Protection |
| Head Pressure (ft.) | 37 |
| Housing Material | Cast-Iron |
| Impeller Material | Steel |
| Included | Hardware,Mounting Bracket |
| Inlet Connection | Threaded female |
| Maximum Discharge Flow (gallons/hour) | 1200 |
| Maximum Horsepower (hp) | 1/4 |
| Maximum Pressure (PSI) | 16 PSI |
| Maximum Working Temperature (F) | 105 |
| Minimum working temperature (F) | -13 |
| Outlet Connection | Threaded female |
| Pack Size | 1 |
| Power Type | Electric |
| Power Type Required | DC |
| Product Weight (lb.) | 36 lb |
| Pump Switch Type | Electronic |
| Returnable | 90-Day |
| Vertical Lift (ft.) | 37 |
| Voltage | 12v |
| Certifications and Listings | UL Listed,cUL Listed |
| Manufacturer Warranty | Limited Lifetime |
| Product Depth (in.) | 11 in |
| Product Height (in.) | 18 in |
| Product Width (in.) | 14 in |
