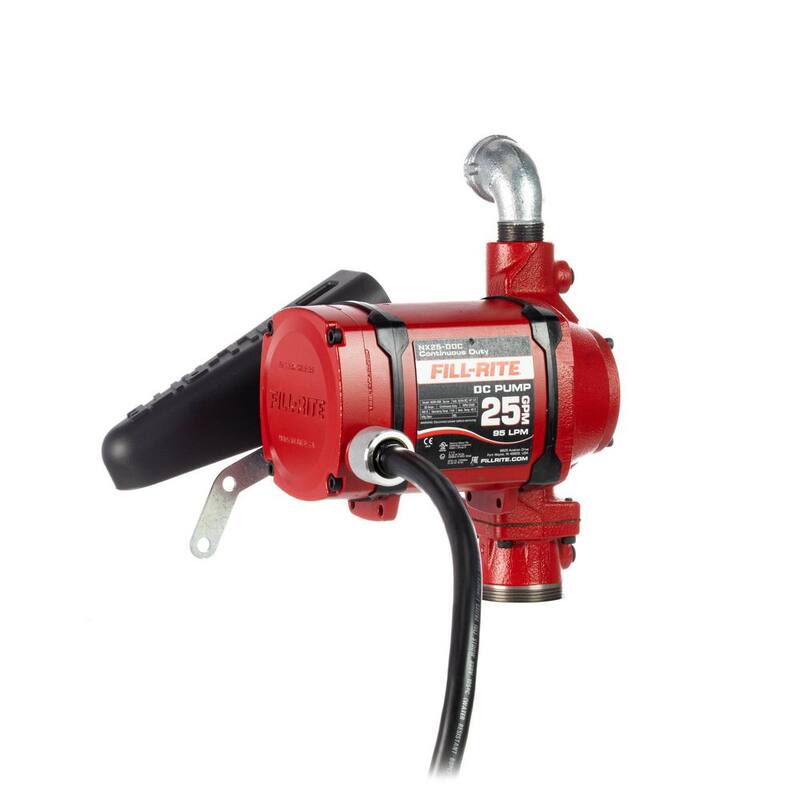

Nextec is the new FILL-RITE Series that offers SMART pump intelligence with an exclusive array of design advancements, technologies, and user functions that take pump performance to new levels. The NX25-DDCNB-PX model is a bung mounted pump that comes in a "pump only" configuration. It is designed for transferring gasoline, diesel, kerosene, bio-diesel up to B20, or ethanol blends up to E15.
| Amperage (A) | 29 A |
|---|---|

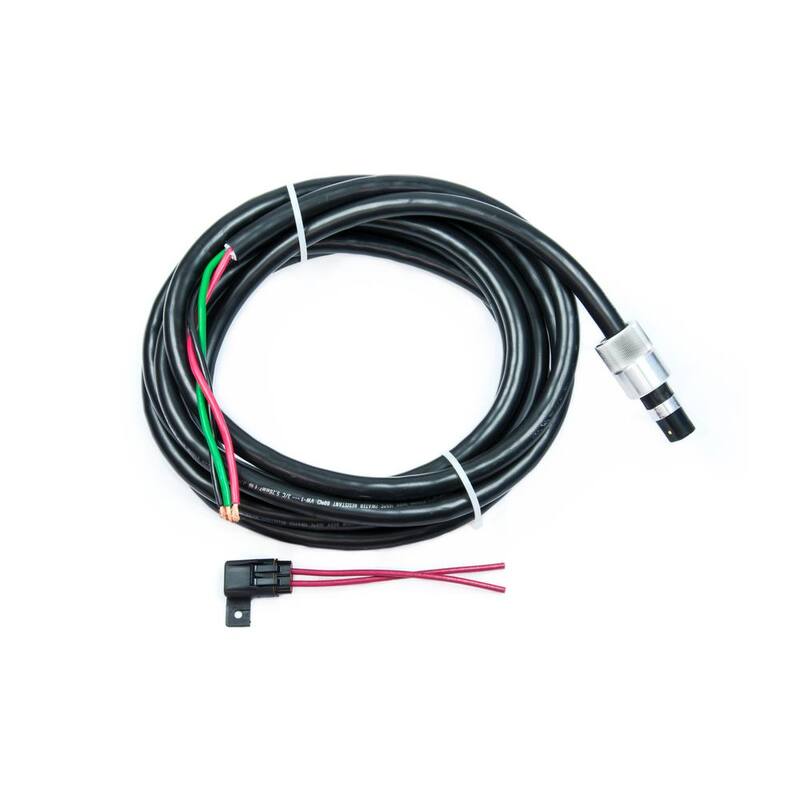

| Cord Length (ft.) | 20 ft |
| Discharge Flow @ 0 ft. (gallons/hour) | 1500 |
| Discharge Flow @ 10 ft. (gallons/hour) | 1500 |
| Features | Corrosion Resistant,Run-Dry Capable,Self-Priming,Thermal Overload Protection |
| Head Pressure (ft.) | 48 |
| Housing Material | Cast-Iron |
| Impeller Material | Steel |

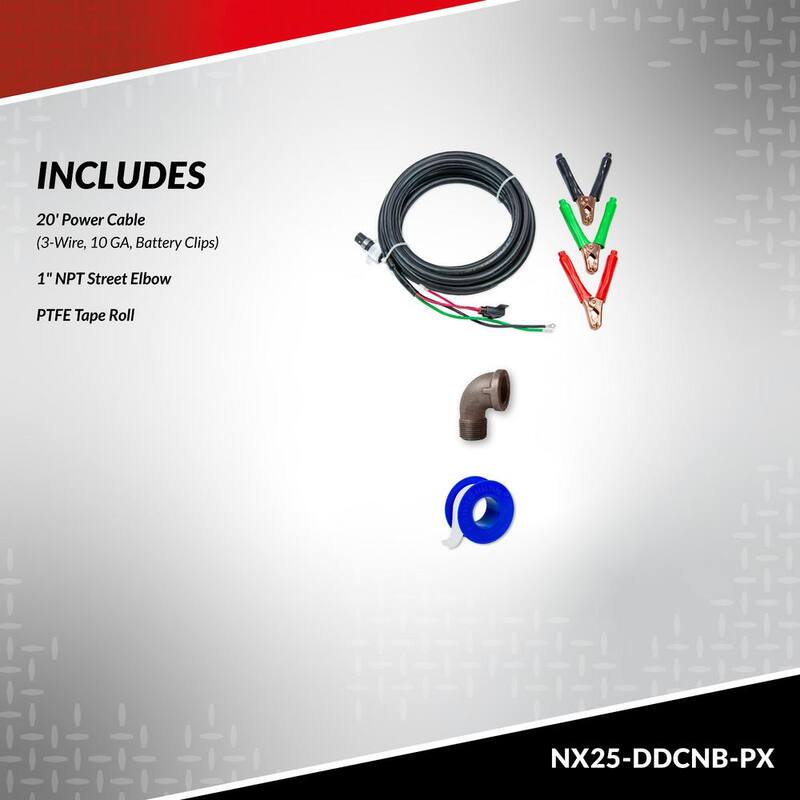

| Included | Hardware |
| Inlet Connection | Threaded female |
| Maximum Discharge Flow (gallons/hour) | 1500 |
| Maximum Horsepower (hp) | 1/3 |
| Maximum Pressure (PSI) | 21 PSI |
| Maximum Working Temperature (F) | 105 |
| Minimum working temperature (F) | -13 |
| Outlet Connection | Threaded female |
| Pack Size | 1 |
| Power Type | Electric |
| Power Type Required | DC |
| Product Weight (lb.) | 28 lb |
| Pump Switch Type | Electronic |
| Returnable | 90-Day |
| Vertical Lift (ft.) | 12 |
| Voltage | 12v,24v |
| Certifications and Listings | CE Certified,cUL Listed |
| Manufacturer Warranty | Limited Lifetime |
| Product Depth (in.) | 9 in |
| Product Height (in.) | 6 in |
| Product Width (in.) | 9 in |
