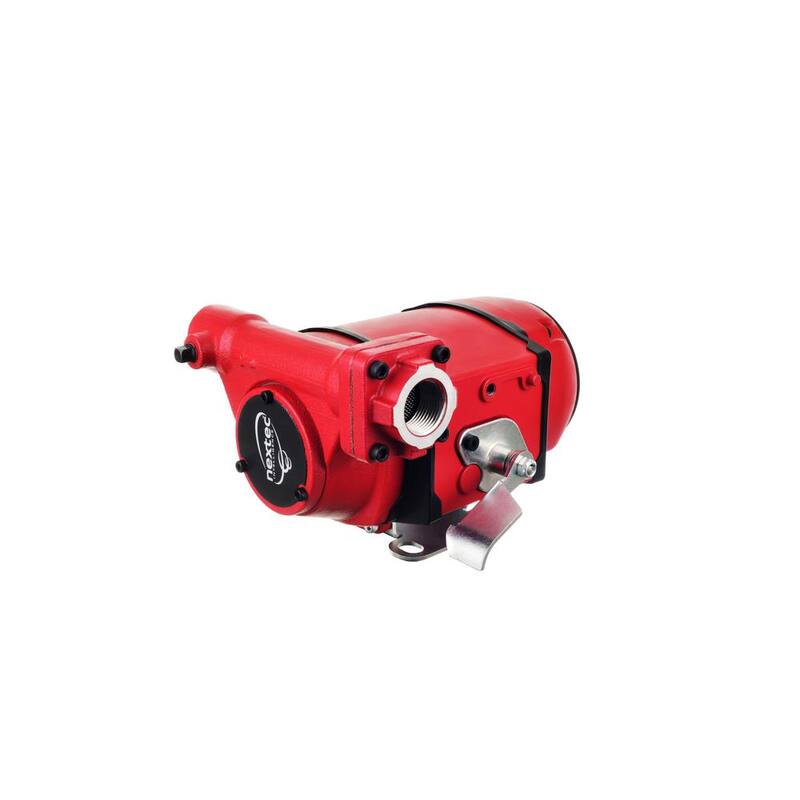

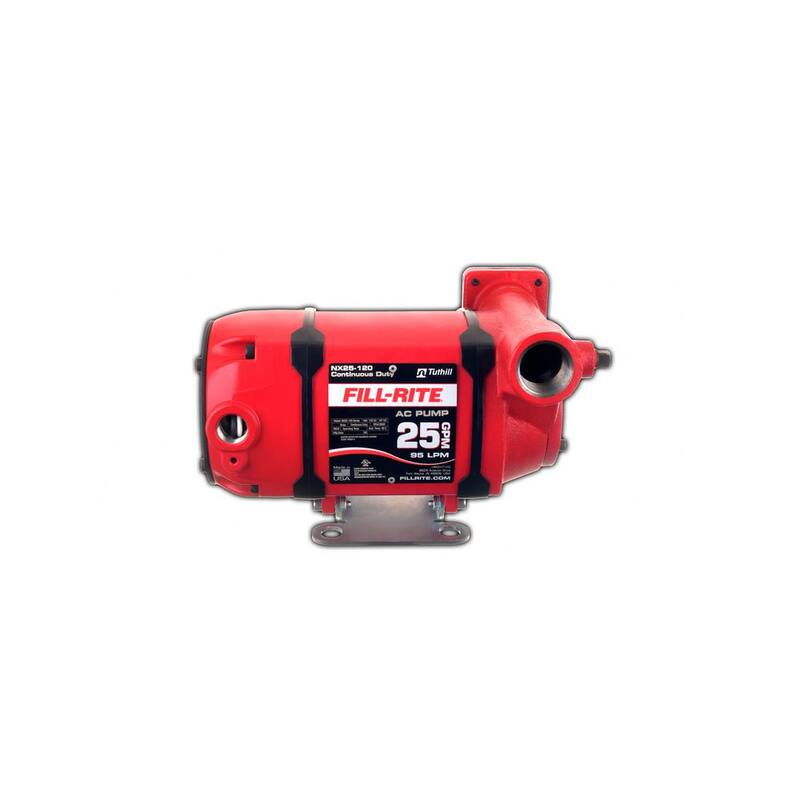

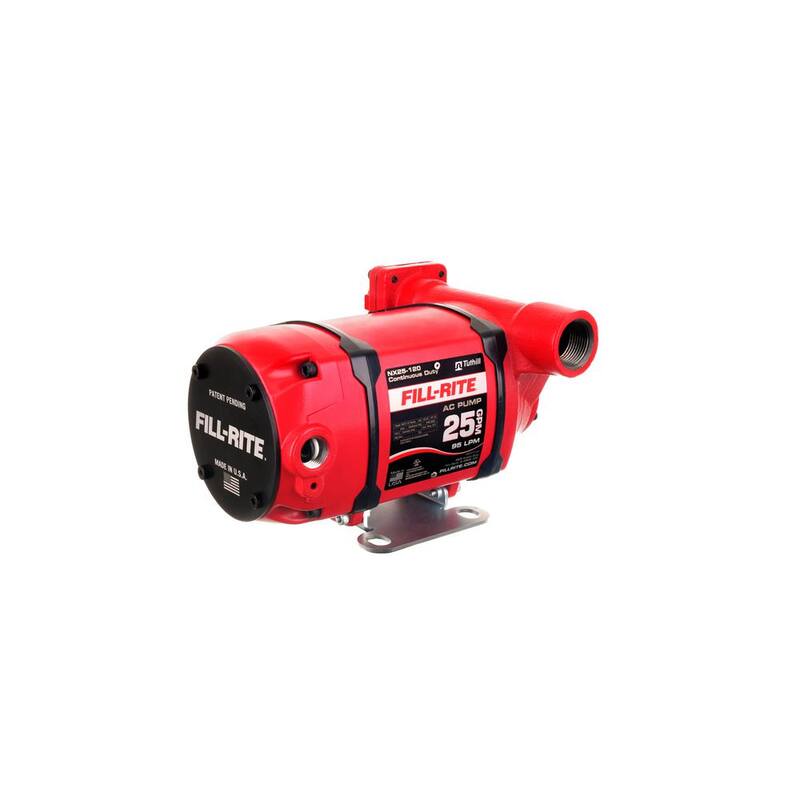

FILL-RITE is product to announce the newest extension of its continuous duty family with the release of the new Nextec AC models. These new fuel transfer pumps allow fleet managers to fuel all day with less downtime due to short duty cycles or overheating. Each model is able to transfer diesel, gasoline, kerosene, mineral spirits, bio-diesel up to B20, ethanol blends up to E15, and methanol up to 15%. Model NX25-120NF-PX is a NPT threaded foot mounted 120-Volt 25 GPM fuel transfer pump with no accessories.
| Amperage (A) | 20 A |
|---|---|
| Cord Length (ft.) | 0 ft |
| Discharge Flow @ 0 ft. (gallons/hour) | 1620 |
| Discharge Flow @ 10 ft. (gallons/hour) | 1500 |
| Features | Corrosion Resistant,Run-Dry Capable,Self-Priming,Thermal Overload Protection |
| Head Pressure (ft.) | 48.5 |
| Housing Material | Cast-Iron |
| Impeller Material | Steel |
| Included | Hardware |
| Inlet Connection | Threaded female |
| Maximum Discharge Flow (gallons/hour) | 1500 |
| Maximum Horsepower (hp) | 1/3 |
| Maximum Pressure (PSI) | 25 PSI |
| Maximum Working Temperature (F) | 105 |
| Minimum working temperature (F) | -40 |
| Outlet Connection | Threaded female |
| Pack Size | 1 |
| Power Type | Electric |
| Power Type Required | AC |
| Product Weight (lb.) | 28 lb |
| Pump Switch Type | Electronic |
| Returnable | 90-Day |
| Vertical Lift (ft.) | 48.5 |
| Voltage | 120v |
| Certifications and Listings | CE Certified,cUL Listed |
| Manufacturer Warranty | Limited Lifetime |
| Product Depth (in.) | 9.5 in |
| Product Height (in.) | 6.5 in |
| Product Width (in.) | 10 in |
