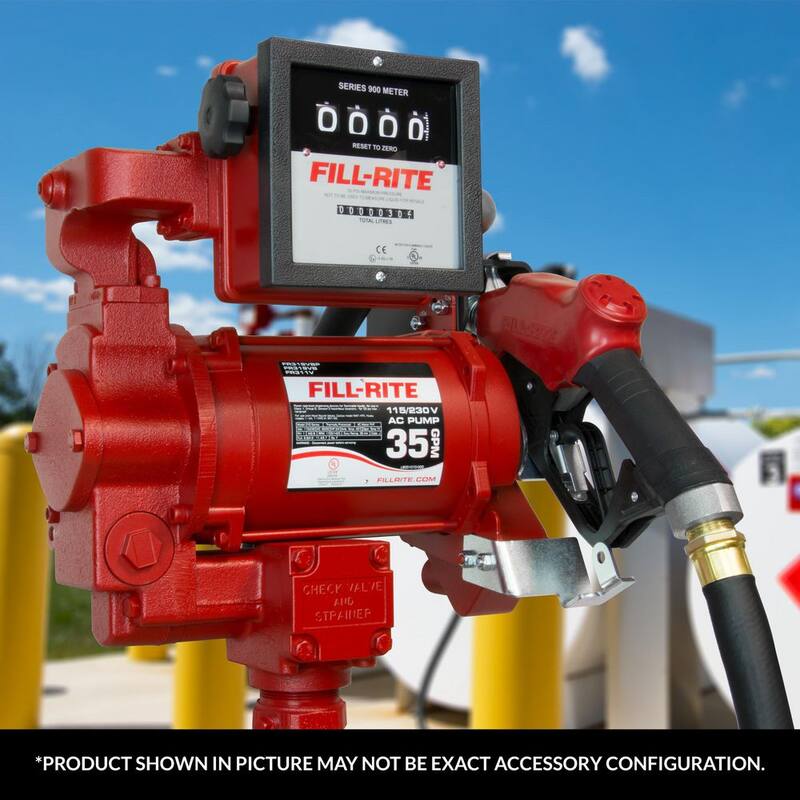

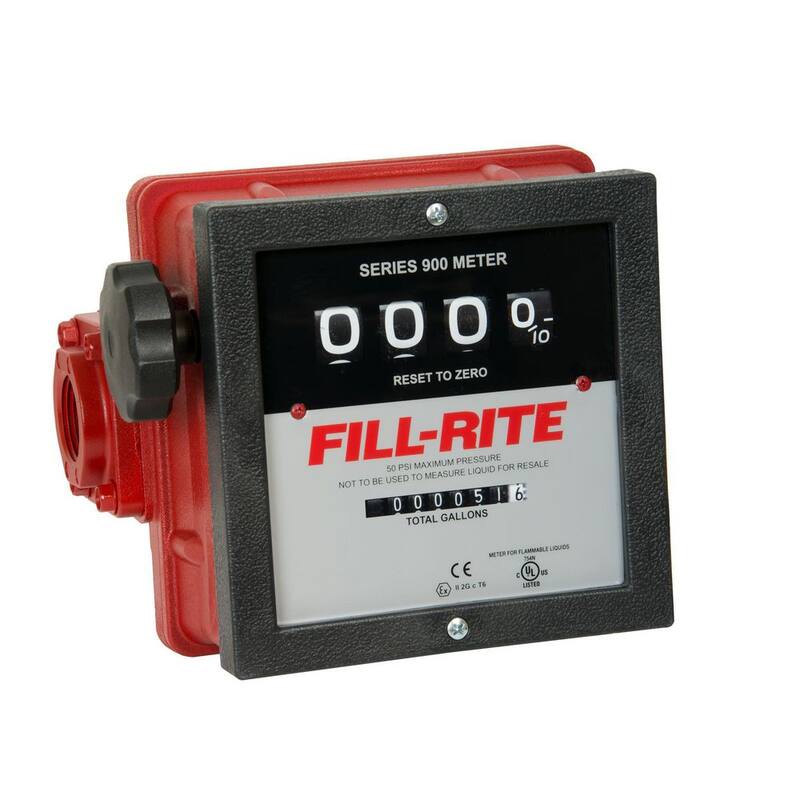

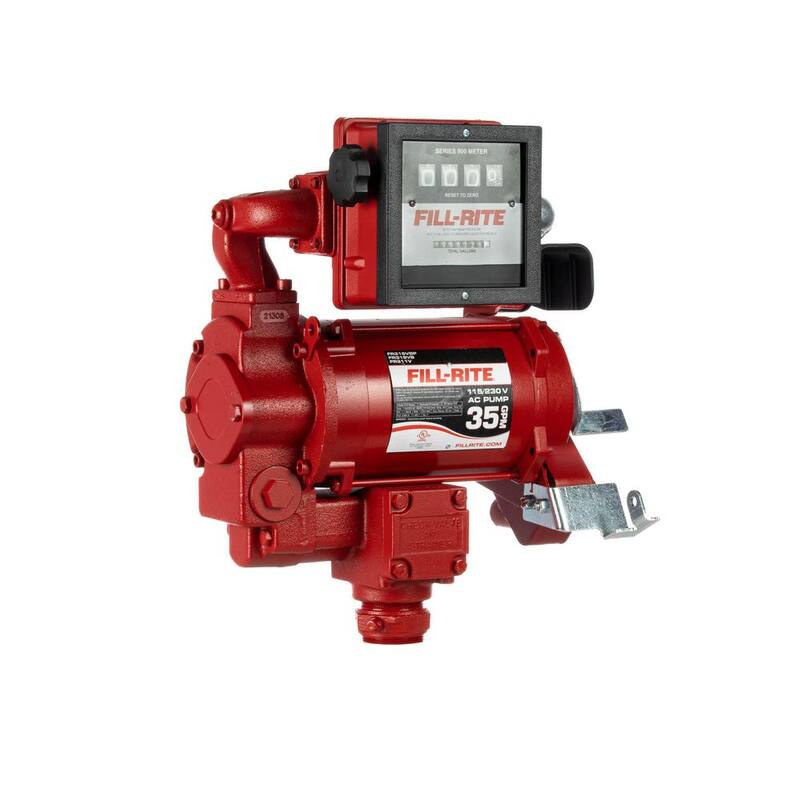

The 300 series product line from FILL-RITE is a 230-Volt AC powered 35 GPM rotary vane fuel transfer pump. It is designed to transfer diesel, gasoline, kerosene, ethanol blends up to 15%, methanol blends up to 15%, and bio-diesel up to B20. Model FR311VN is a 2 in. bung mounted pump (FR310VN) and meter (901C) combination that does not include any other accessories.
| Amperage (A) | 5 A |
|---|---|
| Cord Length (ft.) | 1 ft |
| Discharge Flow @ 0 ft. (gallons/hour) | 2100 |
| Discharge Flow @ 10 ft. (gallons/hour) | 2100 |
| Features | Corrosion Resistant,Self-Priming,Thermal Overload Protection |
| Head Pressure (ft.) | 60 |
| Housing Material | Cast-Iron |
| Impeller Material | Steel |

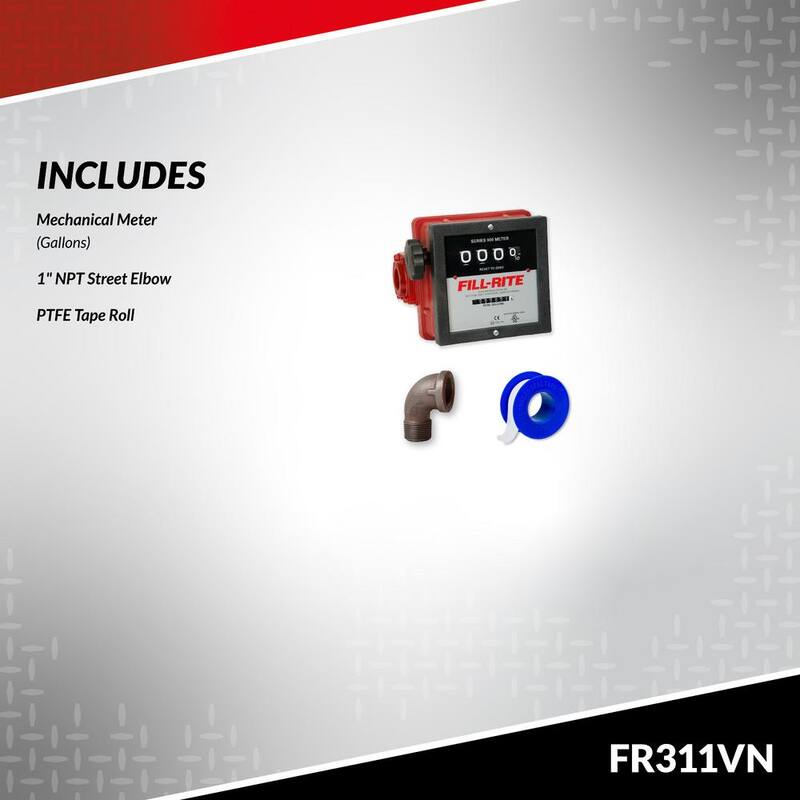

| Included | Hardware,Mounting Bracket |
| Inlet Connection | Threaded female |
| Maximum Discharge Flow (gallons/hour) | 2100 |
| Maximum Horsepower (hp) | 3/4 |
| Maximum Pressure (PSI) | 26 PSI |
| Maximum Working Temperature (F) | 105 |
| Minimum working temperature (F) | -13 |
| Outlet Connection | Threaded female |
| Pack Size | 1 |
| Power Type | Electric |
| Power Type Required | AC |
| Product Weight (lb.) | 79 lb |
| Pump Switch Type | Electronic |
| Returnable | 90-Day |
| Vertical Lift (ft.) | 60 |
| Voltage | 230v |
| Certifications and Listings | CE Certified,cUL Listed |
| Manufacturer Warranty | Limited Lifetime |
| Product Depth (in.) | 14 in |
| Product Height (in.) | 15 in |
| Product Width (in.) | 17 in |
