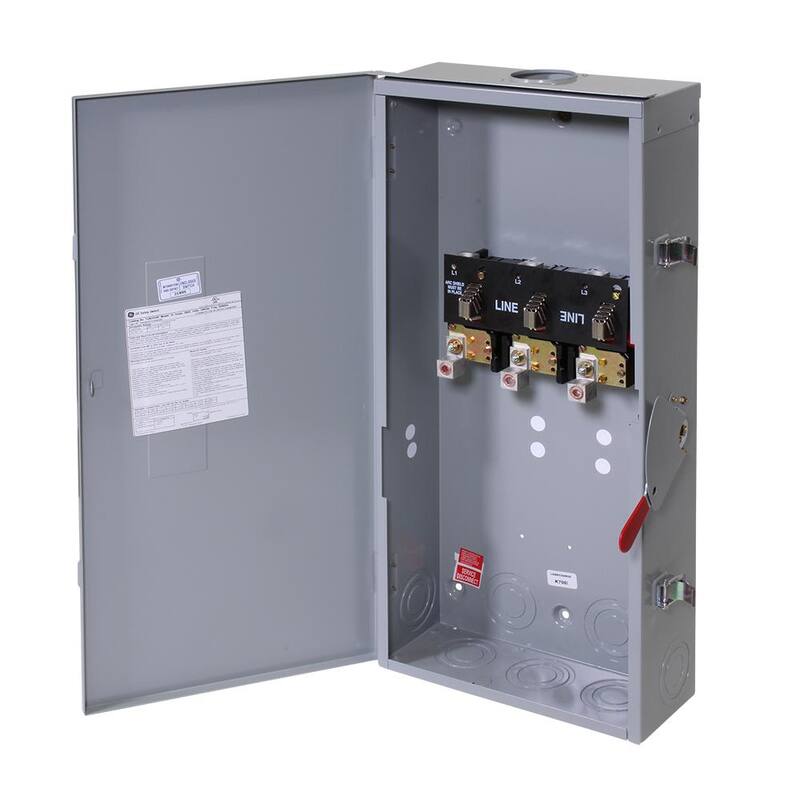

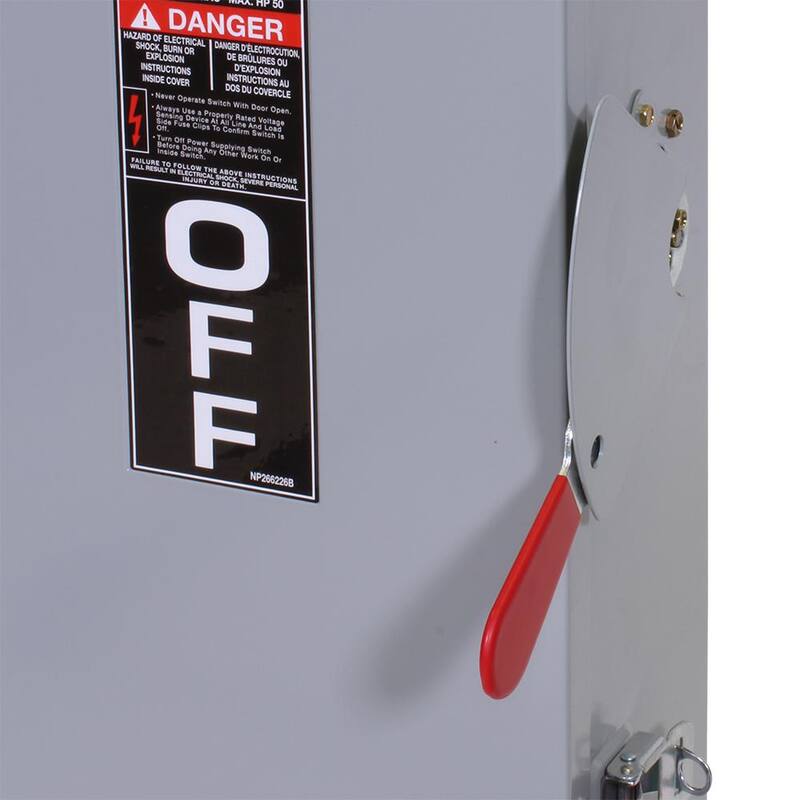

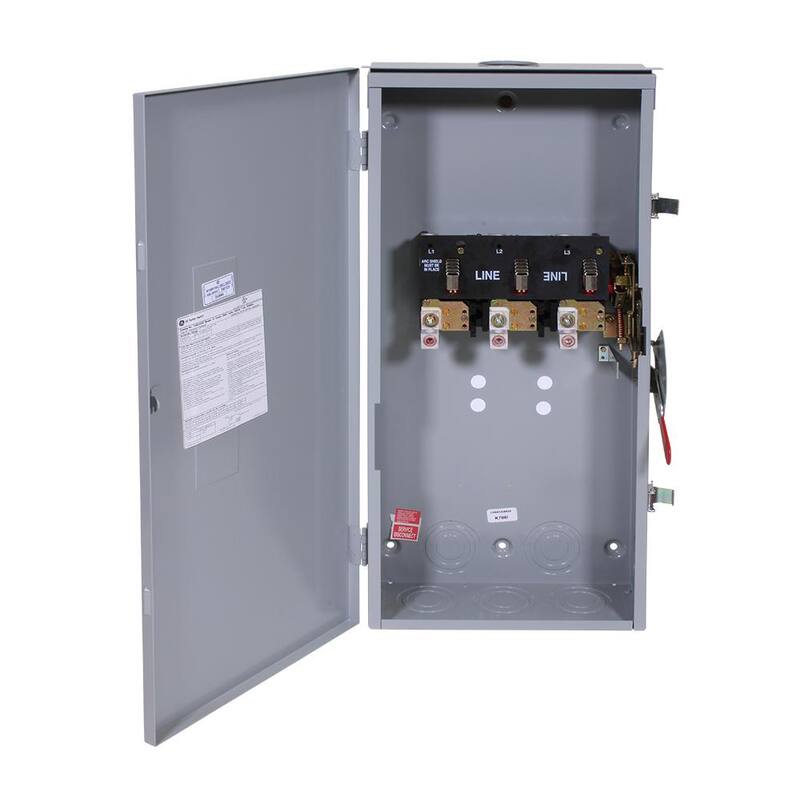

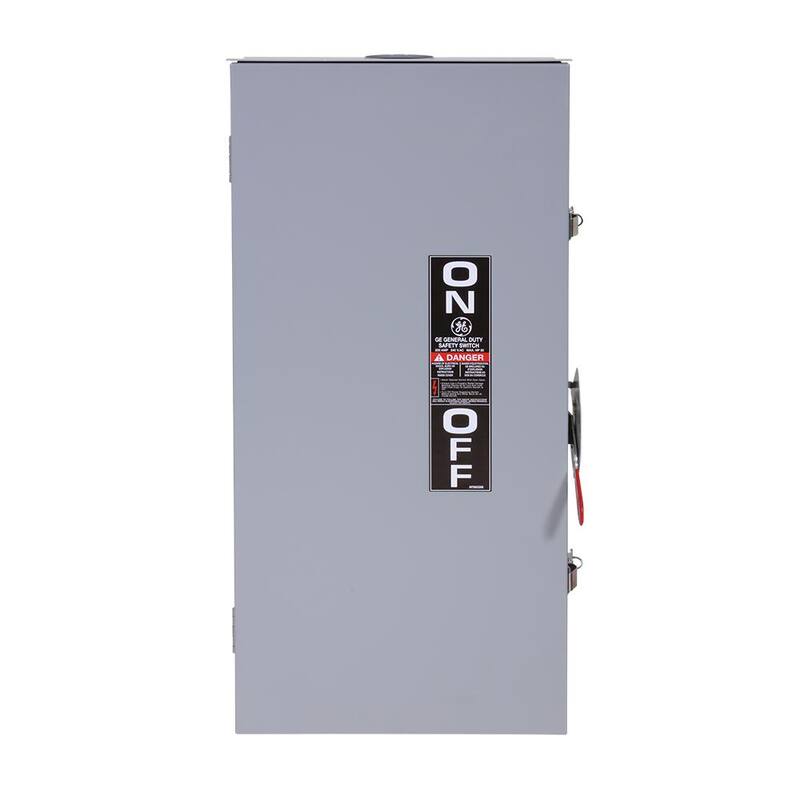

With a single-phase, 3-pole, type-TG design, this GE 200 Amp 240-Volt Non-Fused Outdoor General-Duty Safety Switch is manufactured for residential and light commercial applications where duty is not severe. This safety switch offers a bright red handle for easy gripping and visibility. For safety, this switch is UL listed with a short-circuit rating of 10,000 rms symmetrical Amp.
| Automatic/Manual | Manual |
|---|---|
| Disconnect Type | Safety Switch |
| Electrical Product Type | Disconnect |
| Features | Mountable,On/Off Switch |
| Fused | Non-Fused |
| Indoor/Outdoor | Outdoor |
| Maximum Amperage (A) | 200 |
| Maximum Wattage (W) | 0 W |
| NEMA Configuration | NEMA 3R |
| Phase Type | 1 Phase |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 30.563 lb |
| Returnable | 90-Day |
| Type | Safety Switch |
| Voltage (V) | 240 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | One year warranty from first use |
| Product Depth (in.) | 8.85 in |
| Product Height (in.) | 29.06 in |
| Product Width (in.) | 14.27 in |
