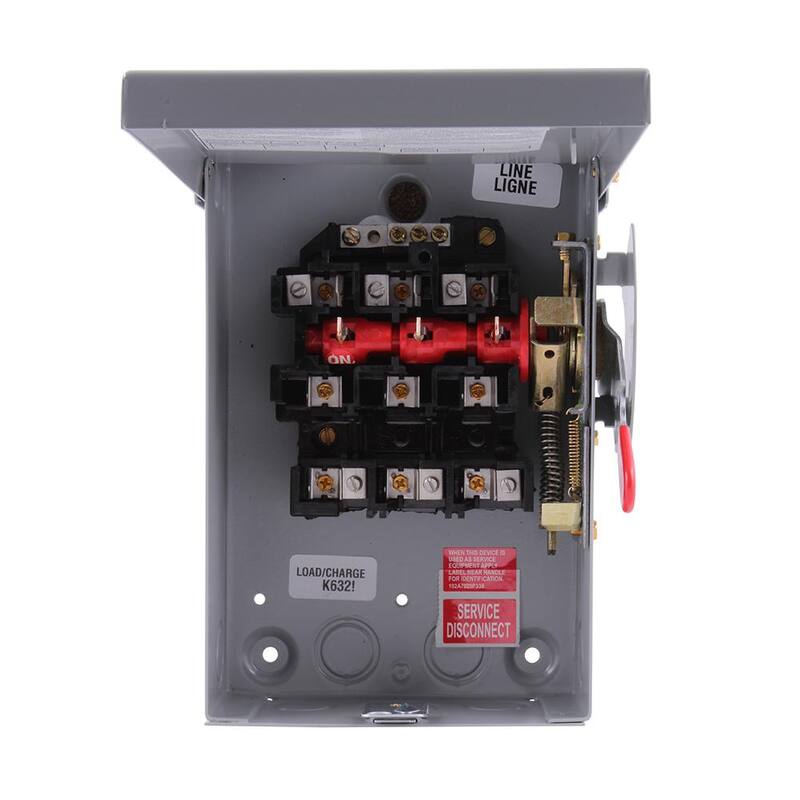

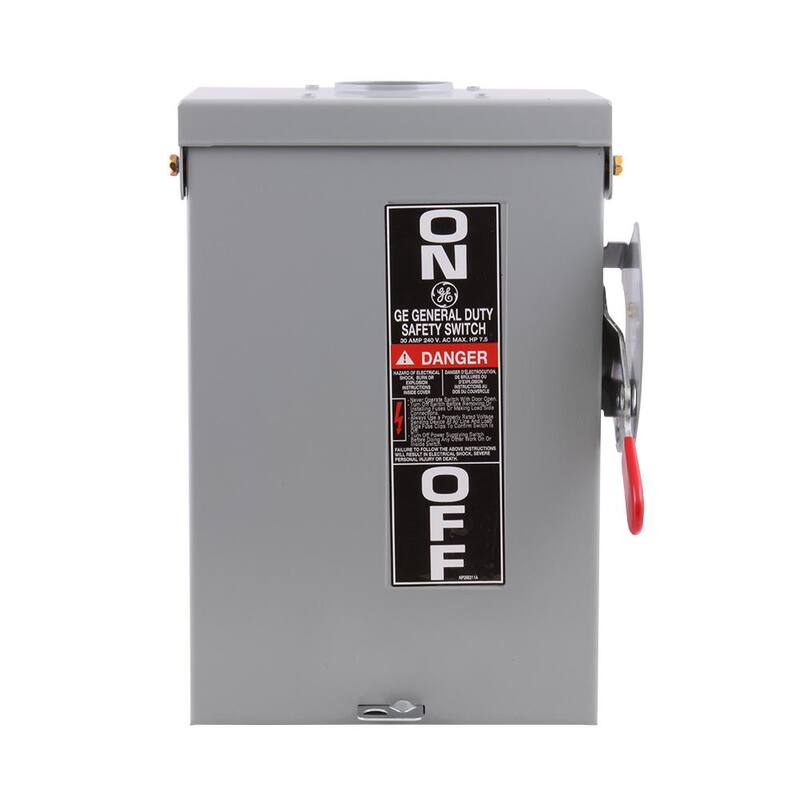

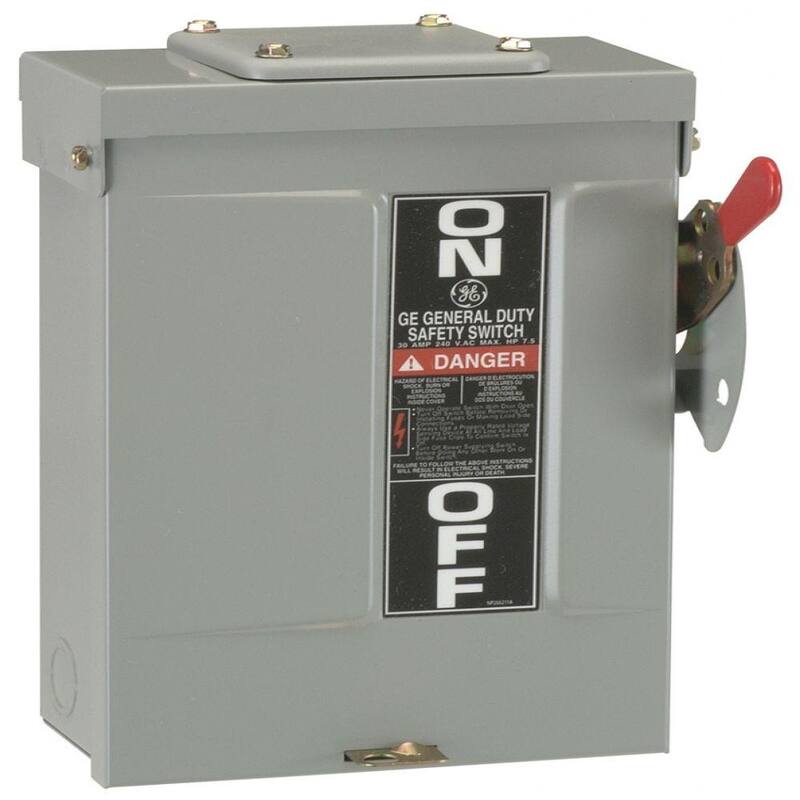

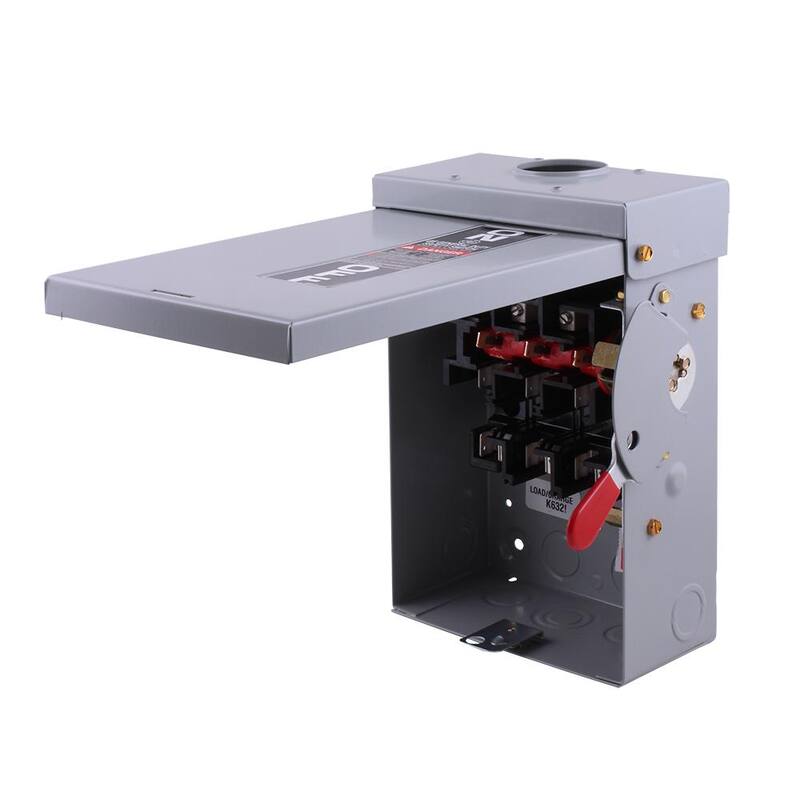

This GE 30 Amp 240-Volt Fusible Outdoor General-Duty Safety Switch provides a type-3R galvanized steel enclosure that offers superior rust protection ideal for outdoor installation. This safety switch features plated stationary and movable contacts and plated blades for visible confirmation of contact position. CSA listed and ANSI certified.
| Automatic/Manual | Manual |
|---|---|
| Disconnect Type | Safety Switch |
| Electrical Product Type | Disconnect |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Fused | Fused |
| Indoor/Outdoor | Outdoor |
| Inlet Configuration | No Receptacle |
| Maximum Amperage (A) | 30 |
| Maximum Wattage (W) | 0 W |
| NEMA Configuration | NEMA 3R |
| Phase Type | 3 Phase |
| Power Distribution Features | Fusible |
| Product Weight (lb.) | 5.813 lb |
| Returnable | 90-Day |
| Type | Safety Switch |
| Voltage (V) | 240 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | One year warranty from first use |

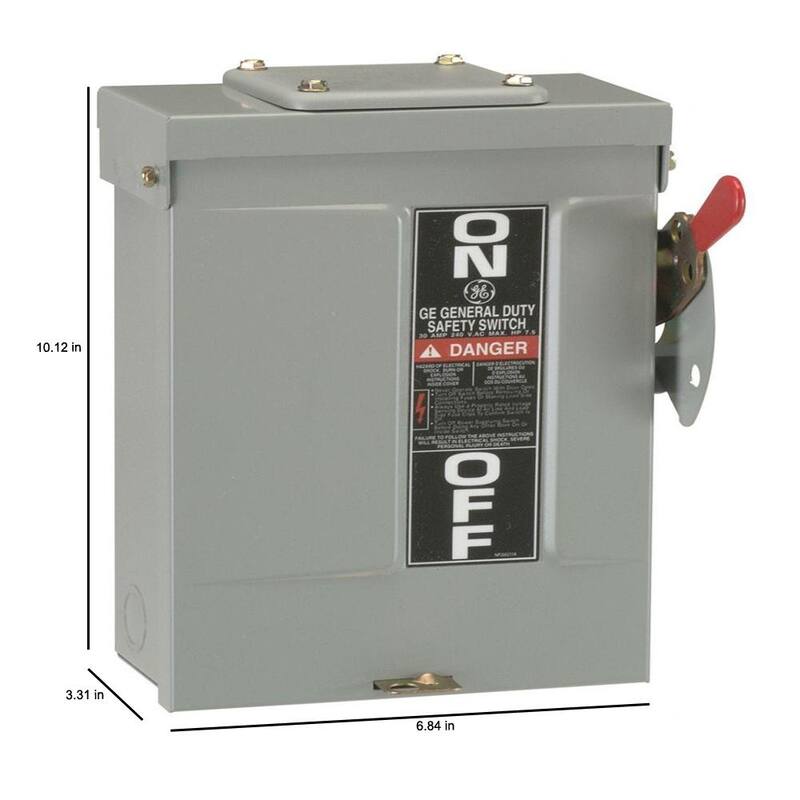

| Product Depth (in.) | 6.25 in |
| Product Height (in.) | 10.12 in |
| Product Width (in.) | 6.84 in |
