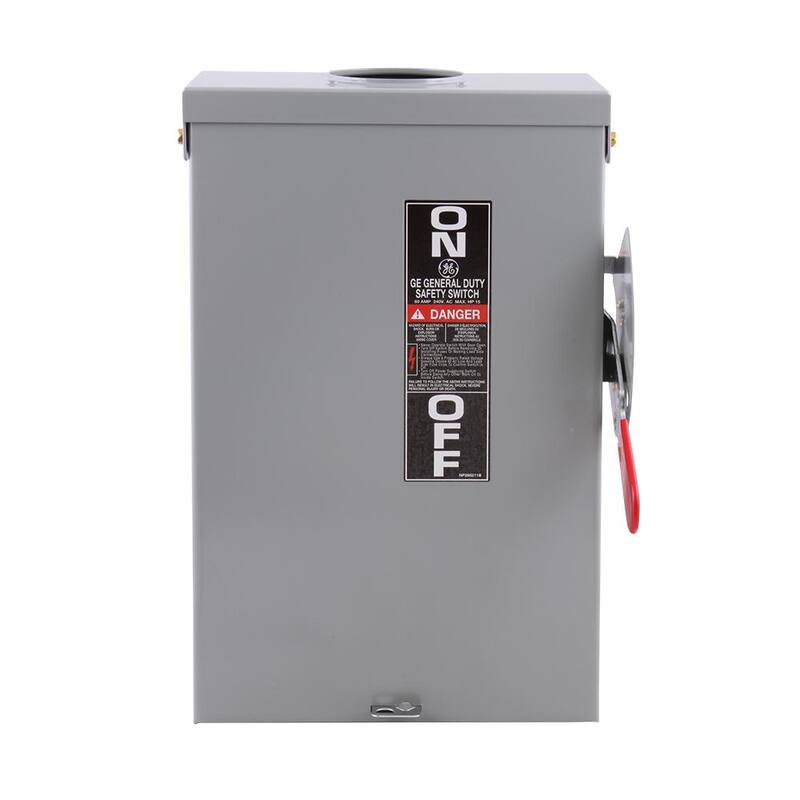

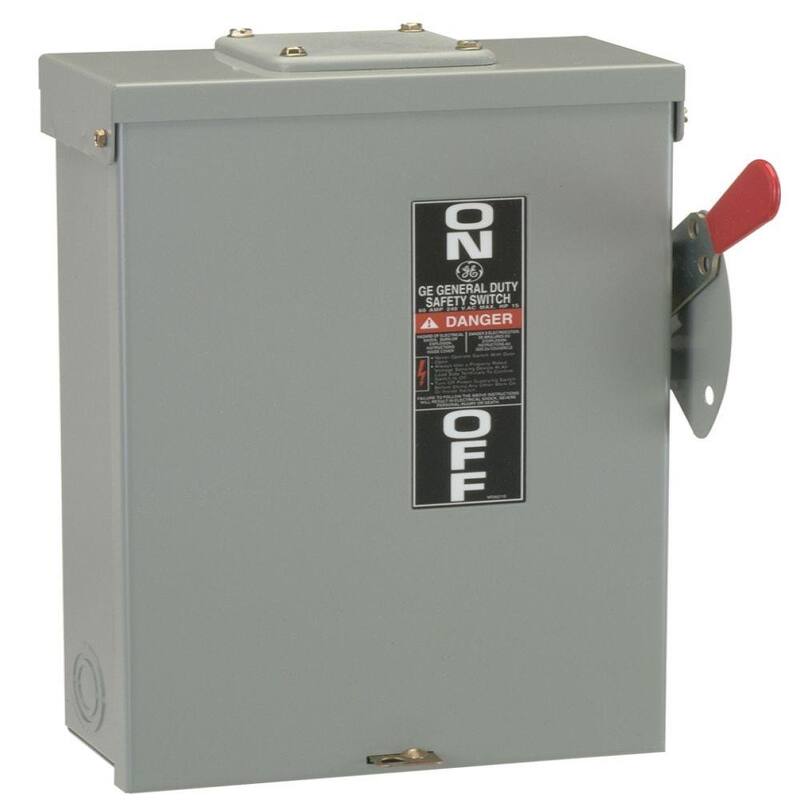

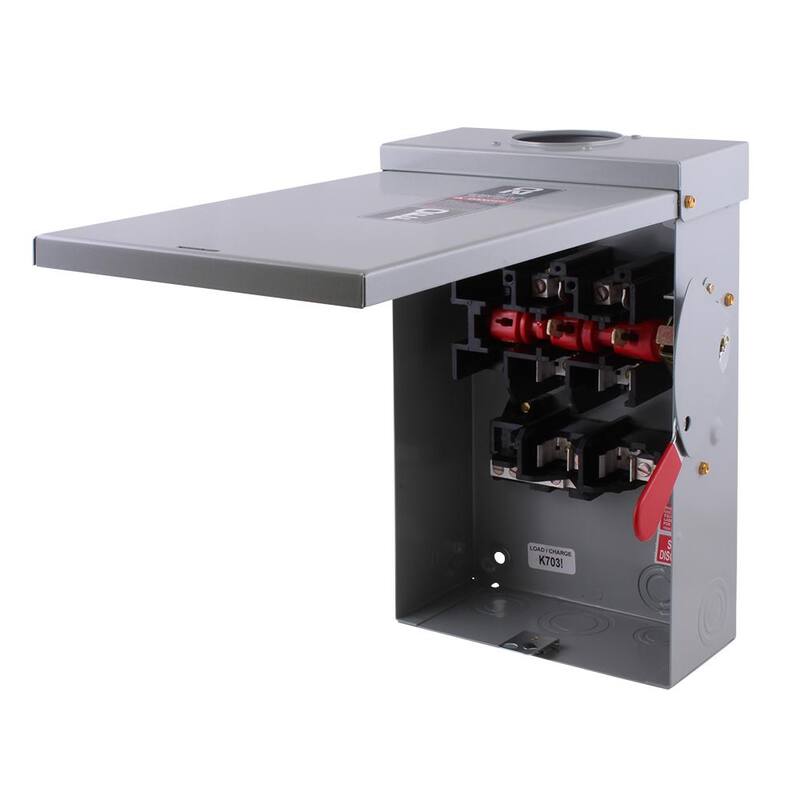

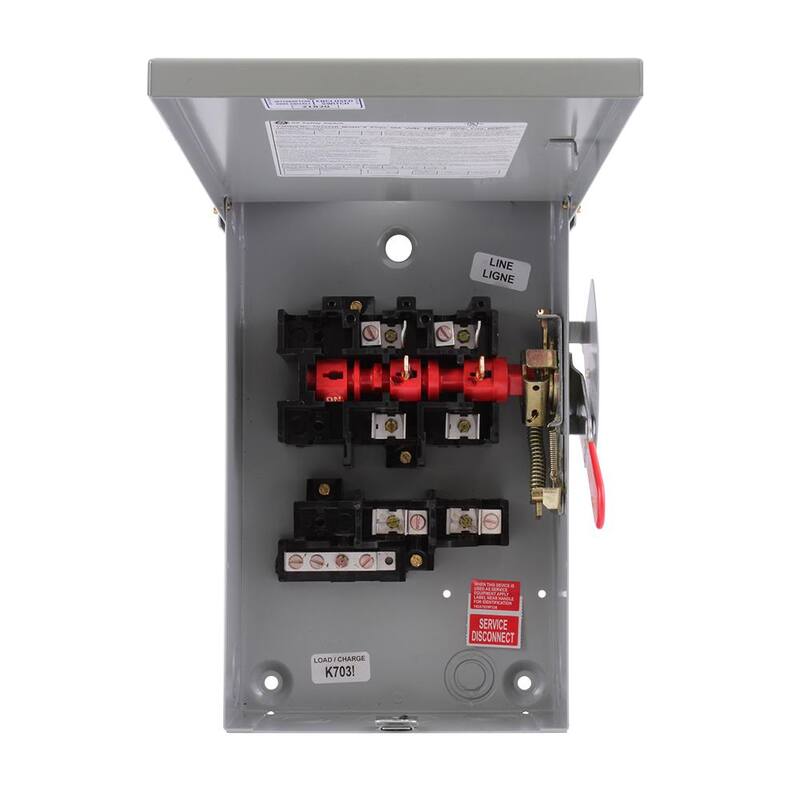

Best suited for residential and light commercial applications, this GE 60 Amp 240-Volt Fusible Outdoor General-Duty Safety Switch features direct-drive, quick-make, quick-break mechanism that snaps the contacts open and closed providing positive on/off indication while prolonging switch life. The type-3R galvanized steel enclosure helps provide rust resistance in exterior locations.
| Automatic/Manual | Manual |
|---|---|
| Disconnect Type | Safety Switch |
| Electrical Product Type | Disconnect |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Fused | Fused |
| Indoor/Outdoor | Outdoor |
| Inlet Configuration | No Receptacle |
| Maximum Amperage (A) | 60 |
| Maximum Wattage (W) | 0 W |
| NEMA Configuration | NEMA 3R |
| Phase Type | 1 Phase |
| Power Distribution Features | Fusible |
| Product Weight (lb.) | 10.58 lb |
| Returnable | 90-Day |
| Type | Safety Switch |
| Voltage (V) | 240 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | One year warranty from first use |
| Product Depth (in.) | 7.88 in |
| Product Height (in.) | 13.86 in |
| Product Width (in.) | 8.75 in |
