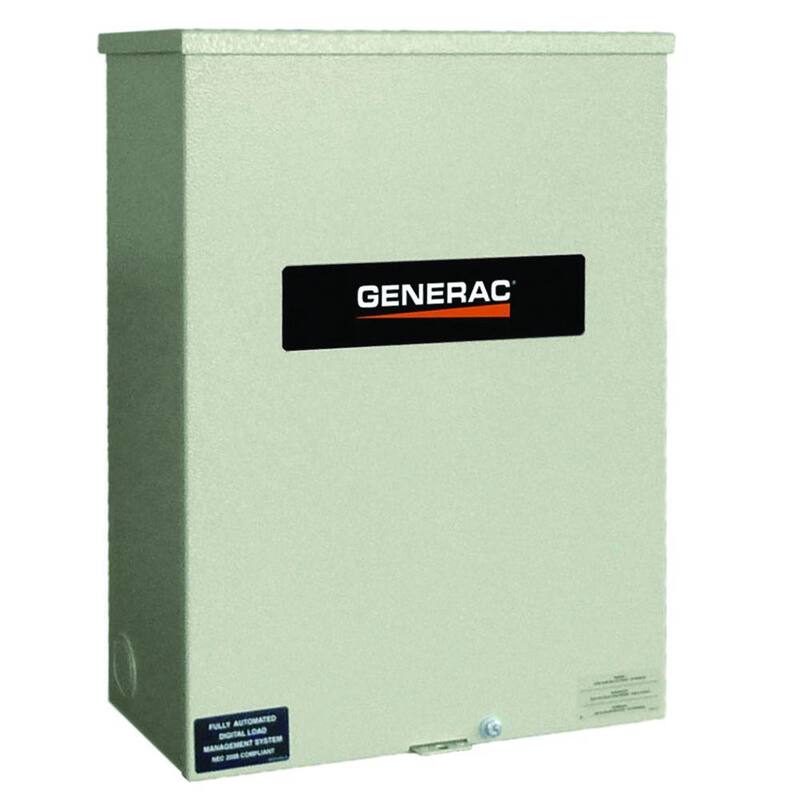

Generac Automatic Transfer Switches are designed for use with single phase generators that utilize an Evolution or Nexus Controller. The 100 Amp open transition switch is available in single phase with a service equipment rated configurations. Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware.
| Automatic/Manual | Automatic |
|---|---|
| Electrical Product Type | Transfer Switch |
| Features | No Additional Features |
| Fused | Non-Fused |
| Maximum Amperage (A) | 100 |
| Maximum Wattage (W) | 10000 W |
| Number of Circuits | 0 |
| Phase Type | 1 Phase |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 20 lb |
| Returnable | 90-Day |
| Voltage (V) | 120/240 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 5 year limited warranty |
| Product Depth (in.) | 7.09 in |
| Product Height (in.) | 17.24 in |
| Product Width (in.) | 12.5 in |
