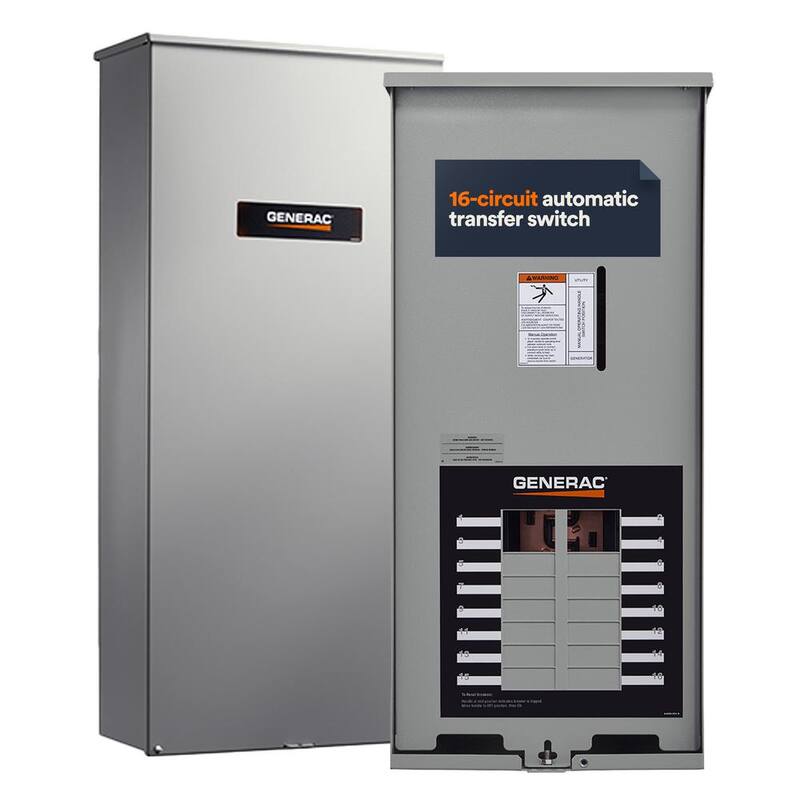

This Generac automatic transfer switch is designed to operate with air-cooled generators. It has an integrated load center to allow for essential circuit back up. If is especially useful where the main service is large and only a portion of the building will be served by the generator or when the main electrical breaker panel is located outdoors. Comes standard with 16-circuit breaker panel that can be populated with the appropriately sized breakers needed for application.
| Automatic/Manual | Automatic |
|---|---|
| Electrical Product Type | Transfer Switch |
| Features | Mountable |
| Fused | Non-Fused |
| Maximum Amperage (A) | 100 |
| Maximum Wattage (W) | 10000 W |
| Number of Circuits | 8 |
| Phase Type | 1 Phase |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 39 lb |
| Returnable | 90-Day |
| Voltage (V) | 120/240 |
| Certifications and Listings | UL Listed,cUL Listed |
| Manufacturer Warranty | 2 year |
| Product Depth (in.) | 6.91 in |
| Product Height (in.) | 30.1 in |
| Product Width (in.) | 13.5 in |
