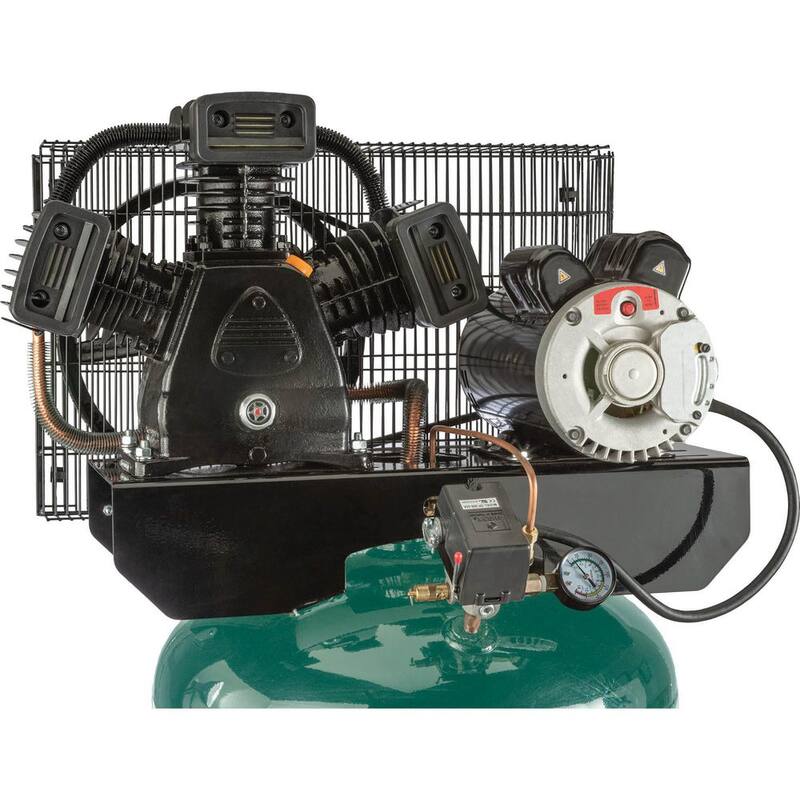

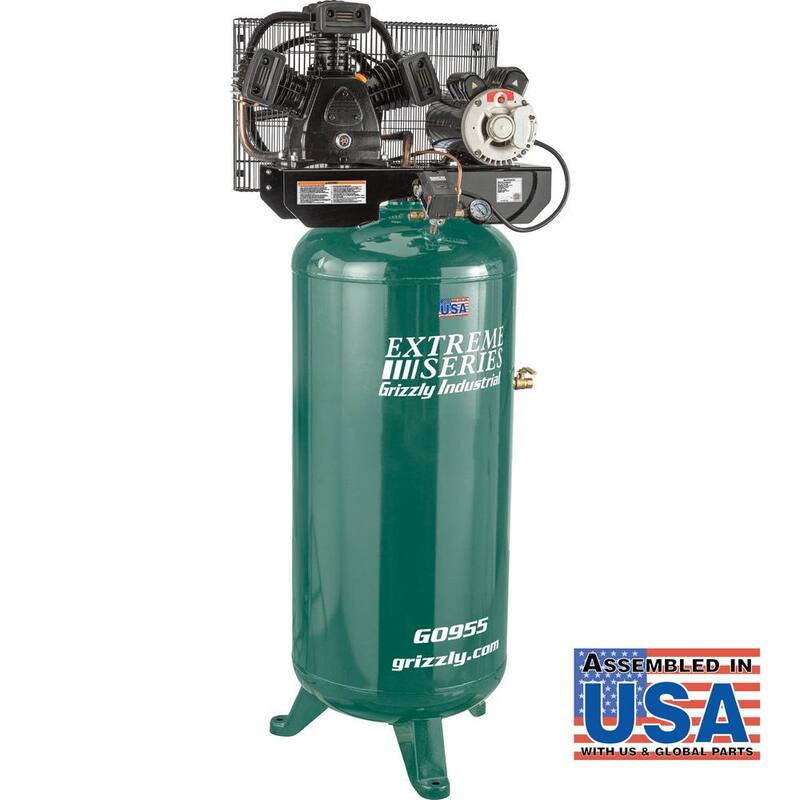

The Grizzly G0955 60 Gal. 5 HP Extreme Series Compressor operates at low RPMs for extended life and low maintenance.The 5 HP 230V motor operates with a maximum pressure of 125 psi This compressor delivers 18 CFM at 90 psi and 20 CFM at 40 PSI. Providing more complete motor overload protection than a magnetic starter that only senses current, the motor senses both temperature and current. A wired-formed belt guard provides more efficient cooling to keep the unit from overheating. The 60 Gal. vertical air tank has been ASME certified to meet safety and quality standards. The 1-stage cast-iron oil-lubricated pump operates at high pressure providing increased volume when you need it. Additional features include a tank pressure gauge, on/off switch, 1/2" NPT threaded fitting, and an easily accessible oil level sight glass.Like all Grizzly air compressors, the G0955 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.SPECIFICATIONS:Motor: 5 HP, 230V, single-phase, 22. 5AAirflow capacity: 18 CFM at 90 psi and 20 CFM at 40 PSI; Maximum air pressure: 125 PSI; Overall size: 30 in. W x 22 in. D x 68 in. H; Approximate shipping weight: 345 lbs.Power cord not included.
| Air Delivery SCFM @ 40PSI | 20 |
|---|---|
| Air Delivery SCFM @ 90PSI | 18 |
| Amperage (A) | 22.5 A |
| Application Use | Grinding |
| Battery Amp Hours | No Battery |
| Charger Included | Charger Not Included |
| Compressor Tank Capacity (gal.) | 60 gal |
| Compressor Type | Garage |
| Compressor Volume Rating | Quiet |
| Compressor/Air Tool Features | No Additional Features |
| Condition | New |
| Decibel Rating (Outdoor) | 81 dBA |
| Horsepower (hp) | 5 |
| Included | No additional components or accessories are included |
| Lubrication Type | Oil |
| Maximum Pressure (PSI) | 125 PSI |
| Number of Total Batteries Included | 0 |
| Phase Type | 1 Phase |
| Portable | No |
| Power Source | Electric |
| Power Type | Corded Electric |
| Product Weight (lb.) | 345 lb |
| Reconditioned | No |
| Returnable | 30-Day |
| Stage Count | Single Stage |
| Tank Material | Cast Iron |
| Tank Style | Vertical |
| Tools Product Type | Air Compressor |
| Voltage (V) | 230v |
| Certifications and Listings | ASME Certified |
| Manufacturer Warranty | 1 Year |
| Product Depth (in.) | 22 in |
| Product Height (in.) | 68 in |
| Product Width (in.) | 30 in |
