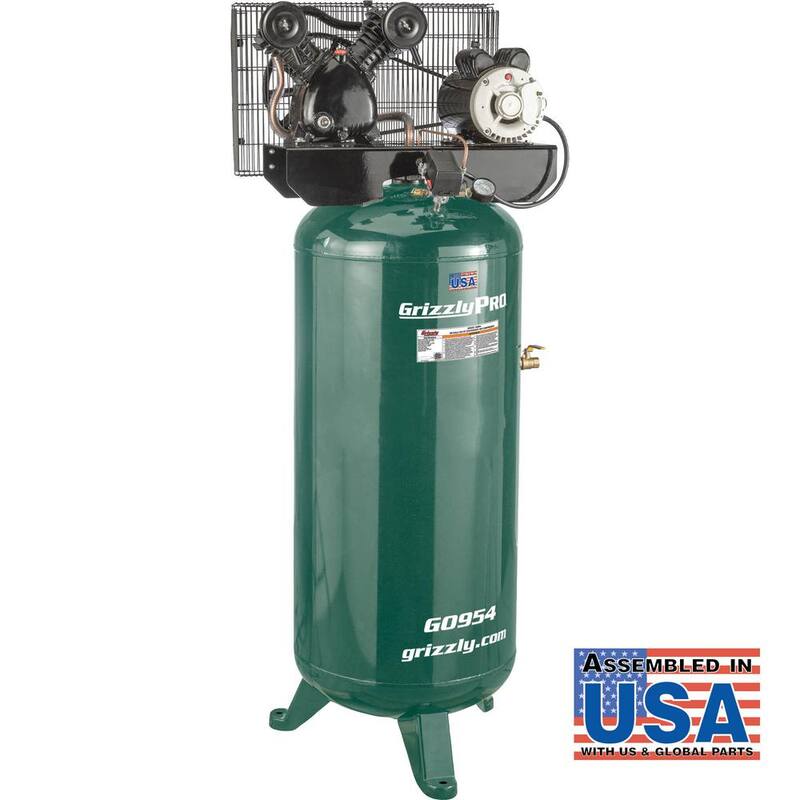

The Grizzly PRO G0954 60 Gal. 3 HP Stationary Air Compressor will be a welcomed addition to your garage or shop. The 3 HP 220-Volt motor operates with a maximum pressure of 125 psi. This compressor delivers 10.2 CFM at 90 psi and 12 CFM at 40 psi. If the motor overheats for any reason, the thermal overload protector will shut it off. The 60 Gal. vertical air tank has been ASME certified to meet safety and quality standards. The low maintenance, heavy-duty cast-iron, oil-lubricated pump compresses is designed for long-life. The G0954 features a tank pressure gauge to measure reserve air pressure while the output pressure gauge indicates the air pressure available at the outlet side of the regulator. The air pressure regulator enables you to adjust the line pressure based on the needs of your tool being used. It comes with a 1/2 in. NPT threaded fitting. SPECIFICATIONS: Motor: 3 HP, 220-Volt, single-phase, 15 Amp Airflow capacity: 10.2 CFM at 90 psi and 12 CFM at 40 psi Maximum air pressure: 125 psi Overall size: 30 in. W x 22 in. D x 66-1/2 in. HApproximate shipping weight: 325 lbs.
| Air Delivery SCFM @ 40PSI | 12 |
|---|---|
| Air Delivery SCFM @ 90PSI | 10.2 |
| Amperage (A) | 15 A |
| Application Use | Brad Nailing,Stapling |
| Battery Amp Hours | No Battery |
| Charger Included | Charger Not Included |
| Compressor Tank Capacity (gal.) | 60 gal |
| Compressor Type | Garage |
| Compressor Volume Rating | Quiet |
| Compressor/Air Tool Features | No Additional Features |
| Condition | New |
| Decibel Rating (Outdoor) | 78 dBA |
| Horsepower (hp) | 3 hp |
| Included | No additional components or accessories are included |
| Lubrication Type | Oil |
| Maximum Pressure (PSI) | 125 PSI |
| Number of Total Batteries Included | 0 |
| Phase Type | 1 Phase |
| Portable | No |
| Power Source | Electric |
| Power Type | Corded Electric |
| Product Weight (lb.) | 305 lb |
| Reconditioned | No |
| Returnable | 30-Day |
| Stage Count | Single Stage |
| Tank Material | Cast Iron |
| Tank Style | Vertical |
| Tools Product Type | Air Compressor |
| Voltage (V) | 220v |
| Certifications and Listings | ASME Certified |
| Manufacturer Warranty | 1 Year |
| Product Depth (in.) | 22 in |
| Product Height (in.) | 66.5 in |
| Product Width (in.) | 30 in |
