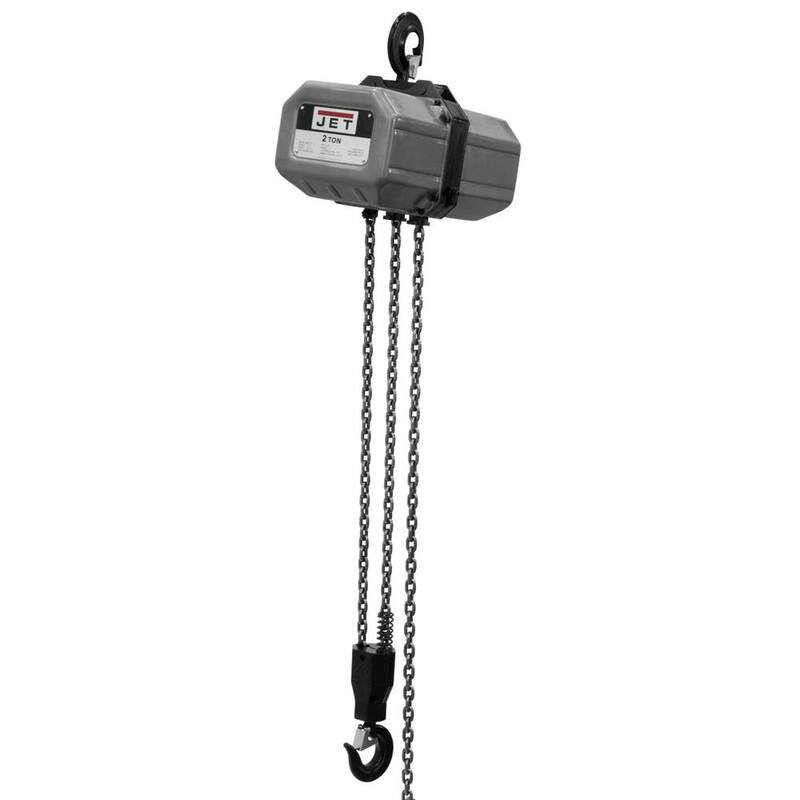

Jet SSC Series electric hoists combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or 3-phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the 3-phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The Jet SSC series electric hoist is available in 1/2-Ton to 5-Ton capacities with standard lifts of 10 ft., 15 ft., and 20 ft. (custom lifts available).
| Amperage (A) | 13 A |
|---|---|
| Color Family | Gray |
| Features | No Additional Features |
| Full load lifting speed (ft./min.) | 12 |
| Full load lowering speed (ft./min.) | 12 |
| General Part Type | Shop Tools |
| Horsepower (hp) | 2-1/7 hp |
| Ideally Used For | Heavy-Duty,Racing,Shop Cranes |
| Included | Chain |
| Material | Steel |
| Maximum Lift Height (in.) | 20 in |
| Motor phase | Three Phase |
| Mount type | Hook mount |
| Product Weight (lb.) | 177 lb |
| Reconditioned | No |
| Returnable | 90-Day |
| Voltage (V) | 460 V |
| Weight Capacity (lb.) | 4000 lb |
| Certifications and Listings | ANSI Compliant,ASME Code B30.16,OSHA Compliant |
| Manufacturer Warranty | 2 Year |
| Control cord length (ft.) | 0 |
| Pendant drop (ft.) | 0 |
| Product Depth (in.) | 22.5 in |
| Product Height (in.) | 14.8 in |
| Product Width (in.) | 22.2 in |
