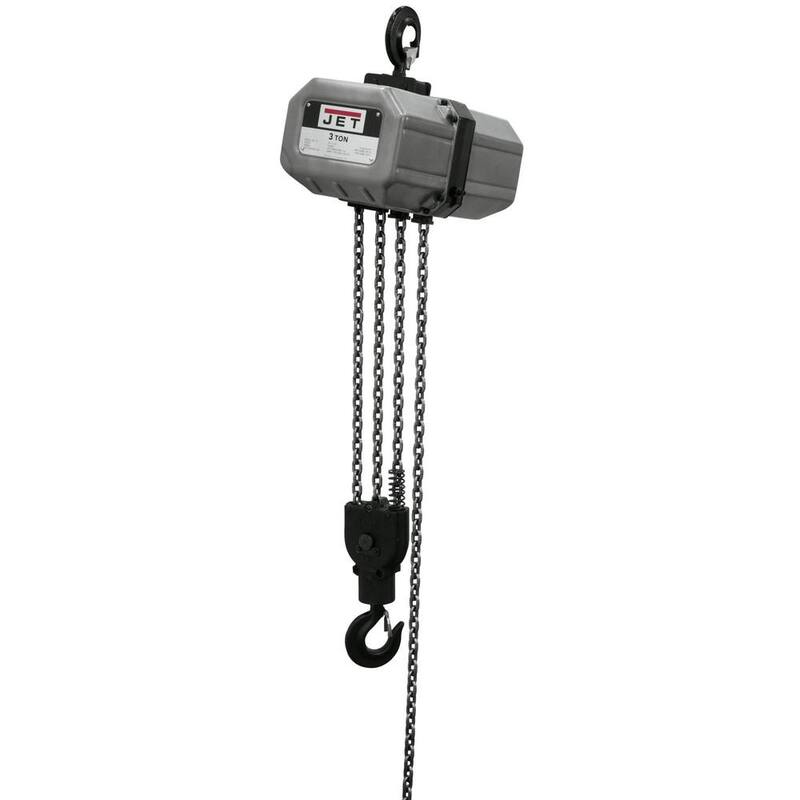

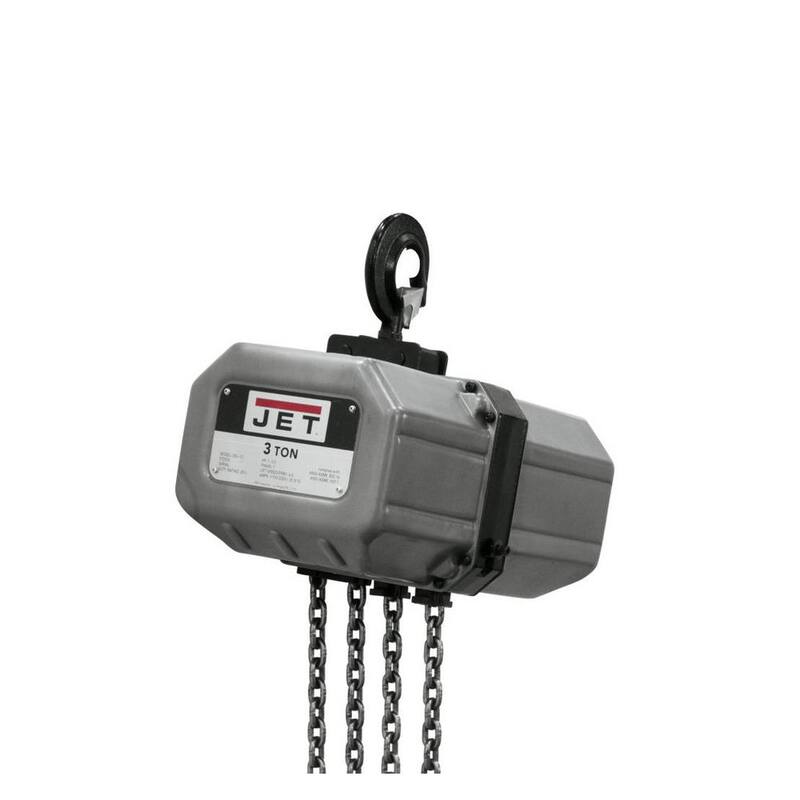

JET SSC Series electric hoists combine safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET SSC series electric hoist is available in 1/2-ton to 5 ton capacities with standard lifts of 10, 15 and 20 ft.
| Amperage (A) | 20.8 A |
|---|---|
| Color Family | Gray |
| Features | Adjustable Limit Switches,Magnetic Disc Brakes,Overload Limiting Clutch,Swivel Load Hook |
| Full load lifting speed (ft./min.) | 6.6 |
| Full load lowering speed (ft./min.) | 6.6 |
| General Part Type | Shop Tools |
| Horsepower (hp) | 1.75 hp |
| Ideally Used For | General Automotive,Heavy-Duty,Shop Cranes |
| Included | Chain |
| Material | Metal |
| Maximum Lift Height (in.) | 240 in |
| Motor phase | Single Phase |
| Mount type | Hook mount |
| Product Weight (lb.) | 227 lb |
| Reconditioned | No |
| Returnable | 90-Day |
| Voltage (V) | 115 V |
| Weight Capacity (lb.) | 6000 lb |
| Certifications and Listings | ANSI Certified,OSHA Certified |
| Manufacturer Warranty | 2 year |
| Control cord length (ft.) | 18 |
| Pendant drop (ft.) | 20 |
| Product Depth (in.) | 31.5 in |
| Product Height (in.) | 11 in |
| Product Width (in.) | 20.43 in |
