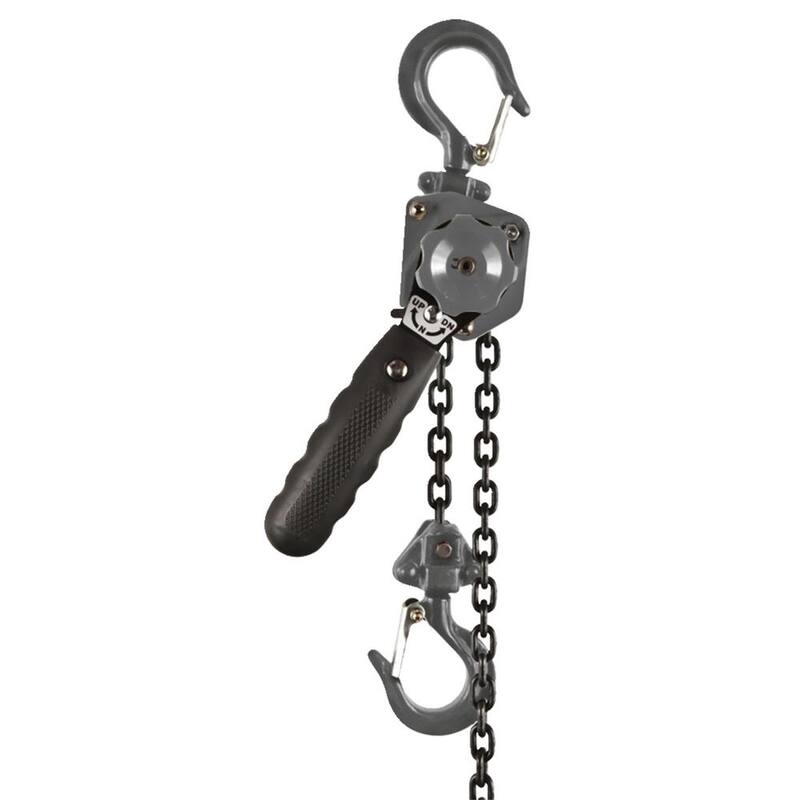

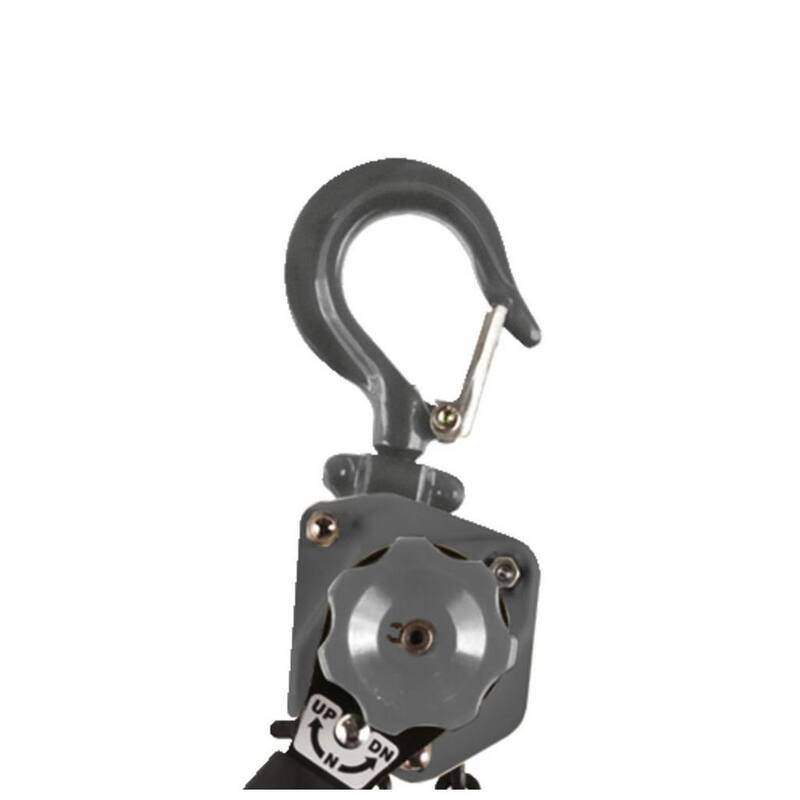

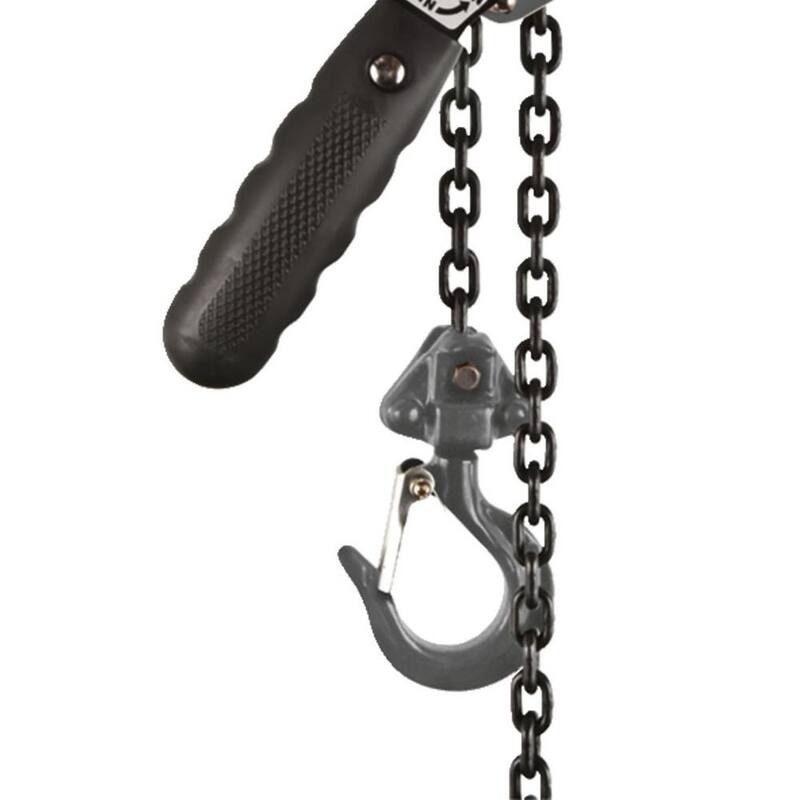

Jet JLP-A Series lever hoists combine safety, reliability and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. Jet also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The Jet JLP-A lever hoist is available in ton to 6-Ton capacities with standard lifts of 5 ft., 10 ft., 15 ft. and 20 ft. (custom lifts available). The Jet JLP-A Series is the perfect choice for a contractor grade lever hoist.
| Chain overhauled to lift load one foot (ft.) | 3 |
|---|---|
| Chain pull to lift rated load (lb.) | 60 |
| Color Family | Gray |
| Features | Swivel Load Hook |
| General Part Type | Shop Tools |
| Included | Chain |
| Manual Chain Hoist Type | Lever |
| Material | Steel |
| Maximum Lift Height (in.) | 120 in |
| Mount type | Hook mount |
| Number of chain strands | 2 |
| Product Weight (lb.) | 8.62 lb |
| Reconditioned | No |
| Returnable | 90-Day |
| Spark-resistant chain | No |
| Weight Capacity (lb.) | 1000 lb |
| Certifications and Listings | ANSI Compliant,ASME Code B30.16 |
| Manufacturer Warranty | Lifetime |
| Chain fall drop (ft.) | 1 |
| Product Depth (in.) | 13.48 in |
| Product Height (in.) | 2.68 in |
| Product Width (in.) | 3.74 in |
