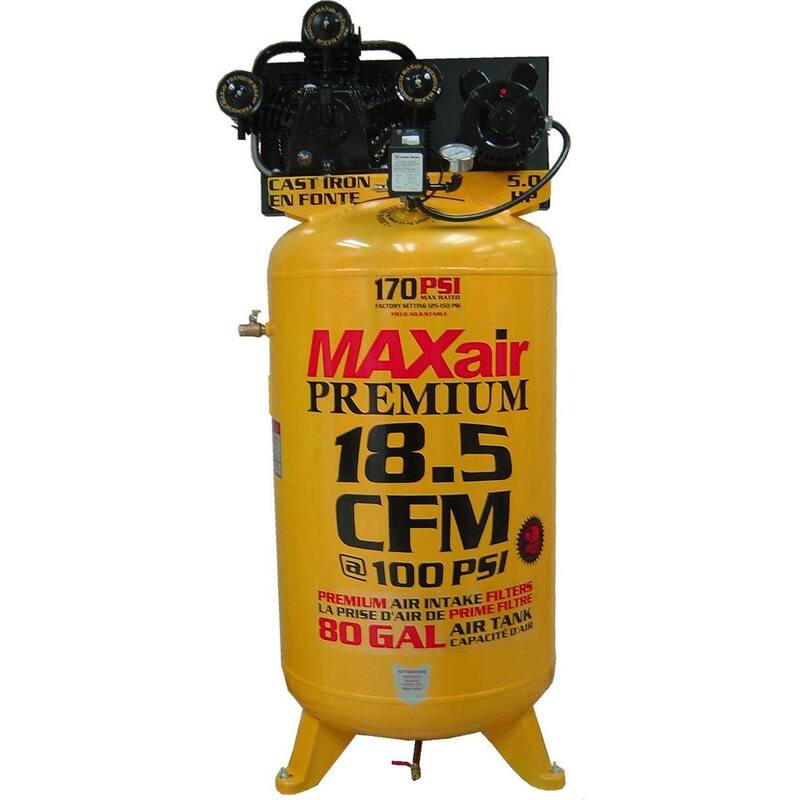

The Maxair Premium Industrial compressor has a 5 HP Electric Single Stage 220-Volt motor. It also boasts an 80-Gal. ASME Vertical Tank and a High flow 3 piston cast iron "V" style pump that generates 18.5 CFM at 100 PSI and max 170 PSI. This compressor is equipped with high efficiency reed valves for longer life, all metal belt guard for maximum cooling, liquid filled non vibrating pressure gauge for easy read, Auto Drop premium air filters.
| Air Delivery SCFM @ 40PSI | 22.2 |
|---|---|
| Air Delivery SCFM @ 90PSI | 19.3 |
| Amperage (A) | 23 A |
| Application Use | Bolting,Cutting,Drilling,HVLP Painting,Sanding,Spraying,Wrenching |
| Battery Amp Hours | No Battery |
| Charger Included | Charger Not Included |
| Compressor Tank Capacity (gal.) | 80 gal |
| Compressor Type | Industrial |
| Compressor Volume Rating | Not Measured |
| Compressor/Air Tool Features | Tank Pressure Gauge |
| Condition | New |
| Decibel Rating (Outdoor) | Not Measured |
| Horsepower (hp) | 5 hp |
| Included | No additional components or accessories are included |
| Lubrication Type | Oil |
| Maximum Pressure (PSI) | 170 PSI |
| Number of Total Batteries Included | 0 |
| Phase Type | 1 Phase |
| Portable | No |
| Power Source | Electric |
| Power Type | Corded Electric |
| Product Weight (lb.) | 480 lb |
| Reconditioned | No |
| Returnable | 90-Day |
| Stage Count | Single Stage |
| Tank Material | Steel |
| Tank Style | Vertical |
| Tools Product Type | Air Compressor |
| Voltage (V) | 208/230v |
| Certifications and Listings | CSA Listed |
| Manufacturer Warranty | 2 Year Limited Warranty (Receipt Requires) |
| Product Depth (in.) | 35 in |
| Product Height (in.) | 68 in |
| Product Width (in.) | 24 in |
