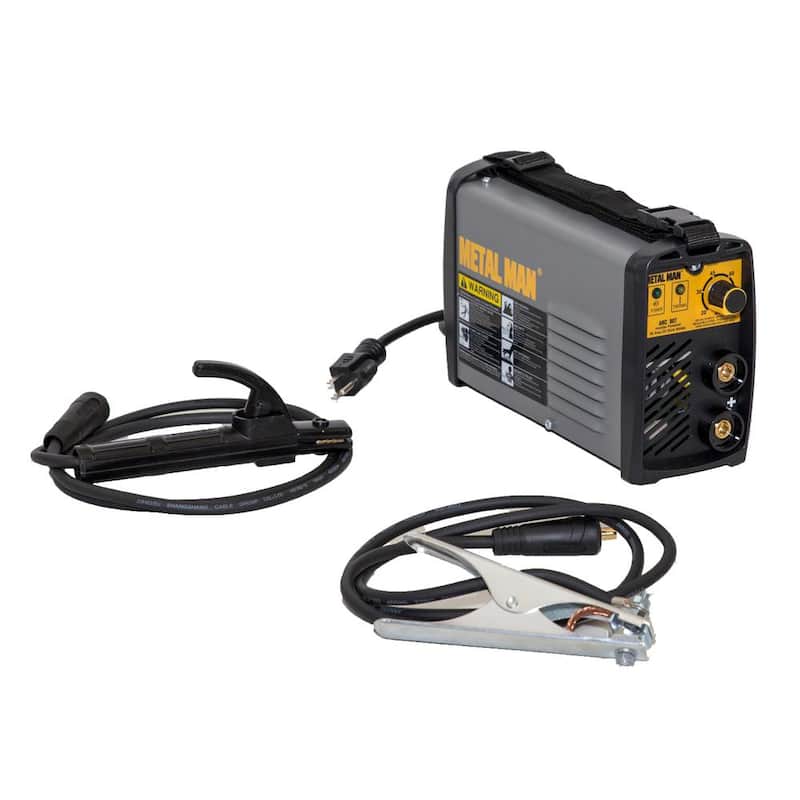

The METAL MAN Arc 80T is a DC only inverter stick welder with an exceptionally smooth stick welding performance in an extremely small package. It is intended for use for welding steel, stainless steel, cast iron and hard surfacing, using electrodes from 1/16 in. to 3/32 in. The Arc 80T is super portable allowing the operator the flexibility to use this welder for mobile and outdoor applications. This unit is equipped with a cooling fan and thermal overload protection. Quick connect weld cable connections make set up and tear down quick and easy. This unit is intended to be used on a 20 Amp, 120-Volt AC circuit without the use of an extension cord. If an extension cord is necessary for your application, use the appropriate size and length of extension cord that will handle 20 Amp the entire length of the extension. We highly recommend talking with a qualified electrician for cord size recommendations.
| Duty Cycle (%) | 40 |
|---|---|
| Engine Power | Electric (AC) |
| Hertz (Hz) | 50/60Hz |
| Included | Torch |
| Input Power (Volts) | 120 |
| Material Application Thickness (in.) | 0.125 |
| Maximum Rod Size (in.) | .094 |
| Maximum amperage output (amps) | 75 |
| Minimum amperage output (amps) | 20 |
| Minimum welding wire size (in.) | .0625 |
| Process Application Type | DC Stick (SMAW) |
| Rated Output (Volts) | 120 |
| Returnable | 90-Day |
| Welder Type | Stick,TIG |
| Manufacturer Warranty | 1 year |
| Maximum welding wire size (in.) | .094 |
| Product Depth (in.) | 12.375 in |
| Product Height (in.) | 7 in |
| Product Width (in.) | 4.25 in |
