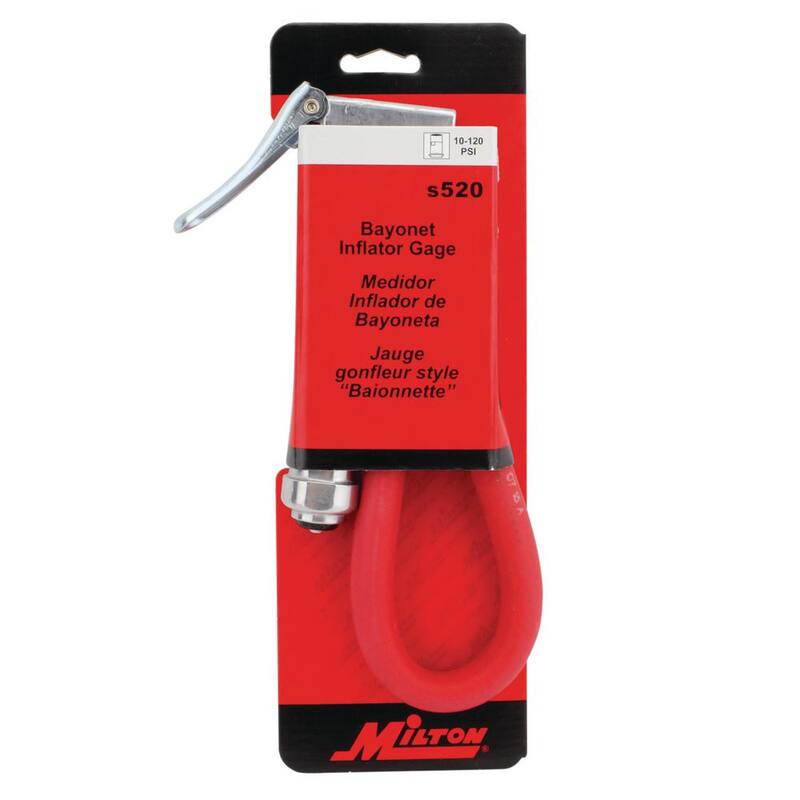

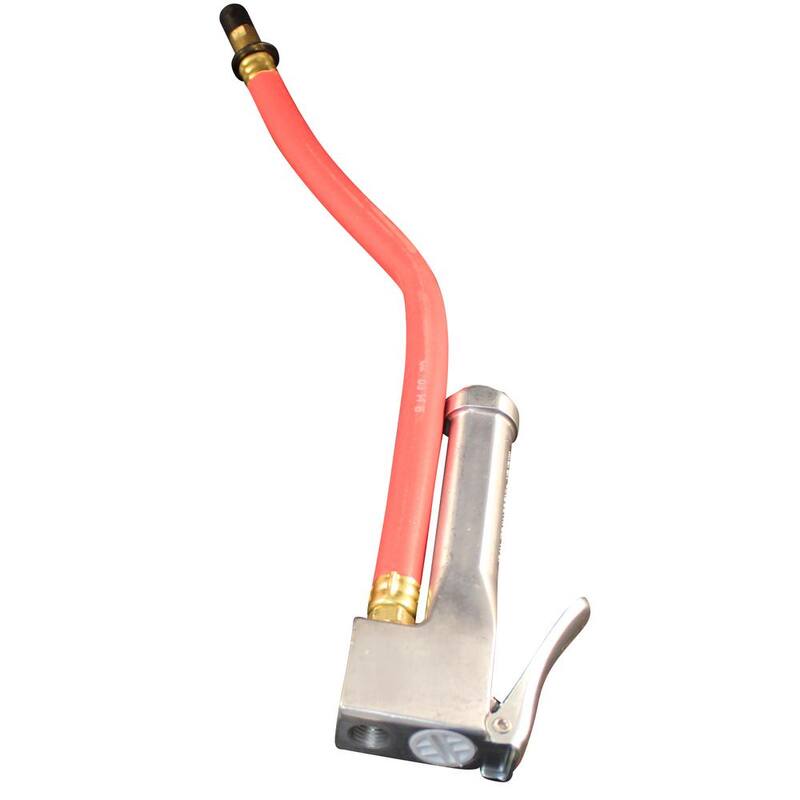

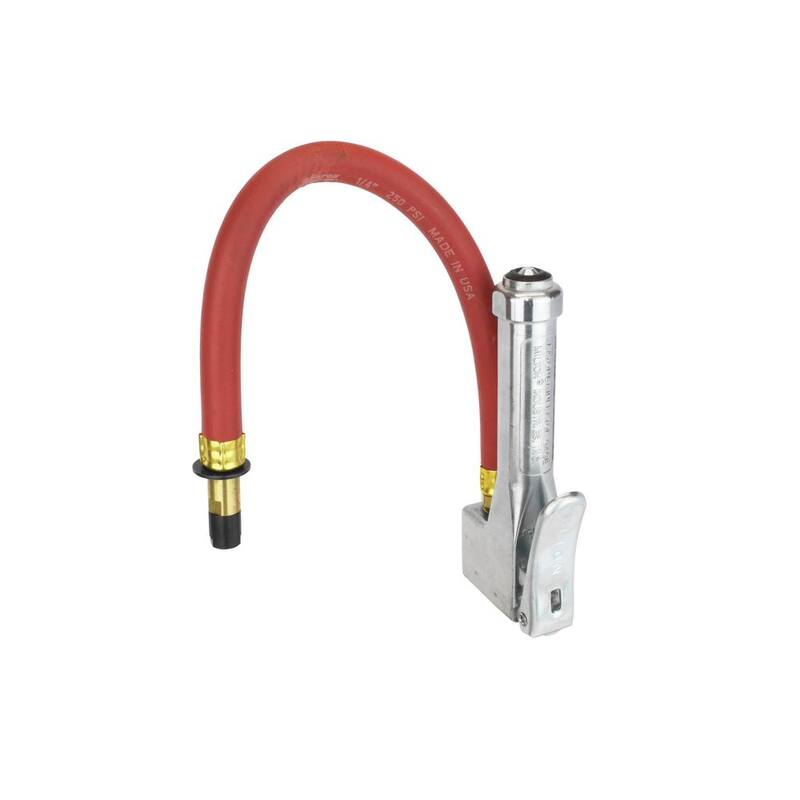

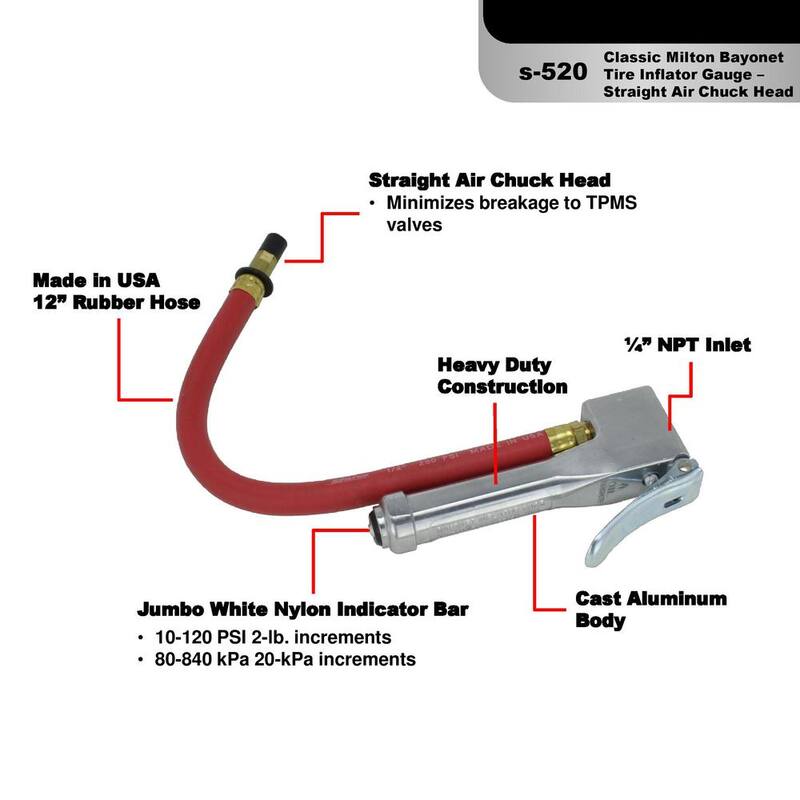

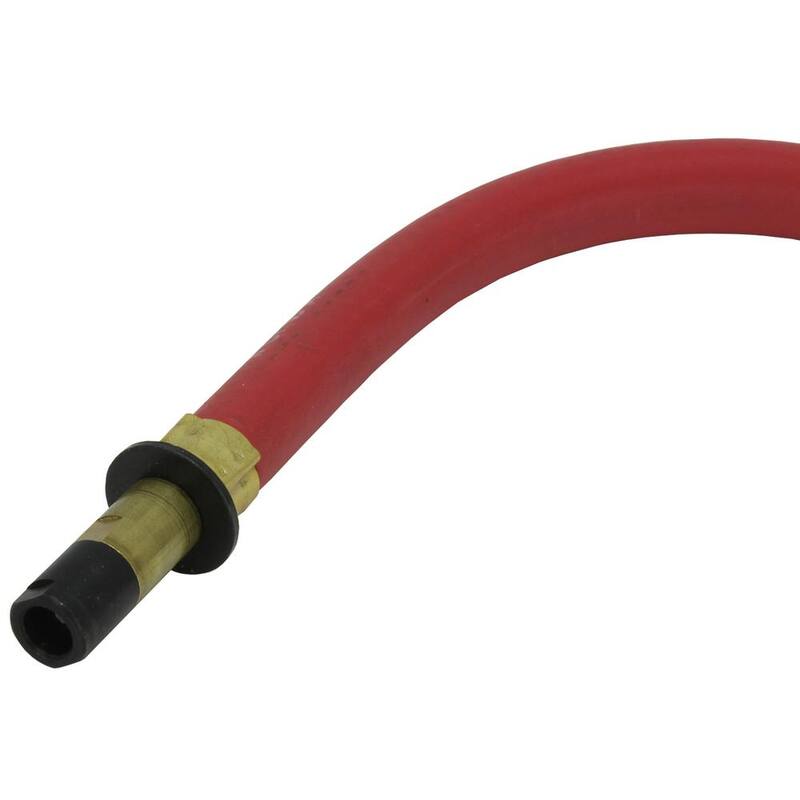

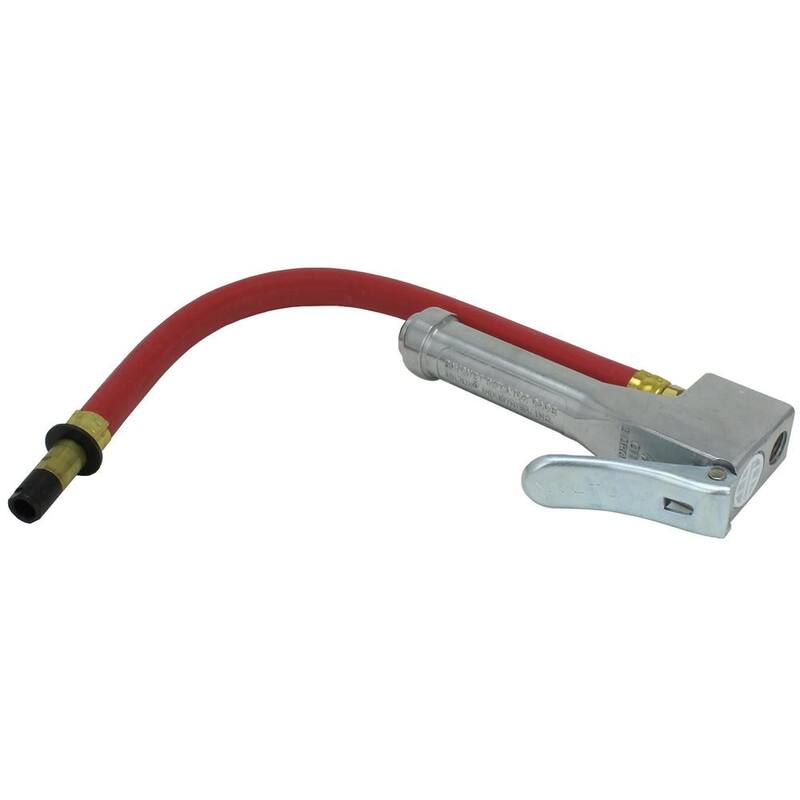

Milton (S-520) Bayonet Tire Inflator Gauge - Straight Chuck Head, 120 Max PSIMilton's #520 Straight head chuck bayonet gauge has lever action and is made with heavy-duty construction, providing long service life even with constant use. Valve and gauge cartridges are replaceable and combined in one easy unit. Includes a 12" hose with a pressure range that offers 10-120 PSI (2-lb. increments) or 80-840 kPa (20 kPa increments). The air chuck has 1/4" Barb threads. Complete with a jumbo white nylon indicator bar for easy reading.With 1/4" NPT threads, all Milton hose whips are compatible for use and have interchangeable connections with any of the 4 Milton Bayonet Inflator Gauge bodies: #520 (straight chuck head), #521 (single chuck head), #522 (dual truck head chuck), and #523 (grip chuck head to lock onto valve).Recommended Replacement Parts:S-520's replacement air hose whip: Milton #528 (12-inch hose whip w/straight chuck head).S-520's replacement air chuck: Milton #P500-45.Replacement cartridge for #520-523: Milton #525.
| Automotive Part Type |
Tire Pressure Gauge |
| Compressor/Air Tool Features |
No Additional Features |
| Included |
Accessories |
| Power Type |
Air |
| Returnable |
90-Day |
| Tools Included |
No Additional Tools Included |
| Manufacturer Warranty |
1 year warrenty |
| Hose length (in.) |
12 in |
| Product Depth (in.) |
15 in |
| Product Height (in.) |
1 in |
| Product Width (in.) |
2.75 in |
