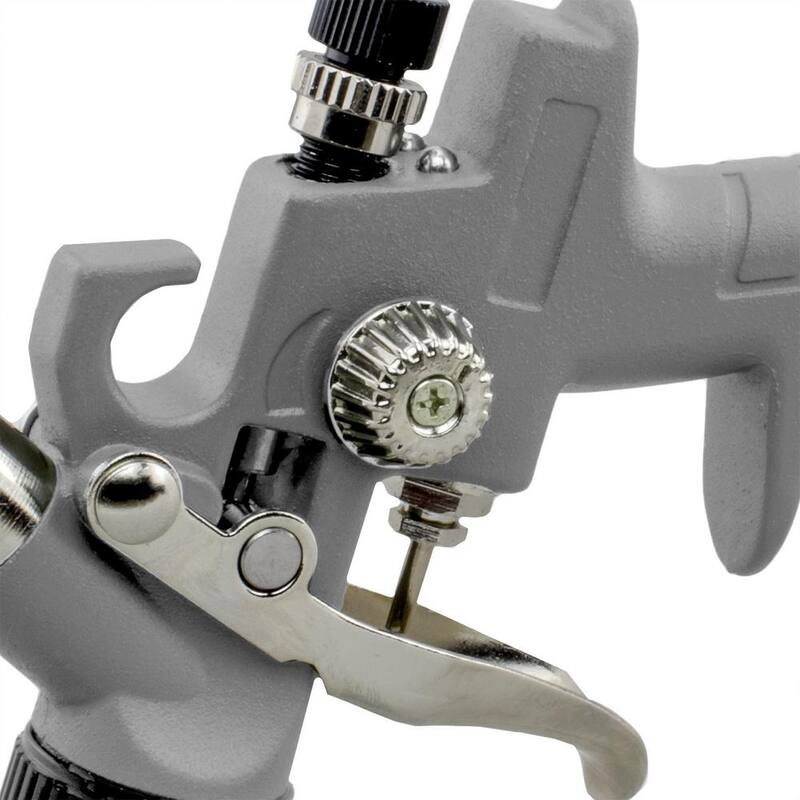

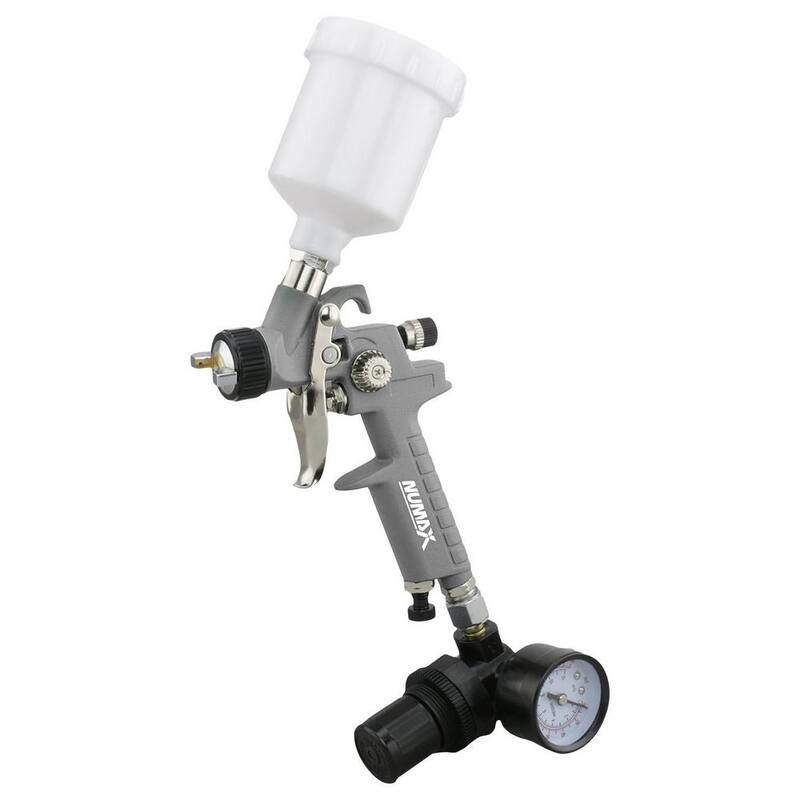

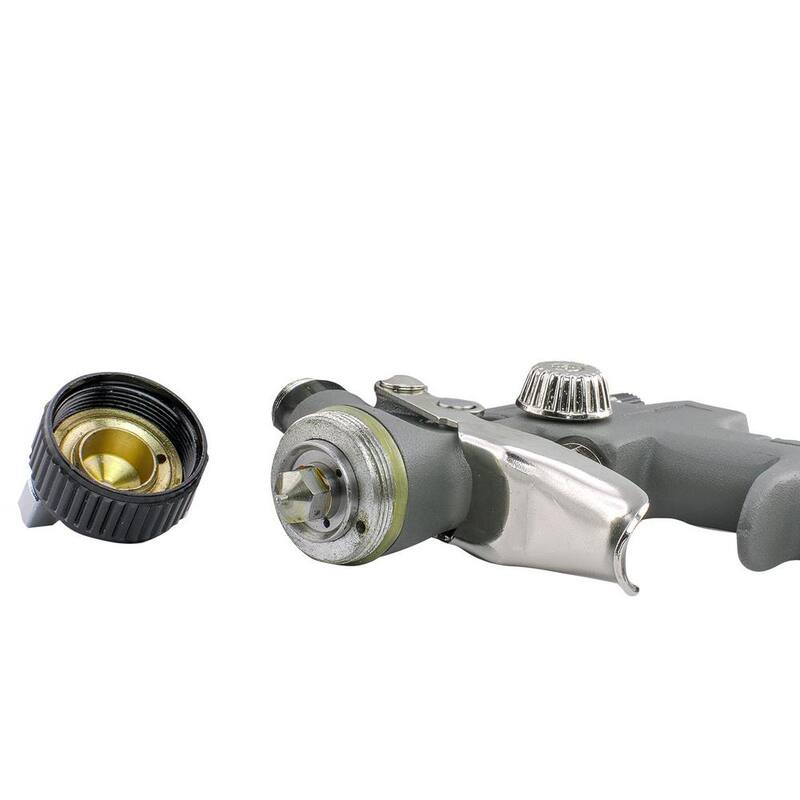

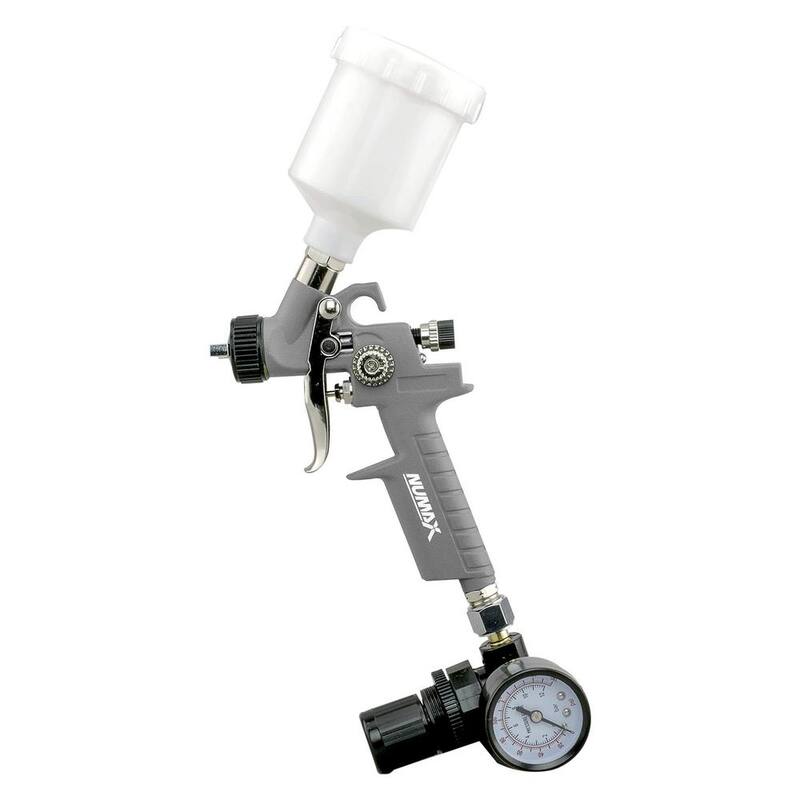

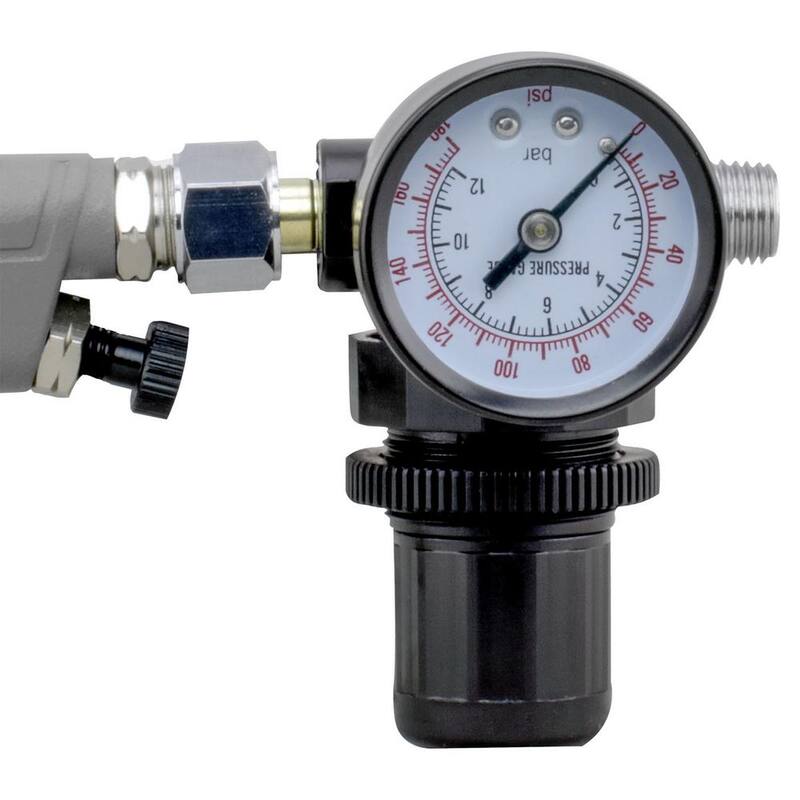

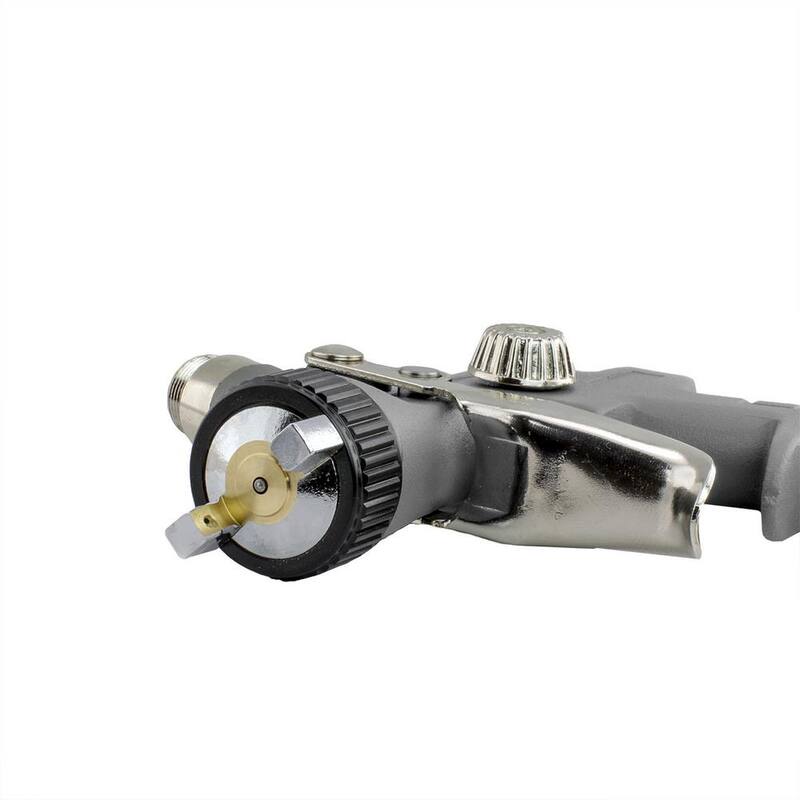

The NuMax SPS08 Pneumatic 0.8 mm Tip Mini HVLP Gravity Feed Spray Gun with 125cc Plastic Cup is perfect for the atomization of paint. Use this air powered paint sprayer for projects such as painting furniture and woodworking, along with automotive and industrial applications. This High Volume Low Pressure spray gun generates high output with improved paint transfer and has less overspray. 3 adjustable control knobs (pattern, fluid and air control) provide versatility with precision. The pattern control knob allows a full or round spray and the fluid control regulates the amount of paint mixed with air. The air control knob is used to increase or decrease the overall air flow. Turning the air cap ring at the end of the nozzle adjusts the direction of the spray fan to vertical or horizontal. The trigger of this spray gun has a 2-step design. Press the trigger to the first step and connect to the air source. Pressing further allows the spray gun to engage the paint in the 125cc (4 oz.) gravity fed cup. The 1-piece ergonomically designed body of this paint sprayer is constructed of aluminum, while the needle and nozzle are made of stainless steel. A regulator and 2 different types of 1/4 in. NPT air connector fittings are included (standard and automotive), along with a cleaning kit and adjustment tool. The Pneumatic 0.8 mm Tip Mini HVLP Gravity Feed Spray Gun with 125cc Plastic Cup will reduce paint costs and is covered by NuMax's 1-year Professional Tool Warranty.
| Accessory Type | Specialty |
|---|---|
| Air Pressure at Paint Cap PSI | 45 |
| Air Tool Type | Paint Sprayer |
| Air consumption at recommended operating pressure (CFM) | 2.5 |
| Applicator/Tool Type | Paint Sprayer |
| Average air consumption @ recommended operating pressure (CFM) | 3.0 |
| Features | Gravity Feed,Ladder Hook |
| Feed type | Gravity |
| Hose Included | No |
| Housing Material | Aluminum |
| Included | Cleaning Kit |
| Interior/Exterior | Exterior,Interior |
| Kit | No |
| Maximum Operating Pressure (PSI) | 55 PSI |
| Number of Spray Settings | 3 |
| Paint Cup Size | 125cc |
| Paint Sprayers Product Type | Pneumatic |
| Performance Features | Adjustable Spray Width,Air Flow Valve,Fan Control Screw,Flow Control,Fluid Control Valve,Low Overspray |
| Project Type | Painting |
| Recommended operating pressure (psi) | 40 |
| Returnable | 90-Day |
| Tool Weight (lb.) | 0.584 lb |
| Tools Product Type | Air Tool |
| Trigger Configuration | One Finger Trigger |
| Type | HVLP Standard |
| Weight, Including Paint Cup (lb.) | 0.683 |
| Manufacturer Warranty | Covered by NuMax's 1 Year Professional Tool Warranty |
| Air Inlet Size (in.) | 1/4 in |
| Fan Size (in.) | 1 to 10 |
| Product Depth (in.) | 2.38 in |
| Product Height (in.) | 9.25 in |
| Product Length (in.) | 4.38 in |
| Product Width (in.) | 2.38 in |
| Tip Size | 0.8mm |
